1、Key Features

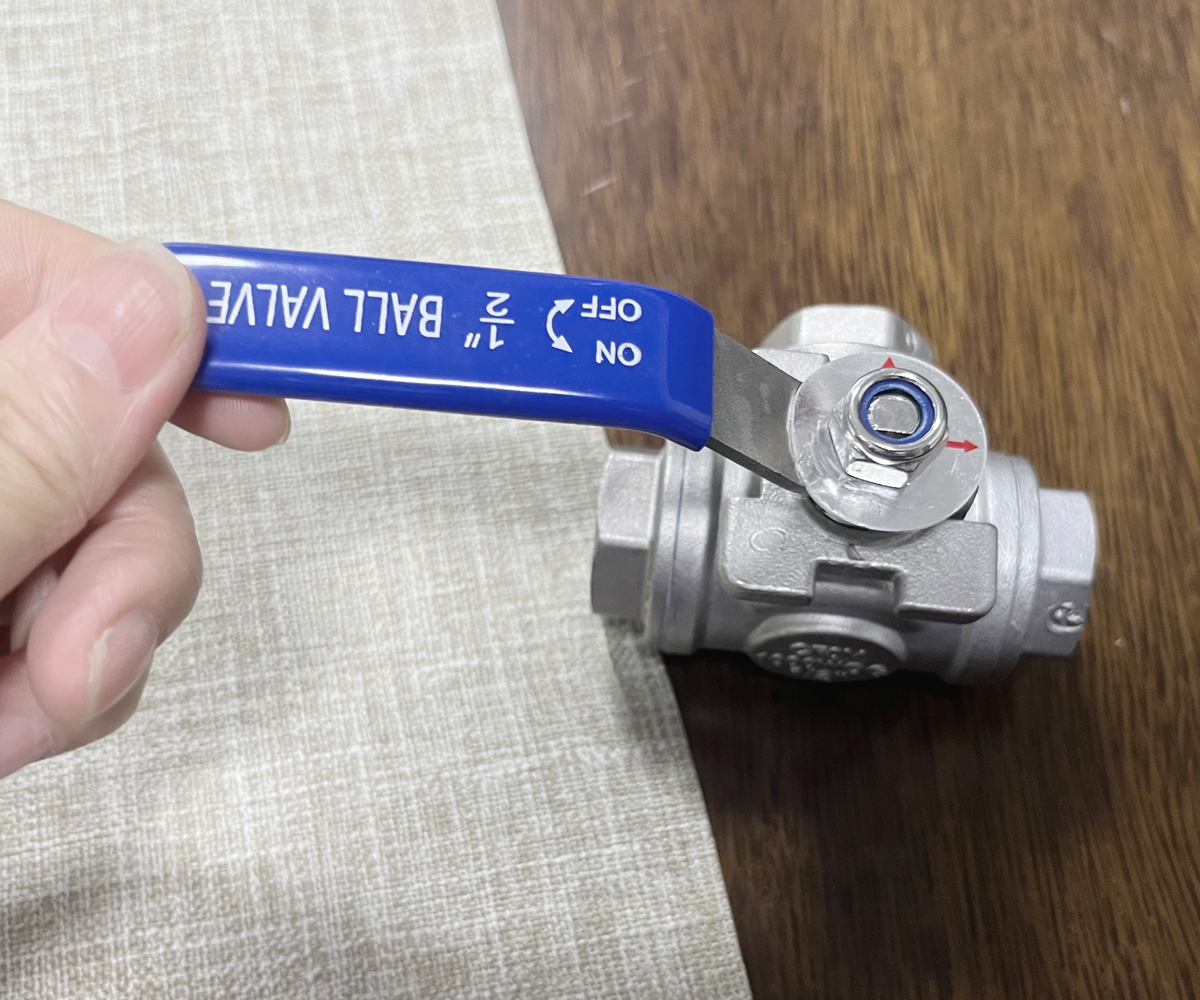

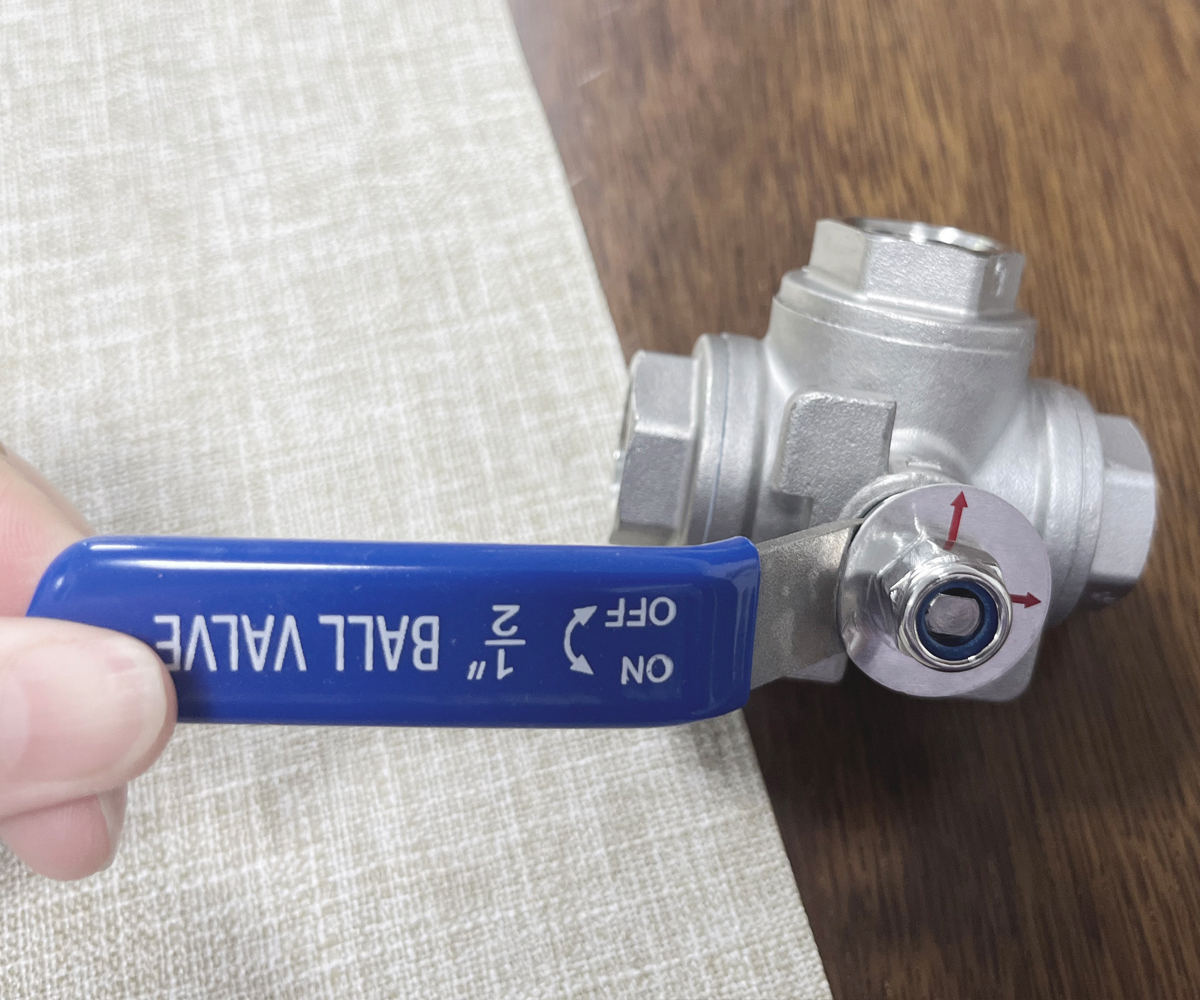

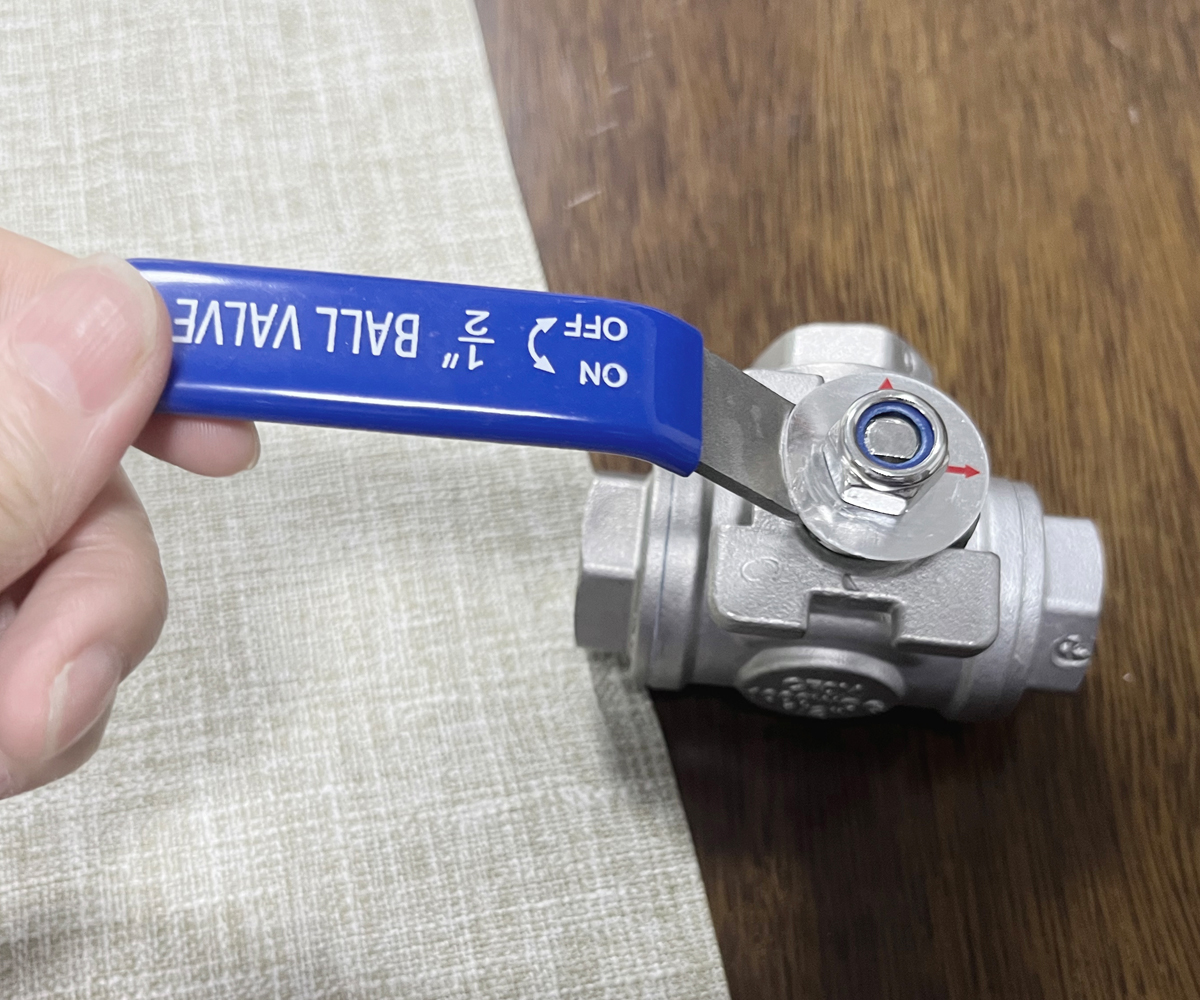

• Three-way (L-port) flow configuration for diversion/mixing
• Internal threaded ends (NPT/BSPP) for compact installations
• Low-torque butterfly handle with visual position indicator
• Double-sealed stem with anti-blowout design
• Full port design for minimal pressure drop
2、Performance Advantages
• 40% faster operation compared to handwheel valves
• Zero-leakage shutoff per ANSI/FCI 70-2 Class VI
• Reduced installation footprint with internal threading
• Interchangeable seats/stems for simplified maintenance
• Fire-safe design per API 607 (optional)
3、Technical Parameters
| PARAMETER | SPECIFICATION |
|---|---|
| Body Material | 304 SS / 316 SS / WCB |
| Pressure Rating | 150 PSI (10.3 BAR) - 600 PSI (41.4 BAR) |
| Port Configuration | L-Port (90° diversion) |
| Thread Standard | NPT / BSPP / BSPT |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Seal Material | Reinforced PTFE / RPTFE |
| Handle Type | Butterfly Lever (Lockable) |
4、Application Scenarios
• Chemical dosing systems in pharmaceutical production
• Coolant flow control in industrial machinery
• Multi-line water treatment distribution
• Compressed air line switching
• HVAC branch circuit control
5、Certifications & Documentation
• ISO 9001:2015 Certified Manufacturing
• SIL 2 Compliance (SIL 3 upon request)
• Material Traceability (EN 10204 3.1 MTR)
• Hydrostatic Test Reports per MSS-SP-110
