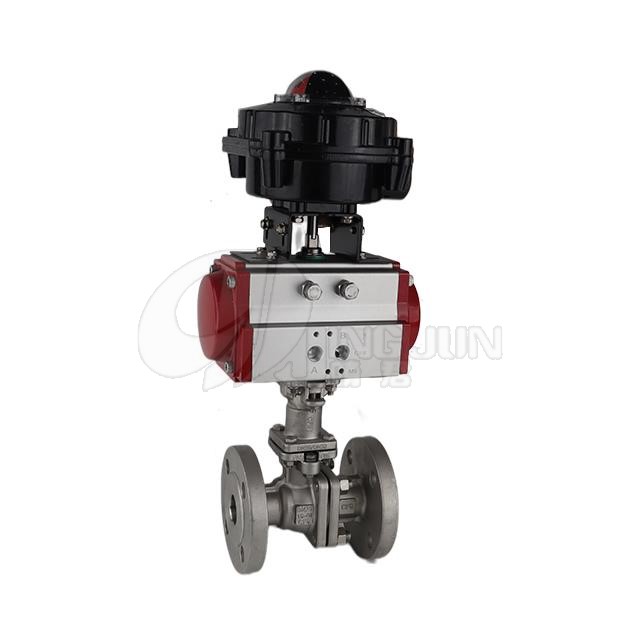

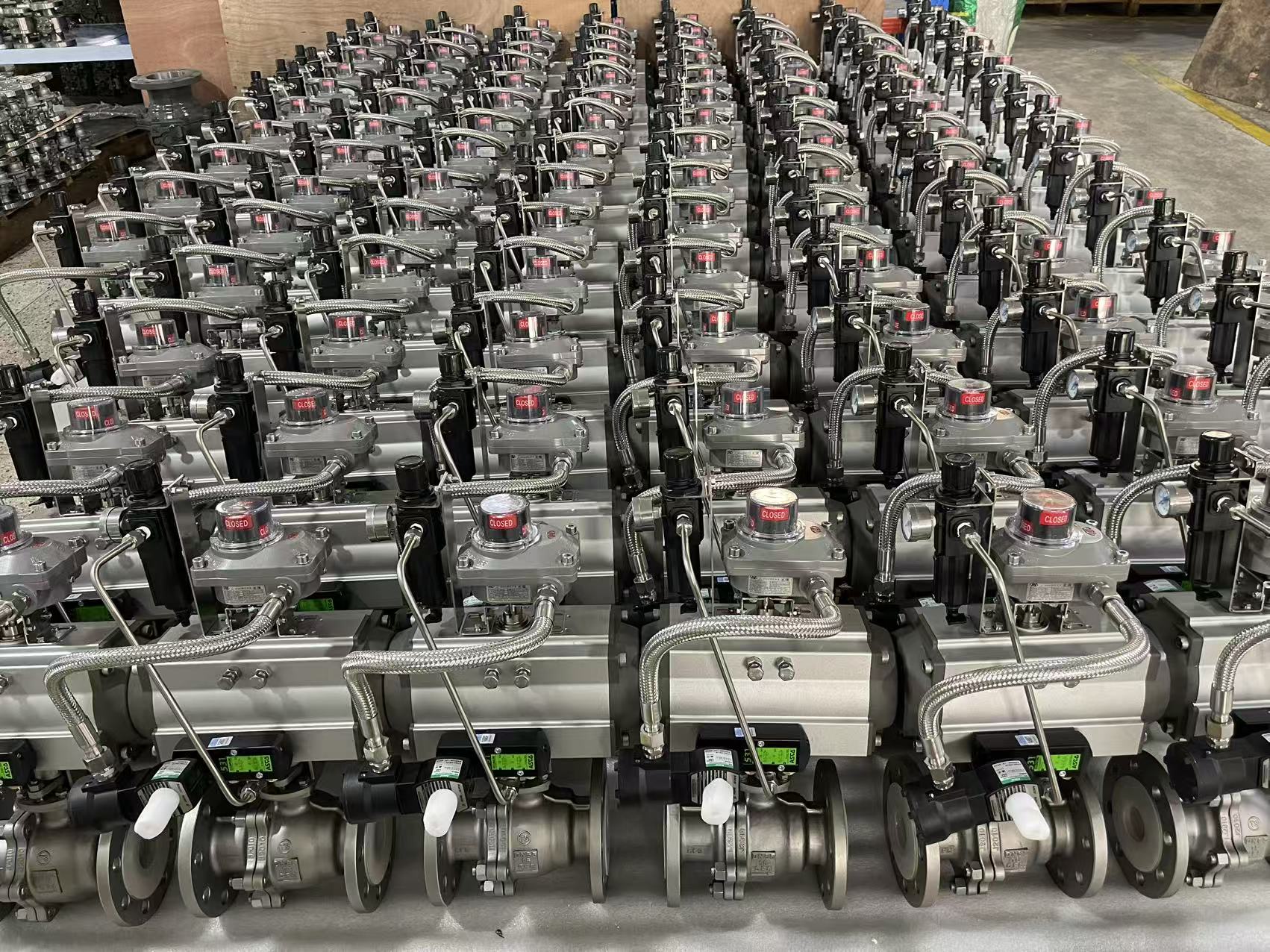

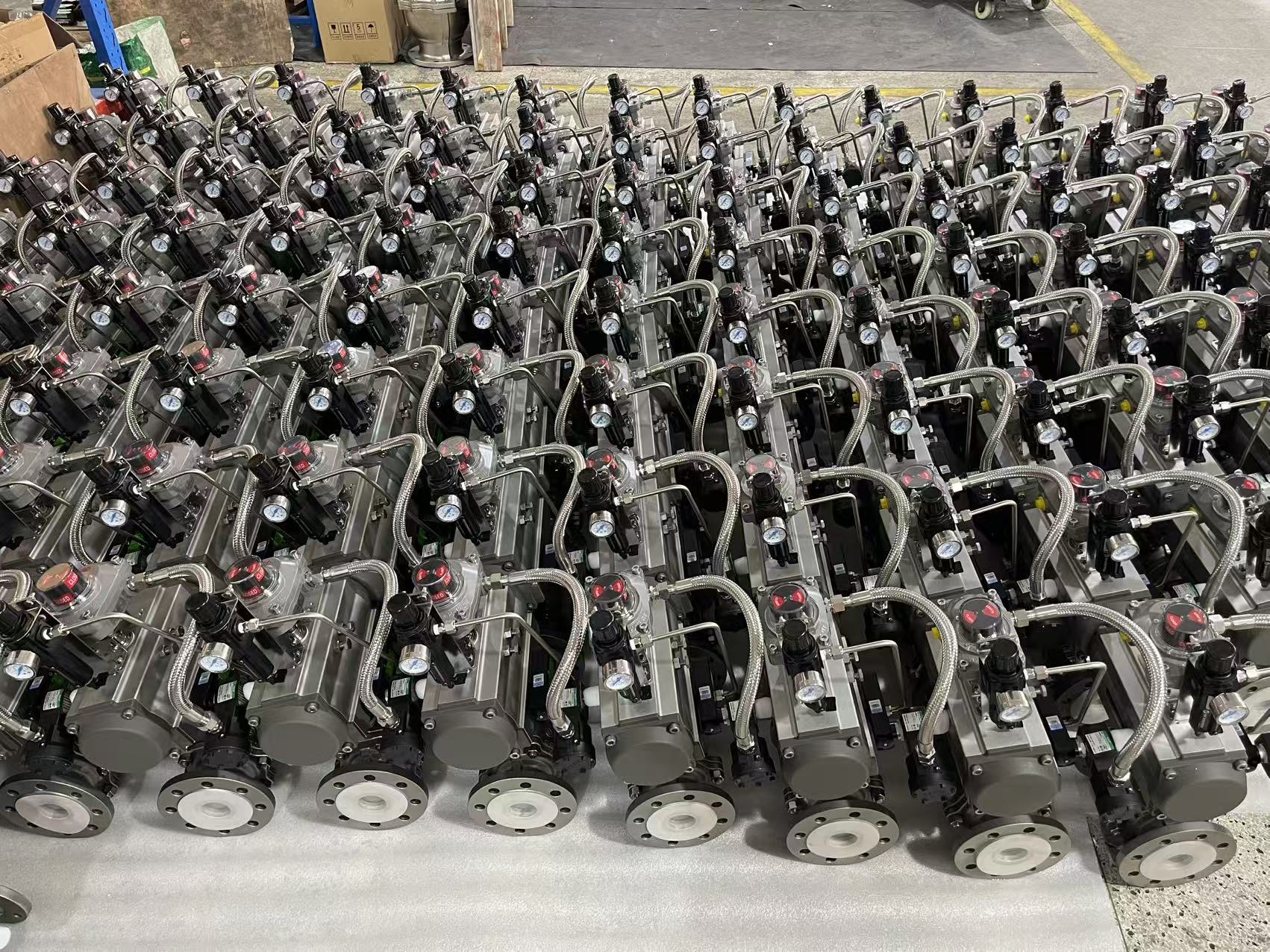

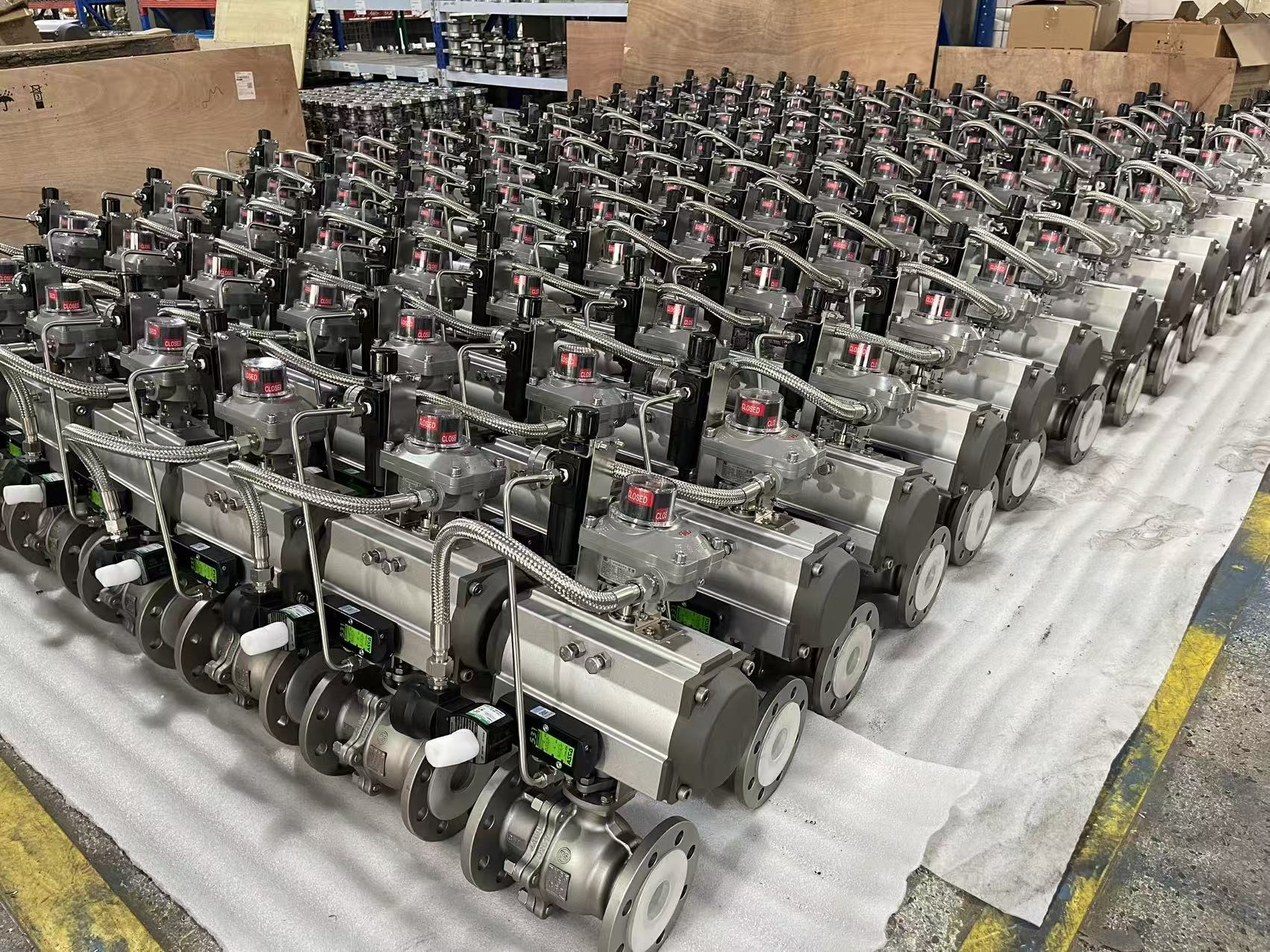

1. Key Features
• High-Platform Cast Bracket: Enhanced structural support for heavy-duty actuators, minimizing stem deflection
• Pneumatic Actuation: Double-acting or spring-return (fail-safe) options, compatible with 4-20mA control signals
• Bubble-Tight Shutoff: PTFE or metal-seated options, meeting ANSI/FCI 70-2 Class VI leakage standards
• Anti-Blowout Stem: Prevents stem ejection under high-pressure conditions
• Fire-Safe Design: Complies with API 607/ISO 10497 (optional fireproof graphite seals)
2. Performance Advantages
• High Pressure & Temperature Resistance: Rated for PN16-PN100 (ANSI 150-600) and temperatures from -29°C to 450°C
• Corrosion Protection: 316 stainless steel trim & optional epoxy coating for harsh environments
• Low Friction & Long Life: Hardened ball (WC coating available) and self-lubricating seats reduce wear
• Quick 90° Operation: Ensures fast response for process control
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | WCB, CF8 (304 SS), CF8M (316 SS) |
| Pressure Rating | PN16-PN100 / ANSI 150-600 |
| Connection Type | RF Flange (ANSI B16.5, DIN EN 1092-1, JIS) |
| Port Type | Full port (FB) or reduced port (RB) |
| Actuator Options | Double-acting / Spring-return (ATEX optional) |
| Operating Pressure | 4-7 bar (standard), up to 10 bar (custom) |
| Flow Coefficient | Kv: 20-500 (varies by size) |
4. Typical Applications
• Oil & Gas: Pipeline shutoff, wellhead control
• Chemical Processing: Acid/alkali handling, reactor feed systems
• Power Plants: Steam isolation, cooling water control
• Water Treatment: High-pressure filtration, pump protection
5. Compliance & Certificates
• ISO 9001:2015 – Quality Management System
• SIL 2/3 – Safety Integrity Level (upon request)
• Face-to-Face Dimensions – ISO 5752 / ASME B16.10
6. Optional Upgrades
• Explosion-Proof Actuator (ATEX, IECEx) for hazardous areas
• Limit Switches & Position Feedback (NAMUR, inductive sensors)
• Extended Stem for insulation or deep burial applications
• Locking Device for manual override security
