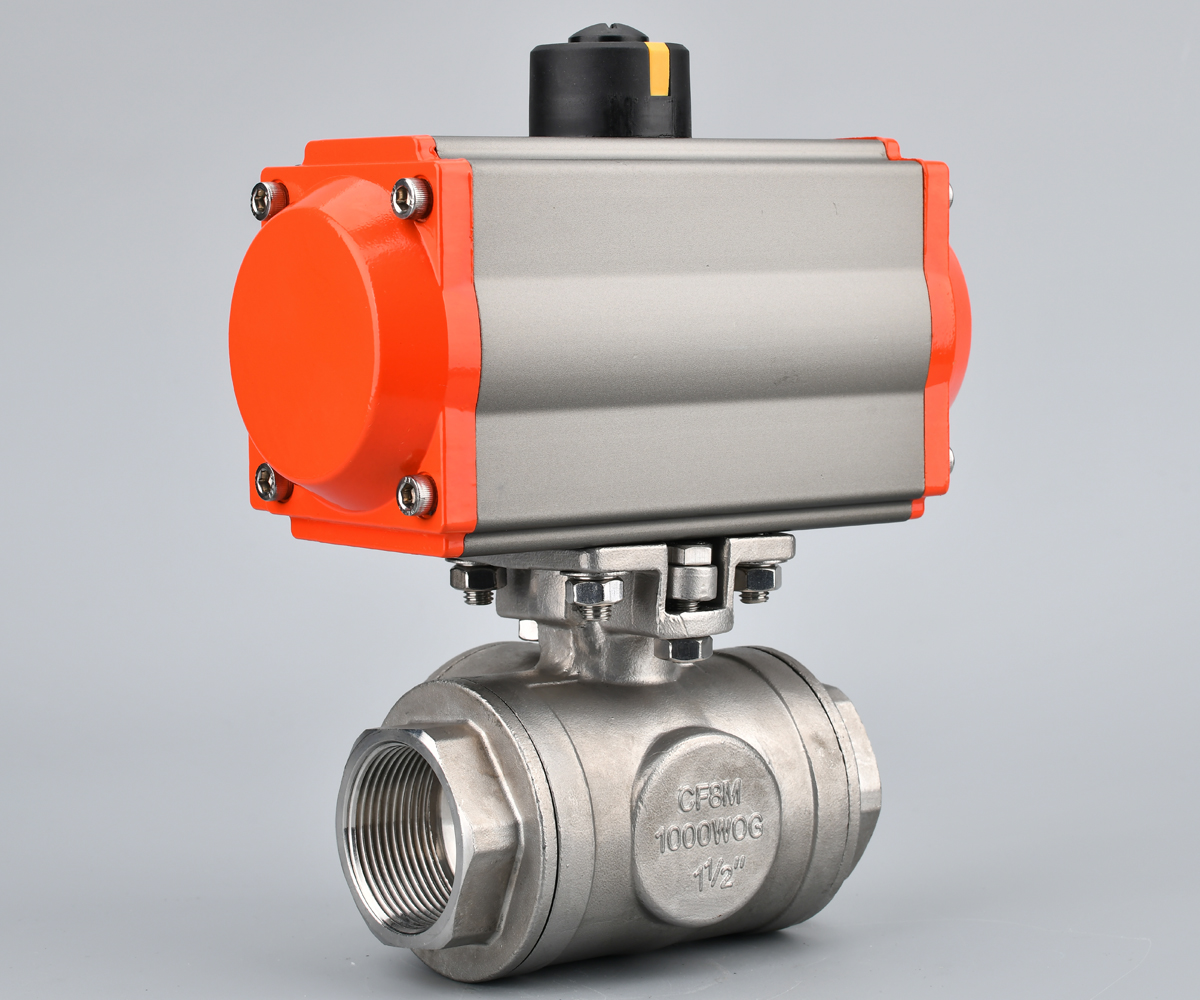

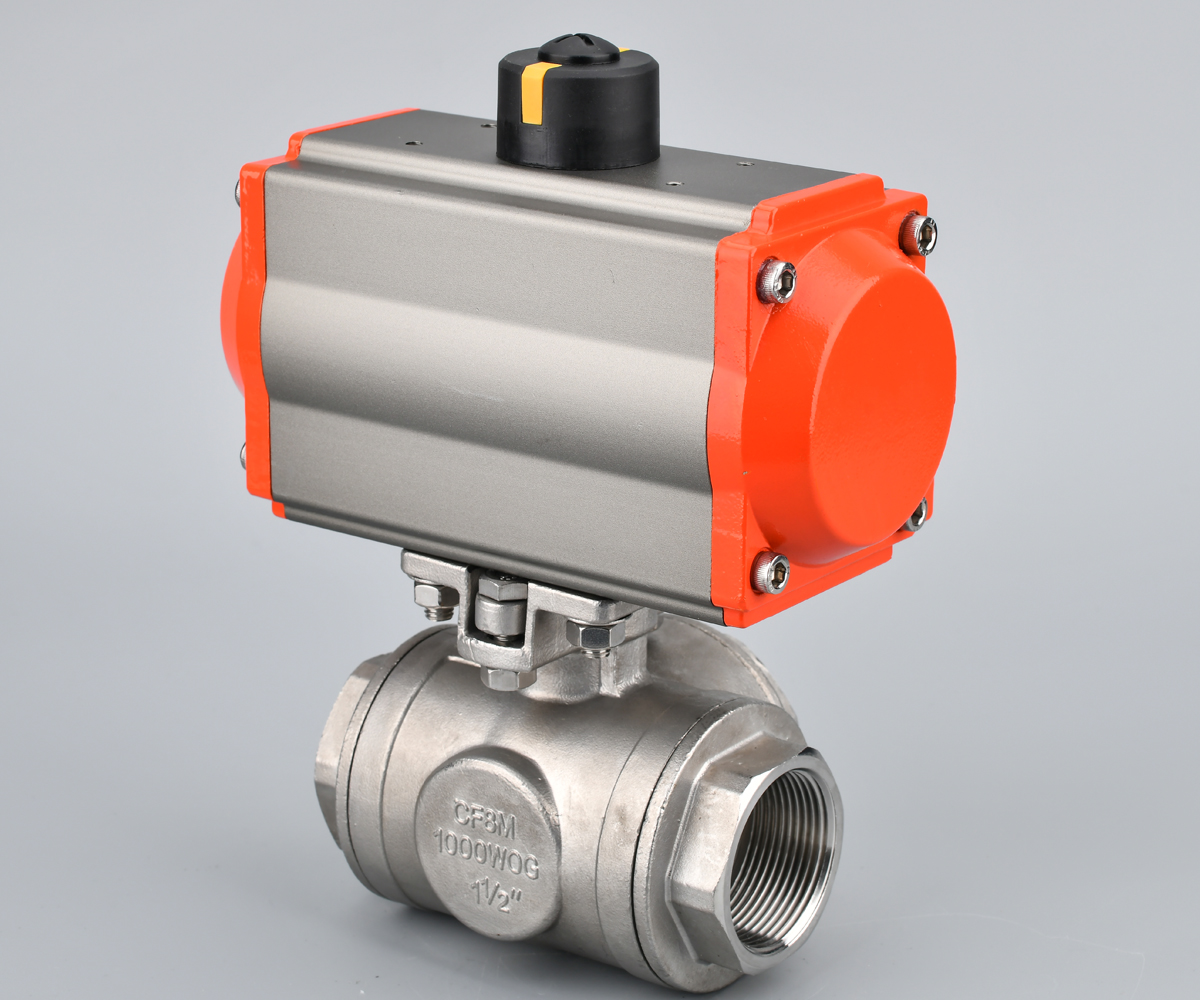

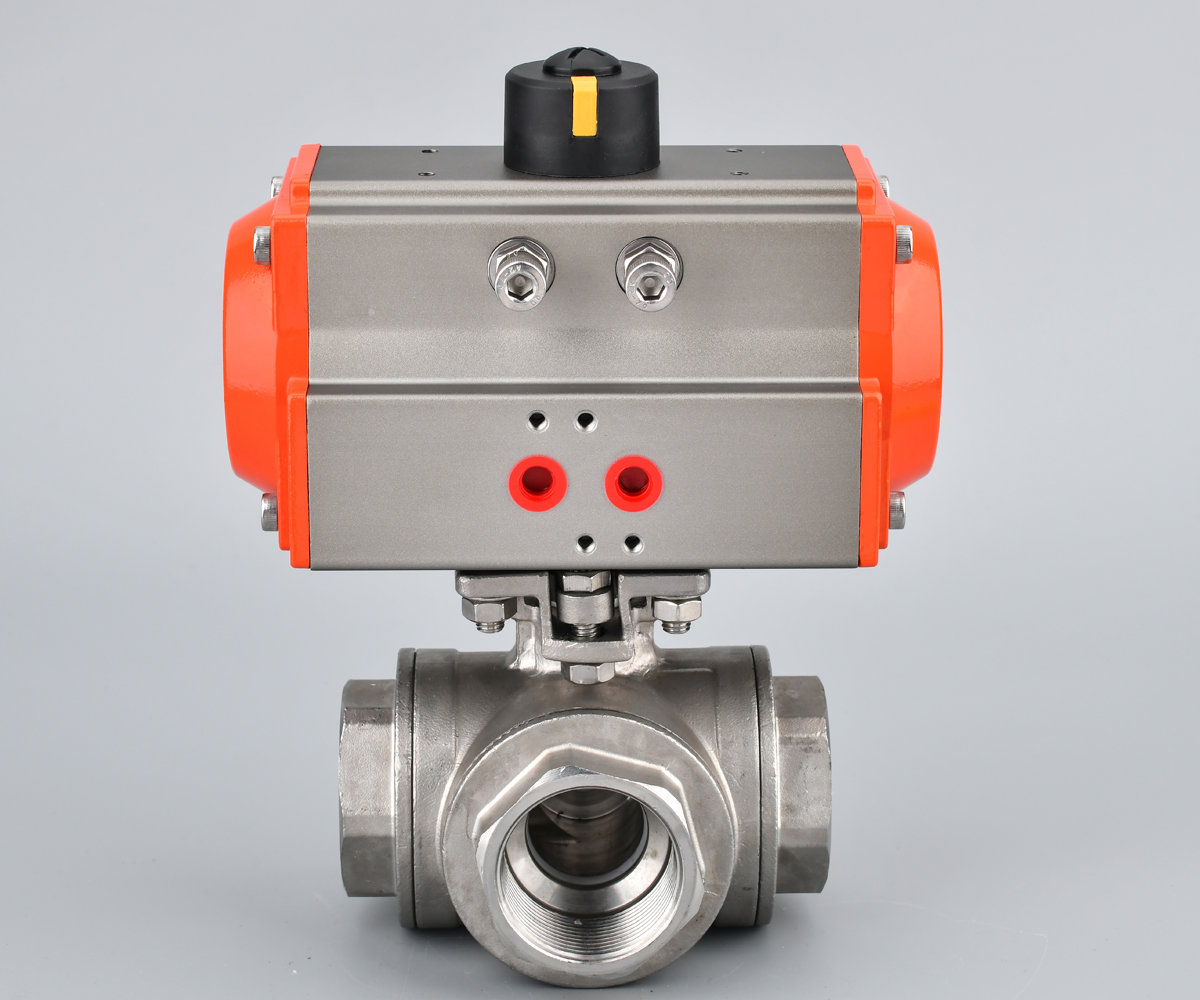

1. Key Features
• Three-Way Functionality - L-port (diversion) or T-port (mixing) configurations
• Threaded Connection - NPT/BSP threads for compact piping systems
• Bubble-Tight Shutoff - PTFE seats (ANSI Class VI) or metal seats (Class IV)
• Pneumatic Actuation - Double-acting or spring-return (fail-safe) options
• Compact Design - Saves 25% space compared to flanged valves
2. Performance Advantages
• High Flow Efficiency - Low pressure drop design
• Wide Temperature Range - -20°C to 180°C (PTFE seats)/-196°C to 450°C (metal seats)
• Corrosion Resistance - 304/316 stainless steel body options
• Quick 90° Operation - Fast response for process automation
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | CF8 (304 SS), CF8M (316 SS), WCB |
| Connection Type | NPT, BSP (male/female threads) |
| Port Configuration | L-port (diversion) or T-port (mixing) |
| Pressure Rating | 150-600 PSI (10-40 bar) |
| Actuator Type | Double-acting/Spring-return (ATEX optional) |
| Flow Coefficient | Cv: 5-120 (depending on size) |
4. Typical Applications
• Chemical Processing - Reagent mixing, dosing systems
• HVAC Systems - Water circulation control
• Water Treatment - Filtration backwashing
• Industrial Automation - Process line diversion
5. Compliance & Certificates
• ISO 9001:2015 - Quality Management System
• SIL 2/3 - Safety Integrity Level (upon request)
• Fire-Safe Option - API 607/ISO 10497 compliant
6. Optional Upgrades
• Explosion-Proof Actuator (ATEX, IECEx)
• Position Feedback (4-20mA, NAMUR sensor)
• Manual Override (Locking handle)
• Extended Stem For insulation jackets
