1. Key Features
• V-Port Ball Design – Provides precise flow control with linear or equal percentage characteristics
• Bubble-Tight Shutoff – PTFE or metal-seated options, meeting ANSI/FCI 70-2 Class VI standards
• Anti-Cavitation & Erosion Resistant – Hardened alloy coating (WC/Stellite) for abrasive media

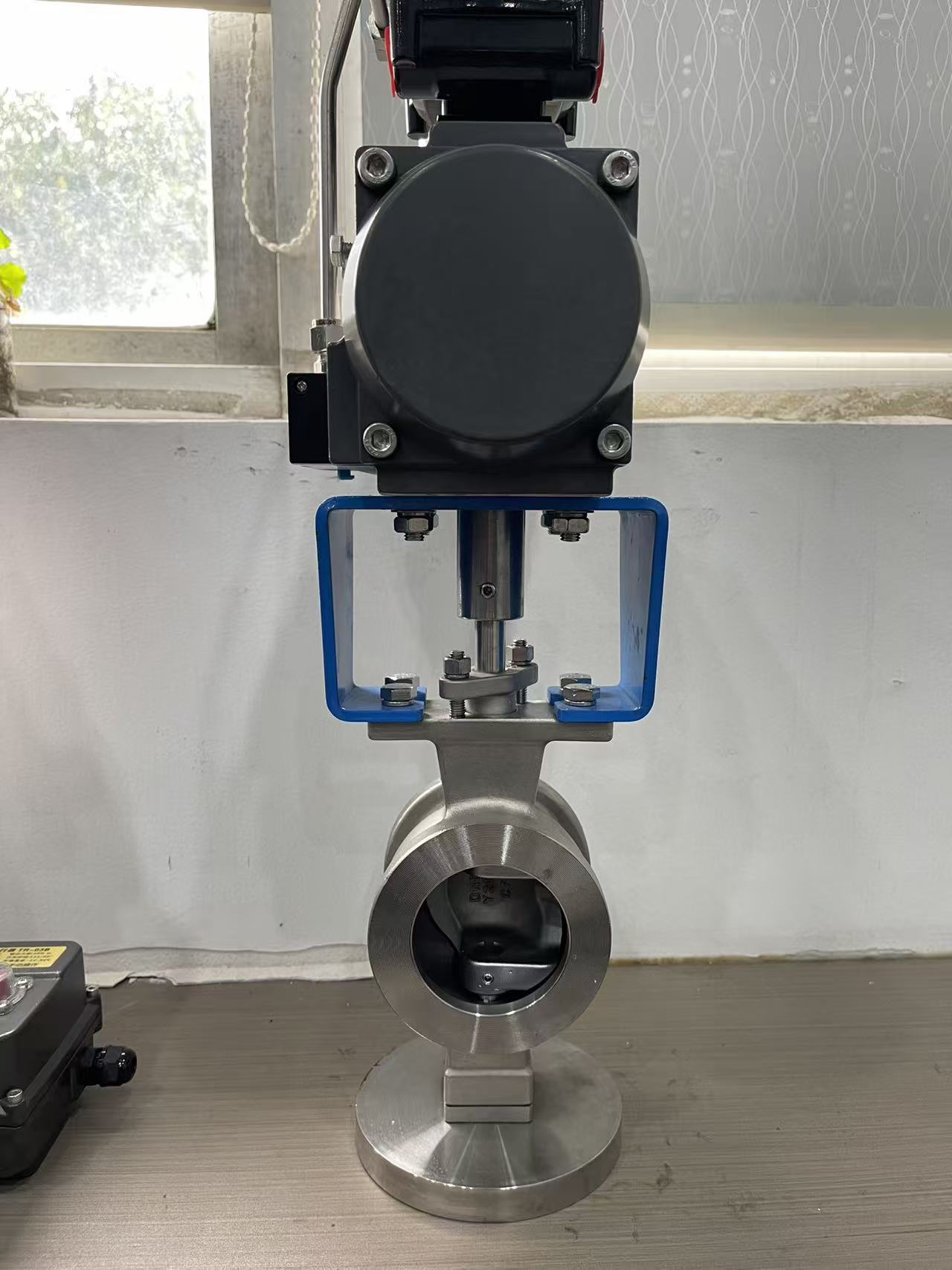

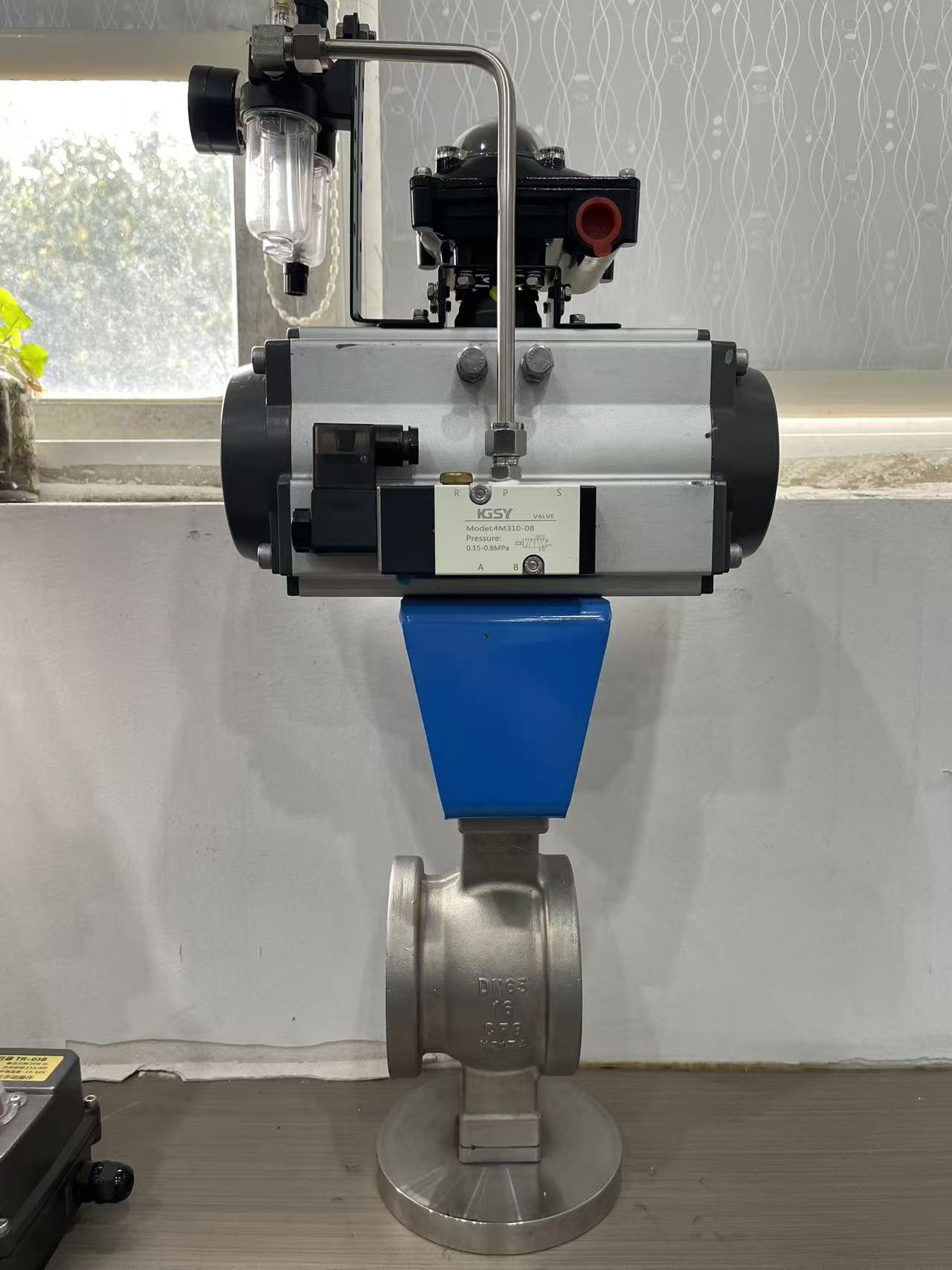

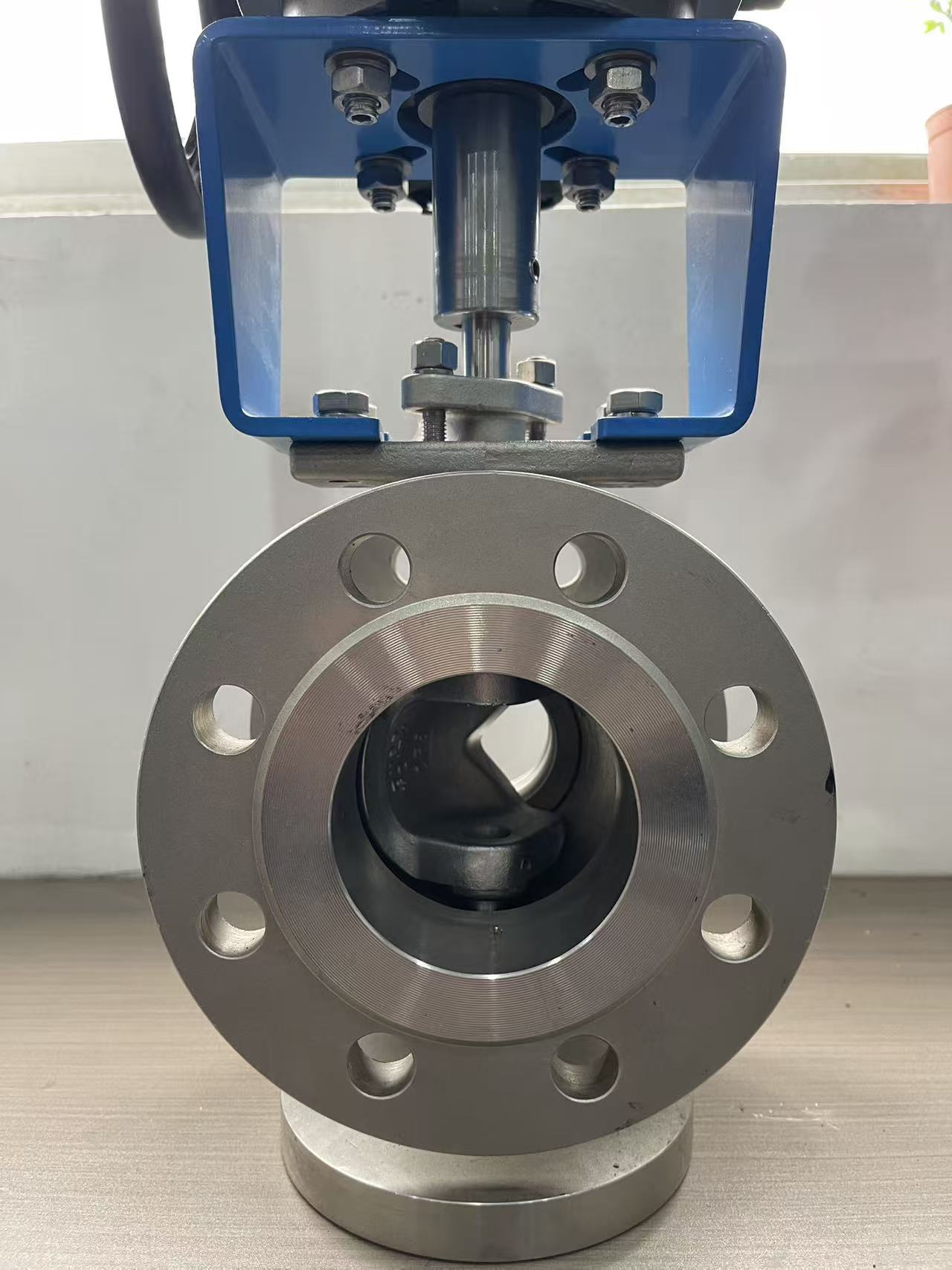

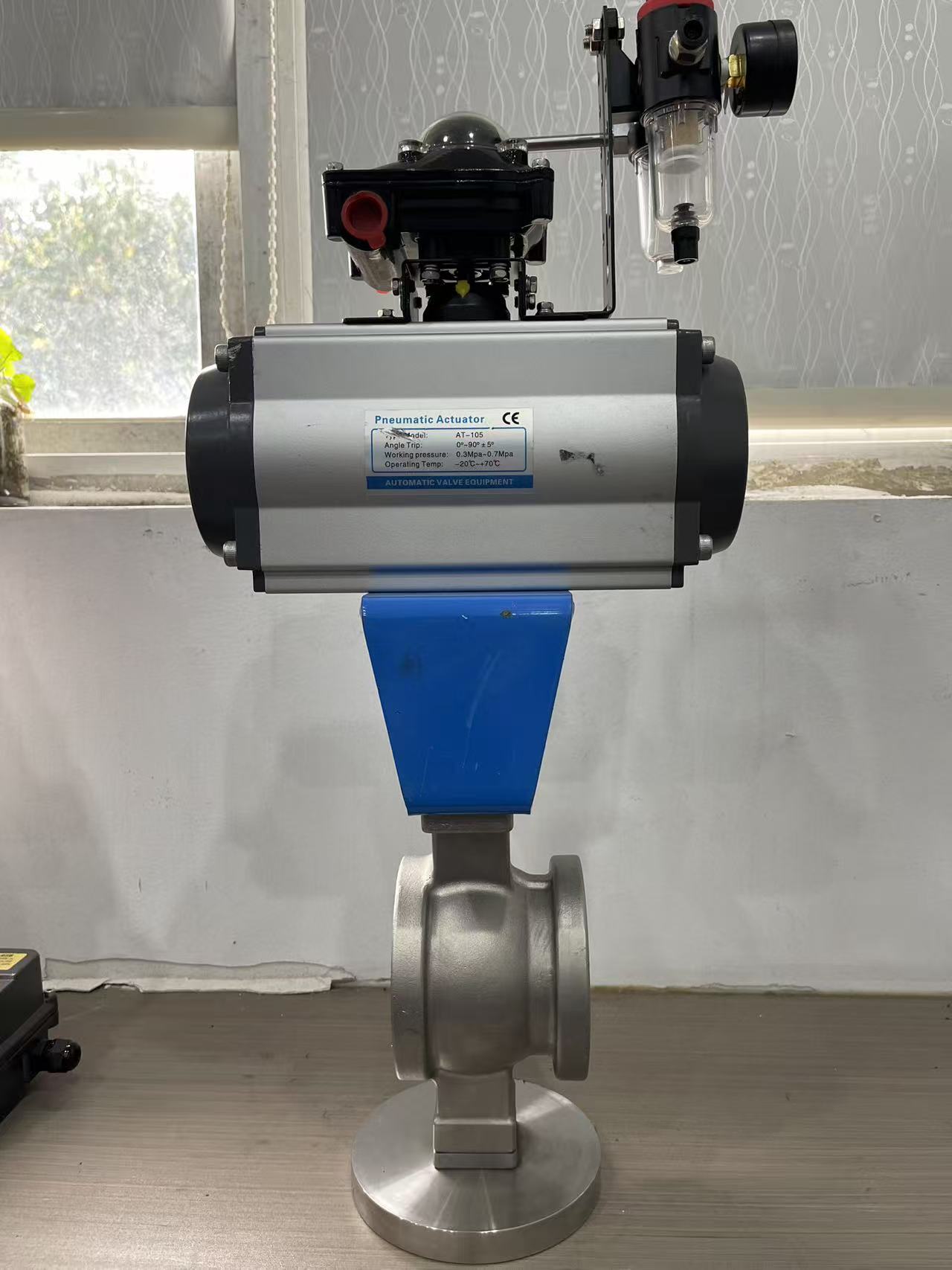

• Pneumatic Actuation – Double-acting or spring-return (fail-safe) with 4-20mA position feedback
• Fire-Safe Design – Complies with API 607/ISO 10497 (optional graphite seals)
2. Performance Advantages
• High Precision Control – Adjustable flow with 0-90° rotation for fine-tuning
• Wide Pressure & Temperature Range – PN16-PN100 (ANSI 150-600), -29°C to 450°C
• Low Torque Operation – Reduced actuator load for energy efficiency
• Corrosion & Wear Resistance – 316 stainless steel trim, optional epoxy coating
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | WCB, CF8 (304 SS), CF8M (316 SS) |
| Ball Design | V-shaped (15°, 30°, 60°, 90° port options) |
| Pressure Rating | PN16-PN100 / ANSI 150-600 |
| Connection Type | RF Flange (ANSI B16.5, DIN EN 1092-1, JIS) |
| Actuator Type | Double-acting / Spring-return (ATEX optional) |
| Flow Coefficient | CV: 10-400 (depending on size & V-angle) |
| Leakage Standard | ANSI Class VI (soft seat) / Class IV (metal) |
4. Typical Applications
• Chemical Industry – Slurry control, acid/alkali dosing
• Power Generation – Steam regulation, cooling systems
• Wastewater Treatment – Sludge handling, abrasive fluid control
• Oil & Gas – Pipeline throttling, gas pressure regulation
5. Compliance & Certificates
• ISO 9001:2015 – Quality Management System
• SIL 2/3 – Safety Integrity Level (upon request)
• Fire-Safe – API 607 / ISO 10497 (optional)
• Face-to-Face Dimensions – ISO 5752 / ASME B16.10
6. Optional Upgrades
• Explosion-Proof Actuator (ATEX, IECEx) for hazardous zones
• Positioner & Limit Switches (NAMUR, Profibus, Modbus)
• Extended Stem for high-temperature insulation
• Locking Handle for manual override
