1. Product Features

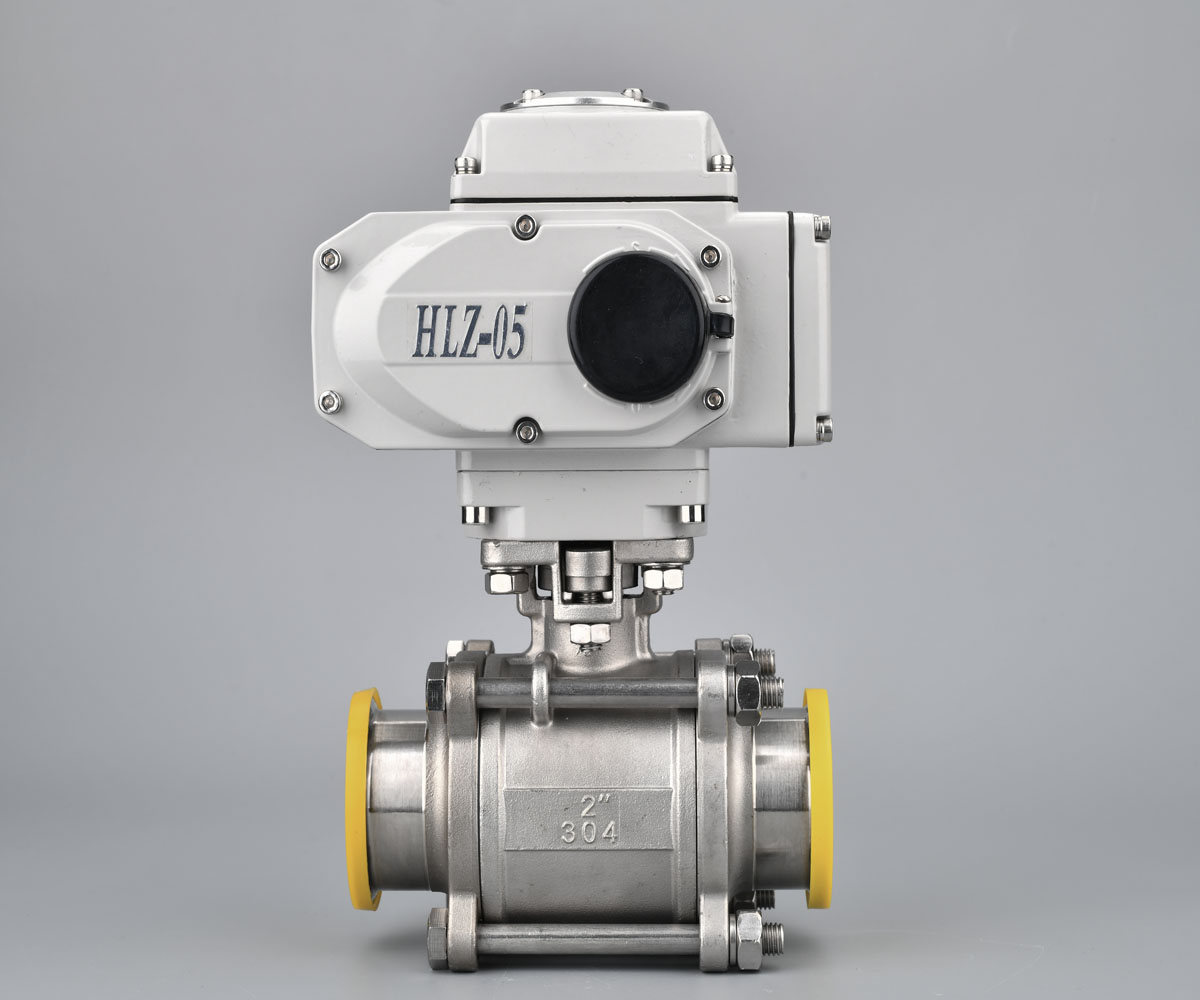

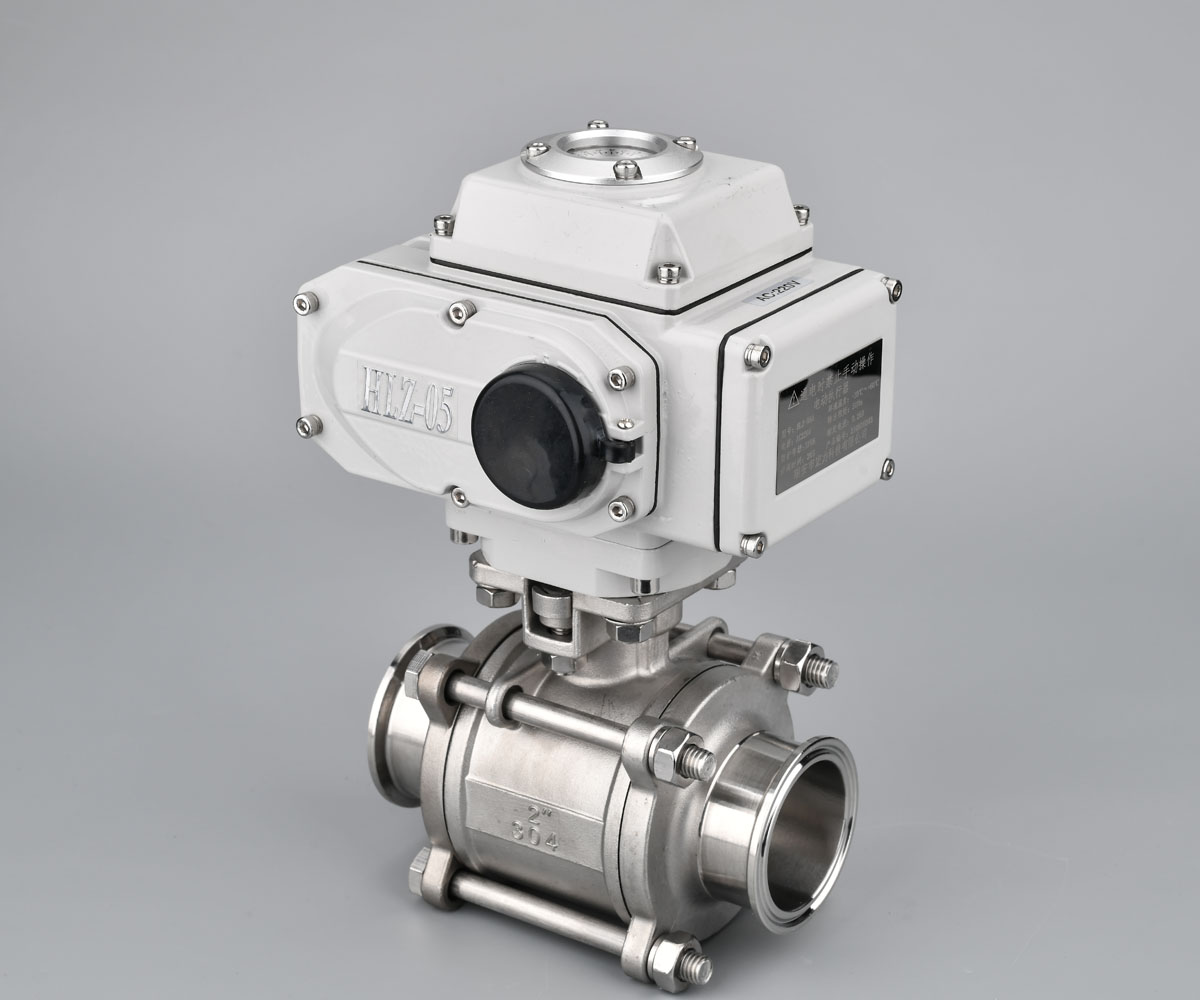

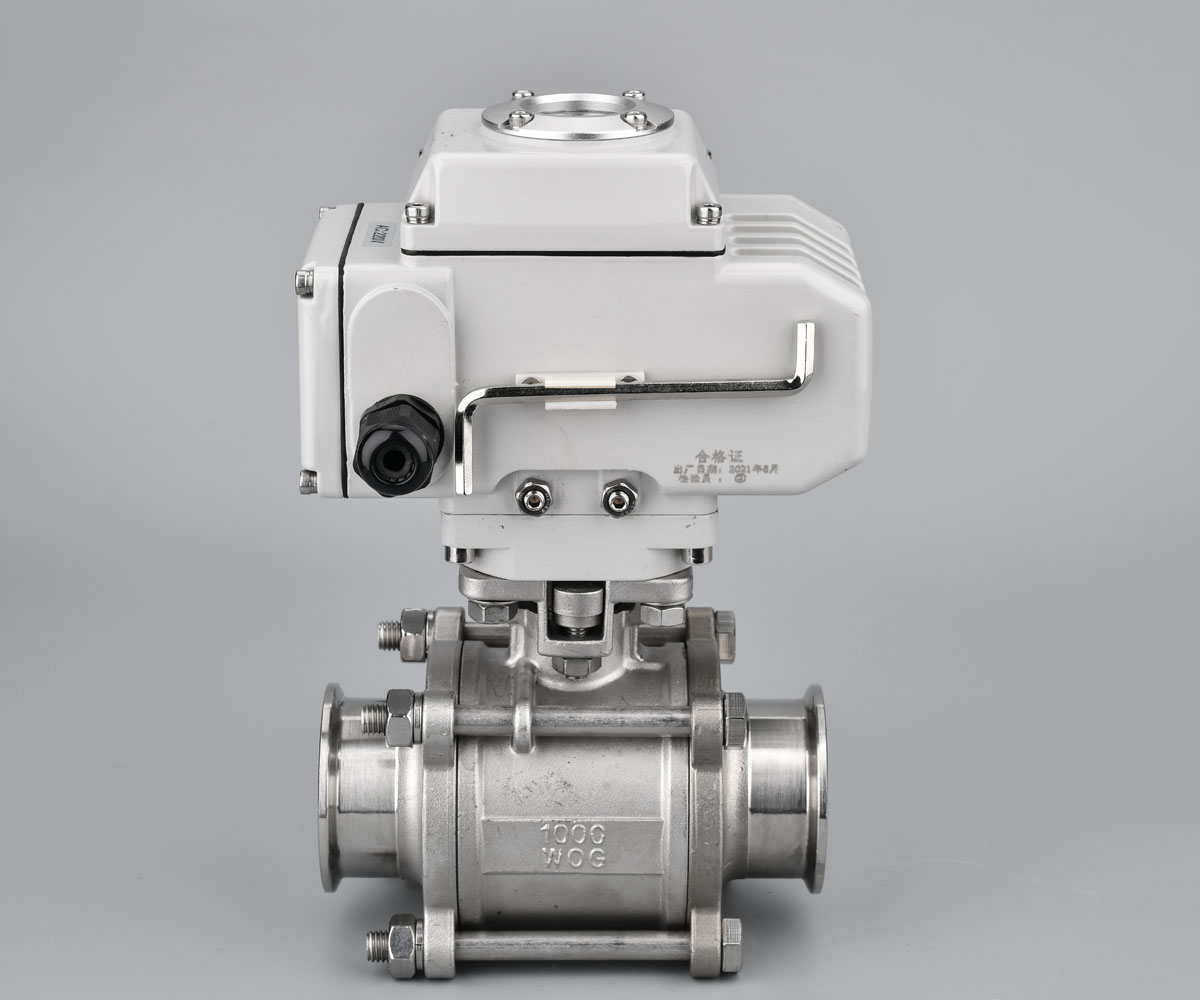

• Three-Piece Design: Allows easy disassembly for maintenance without removing the valve body.
• Quick-Install Connection: Saves installation time with threaded/flanged options (specify).
• Electric Actuation: Enables automated, remote-controlled operation for seamless integration.
• High-Pressure Resistance: Robust construction withstands demanding industrial conditions.
• Bubble-Tight Shutoff: Ensures zero leakage for safety and efficiency.
2. Key Advantages
• Reduced Downtime: Quick-install design speeds up deployment and maintenance.
• Energy Efficient: Low-power electric actuator optimizes operational costs.
• Versatile Compatibility: Works with water, air, oils, and mild chemicals.
• Long Service Life: Corrosion-resistant materials extend valve lifespan.
3. Technical Specifications
| Parameter | Details |
|---|---|
| Body Material | 304 SS, 316 SS, WCB (specify) |
| Ball Material | Stainless Steel, PTFE-Lined (specify) |
| Connection Type | Threaded (NPT/BSP), Flanged (ANSI/DIN) |
| Pressure Rating | [X] MPa (e.g., 1.6MPa, 2.5MPa) |
| Temperature Range | -20°C to 180°C (-4°F to 356°F) |
| Voltage Options | 24V DC, 110V/220V AC (specify) |
| Actuation Type | Electric (On/Off or Modulating) |
| Certifications | ISO 9001, SIL |
4. Applications
• Industrial Automation: Process control in manufacturing plants.
• Water Treatment: Flow regulation in filtration and distribution systems.
• HVAC: Cooling/heating circuit control.
• Oil & Gas: Non-corrosive fluid handling.
• Food & Beverage: Sanitary-grade material options available (if applicable).
5. Quality Assurance
Every valve undergoes strict testing to meet ISO 9001 quality standards. The SIL certification ensures reliability for safety-critical systems.
