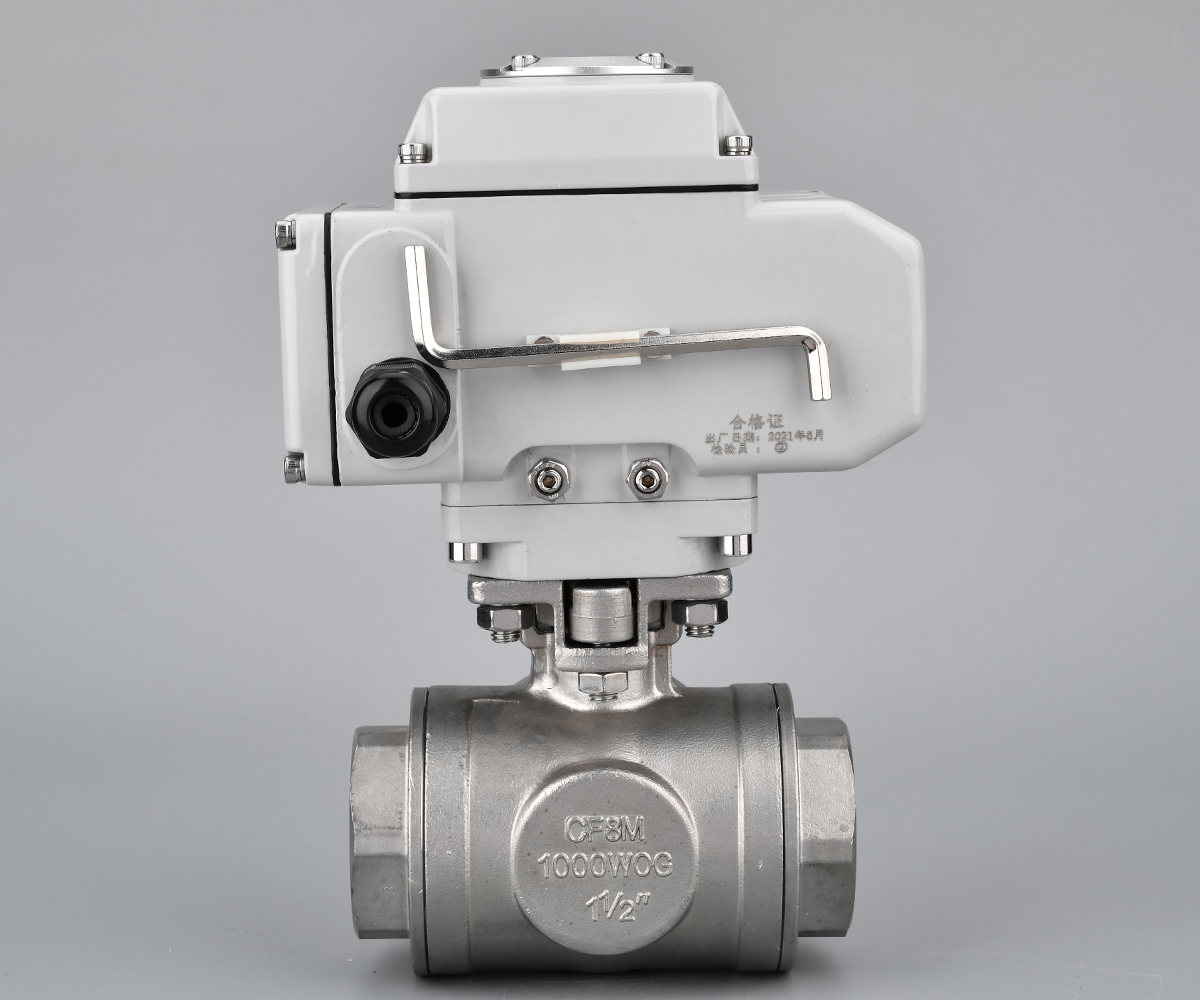

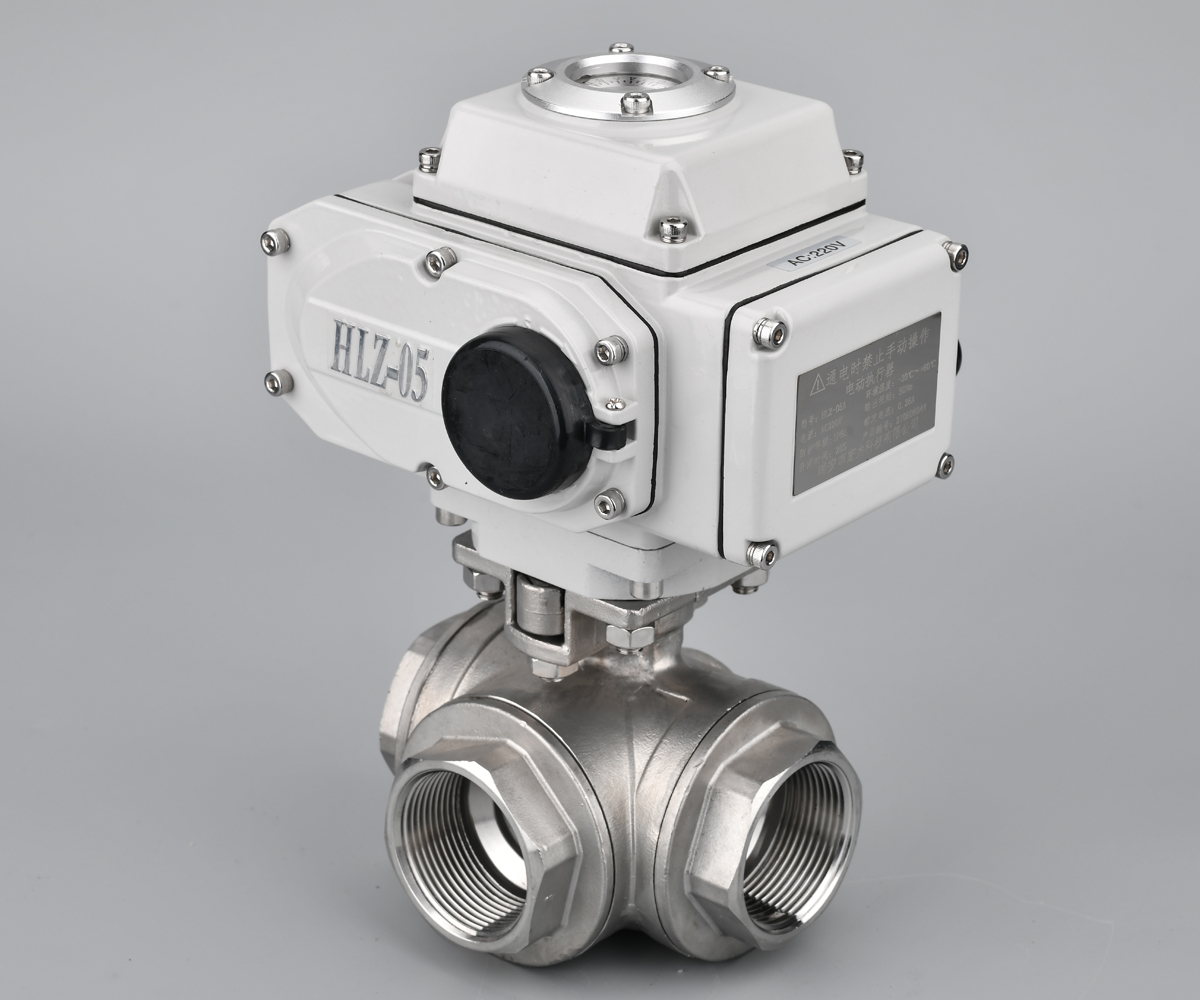

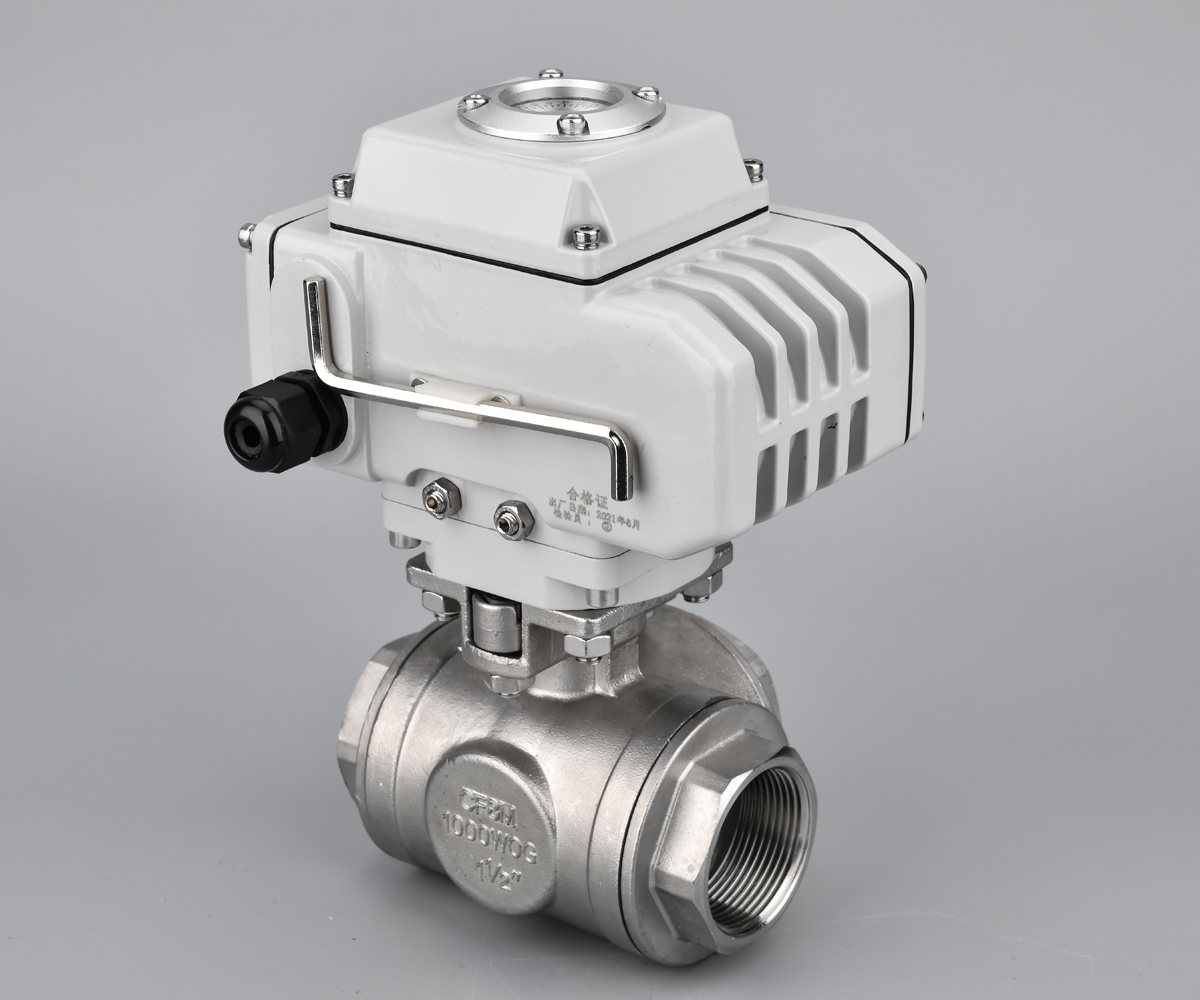

1. Product Features
• Three-Way Design: L-port or T-port configuration for flow diversion, mixing, or shut-off
• Electric Actuation: Enables remote operation with optional position feedback (4-20mA, ON/OFF)
• Threaded Connection: NPT or BSPP threads for compact, leak-proof piping integration
• High-Performance Sealing: PTFE/RPTFE seats ensure zero leakage even after repeated cycling
• Compact Construction: Space-saving design ideal for confined installations
2. Key Advantages
• Precise Flow Control: Electric actuator allows accurate flow modulation and positioning
• Versatile Functionality: Single valve replaces multiple two-way valves in complex systems
• Low Maintenance: Self-lubricating seats and stem seals minimize wear
• Energy Efficient: Only consumes power during valve operation
• Fail-Safe Options: Spring return actuators available for critical applications
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | 304/316 Stainless Steel, WCB |
| Ball Material | Chrome-plated SS316 with PTFE coating |
| Port Configuration | L-port (90° diversion) or T-port (180° mixing) |
| Pressure Rating | 150#/300# ANSI, PN16/PN25 |
| Temperature Range | -20°C to 180°C (standard seats) |
| Actuator Voltage | 24V DC, 110V/220V AC, 380V AC |
| Size Range | ½" to 4" (DN15 to DN100) |
| Thread Standard | NPT, BSPP, BSPT |
4. Applications
• Chemical processing and mixing systems
• HVAC and thermal energy distribution
• Water treatment and filtration systems
• Industrial automation and process control
• Pharmaceutical and food processing equipment
5. Certifications
• ISO 9001: Certified quality management system
• SIL 2/3: Compliant for safety instrumented systems
6. Additional Options
• Explosion-proof actuators (ATEX/IECEx available)
• Manual override for emergency operation
• Position indicators and limit switches
• Special coatings for corrosive environments
7. Service Support
• Custom configurations available
• OEM services for bulk orders
• Technical support for system integration
