1. Key Features

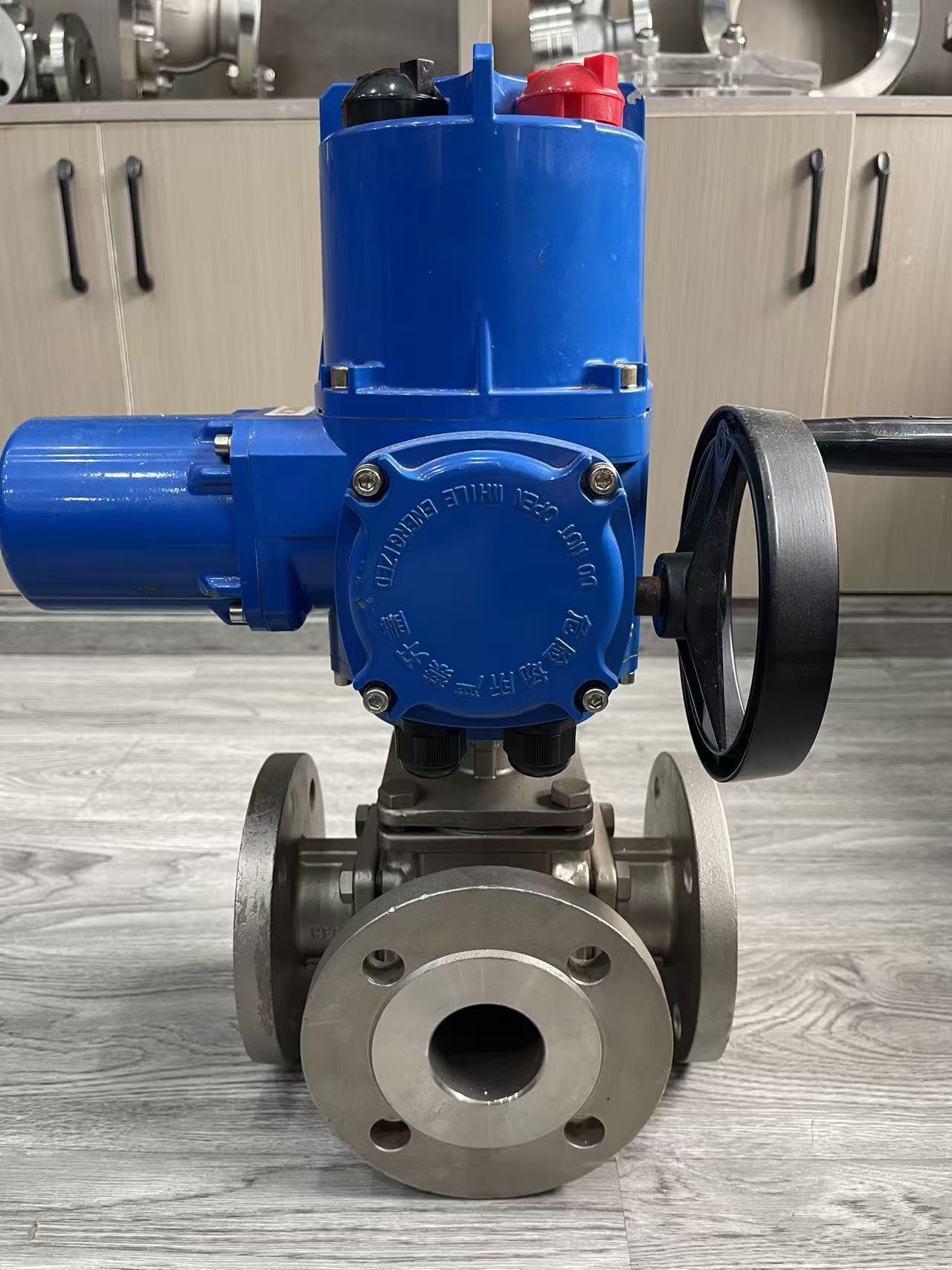

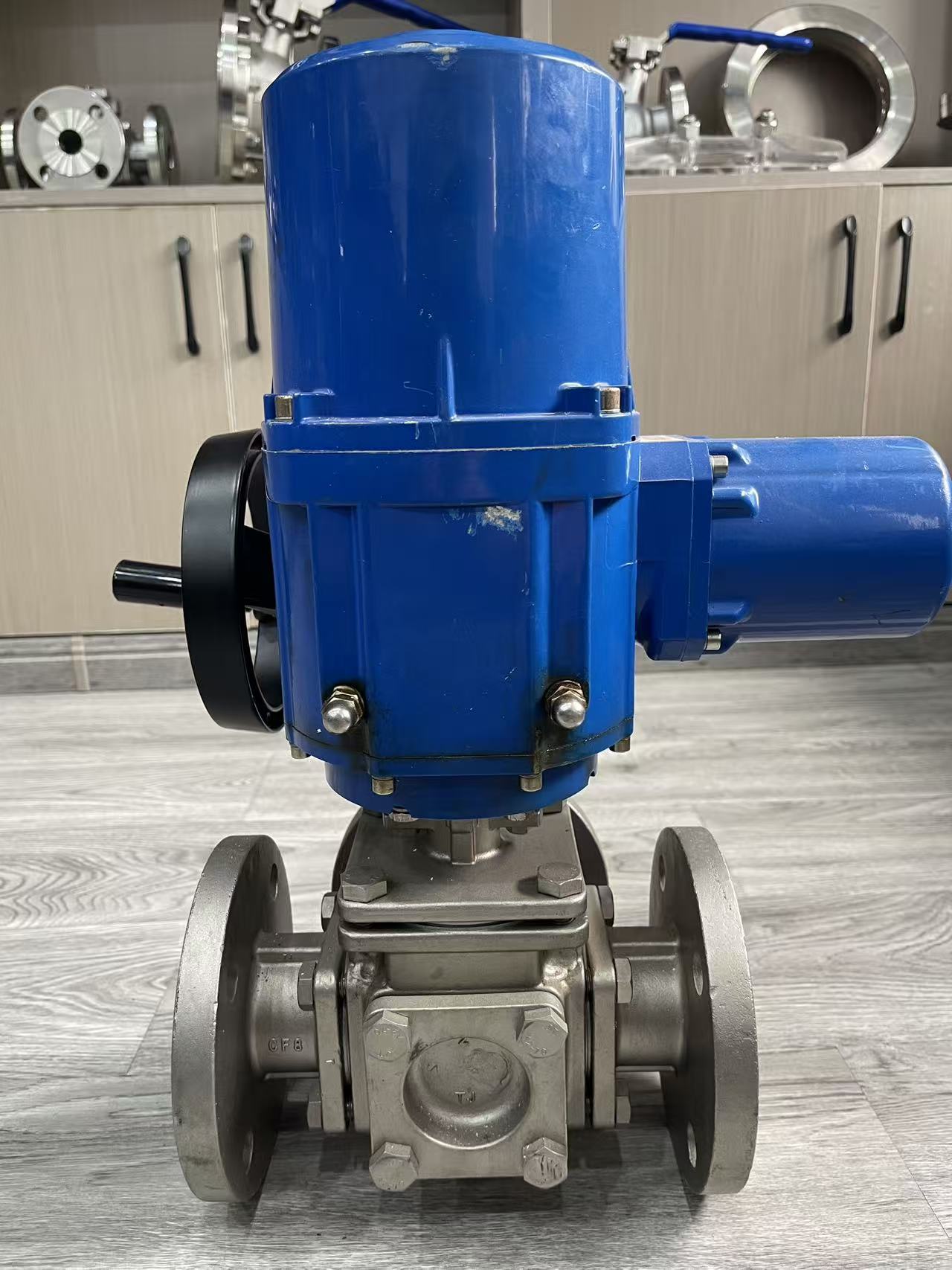

• Three-Way Functionality: L/T port configurations for flow diversion, mixing, or shut-off

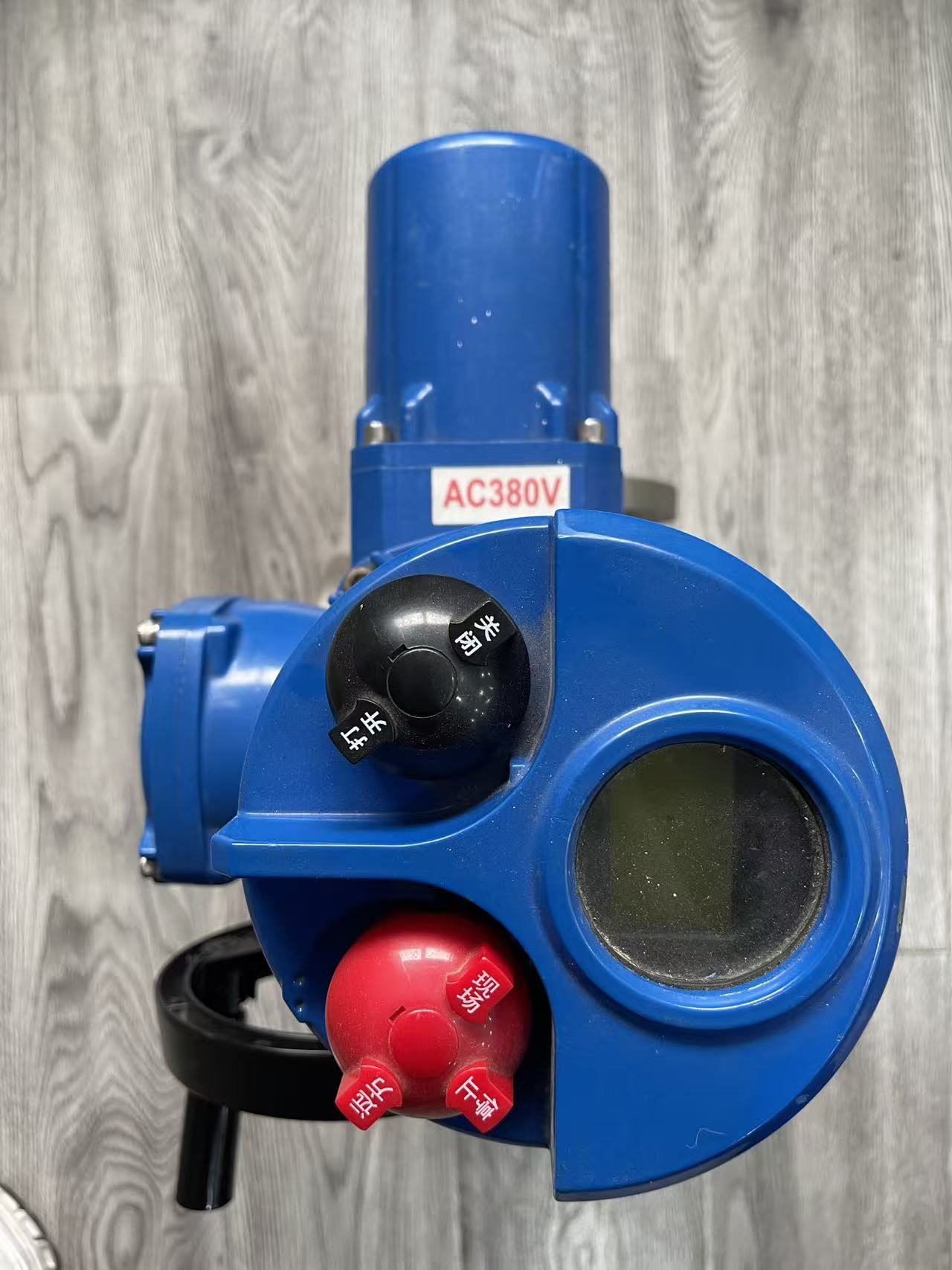

• Electric Actuation: 24V/110V/220V AC/DC options with fail-safe (FO/FC) versions available
• Zero Leakage: PTFE seats + metal-to-metal secondary seal, tested to ANSI/FCI 70-2 Class VI
• Low Torque Design: 30% reduced actuator load for energy savings
2. Performance Advantages
• Corrosion Resistance: 316L trim option for seawater/acidic media (optional epoxy coating)
• High-Temp Durability: -29℃~200℃ operational range (PTFE seats) / up to 450℃ (metal seats)
• Smart Ready: Supports Modbus, Profibus protocols (actuator-dependent)
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | CF8/CF8M (304/316 SS), WCB optional |
| Pressure Rating | PN16/PN25/PN40 (ANSI 150/300 available) |
| Connection | RF flange (ANSI B16.5, DIN EN 1092-1) |
| Port Type | Equal percentage L-port or T-port |
| Flow Coefficient | Kv: 25~180 (varies by size) |
| Actuator Type | On/Off or Proportional Control |
4. Typical Applications
• Chemical processing: Acid/alkali dosing systems
• District heating: Water mixing stations
• Food & beverage: CIP/SIP pipeline networks
• Power plants: Cooling water distribution
5. Compliance & Certificates
• ISO 9001:2015 Quality Management System
• SIL 2/3 (upon request)
• Face-to-face dimensions per ISO 5752
6. Optional Upgrades
• Position feedback (4-20mA/Potentiometer)
• Explosion-proof actuator (ATEX/IECEx)

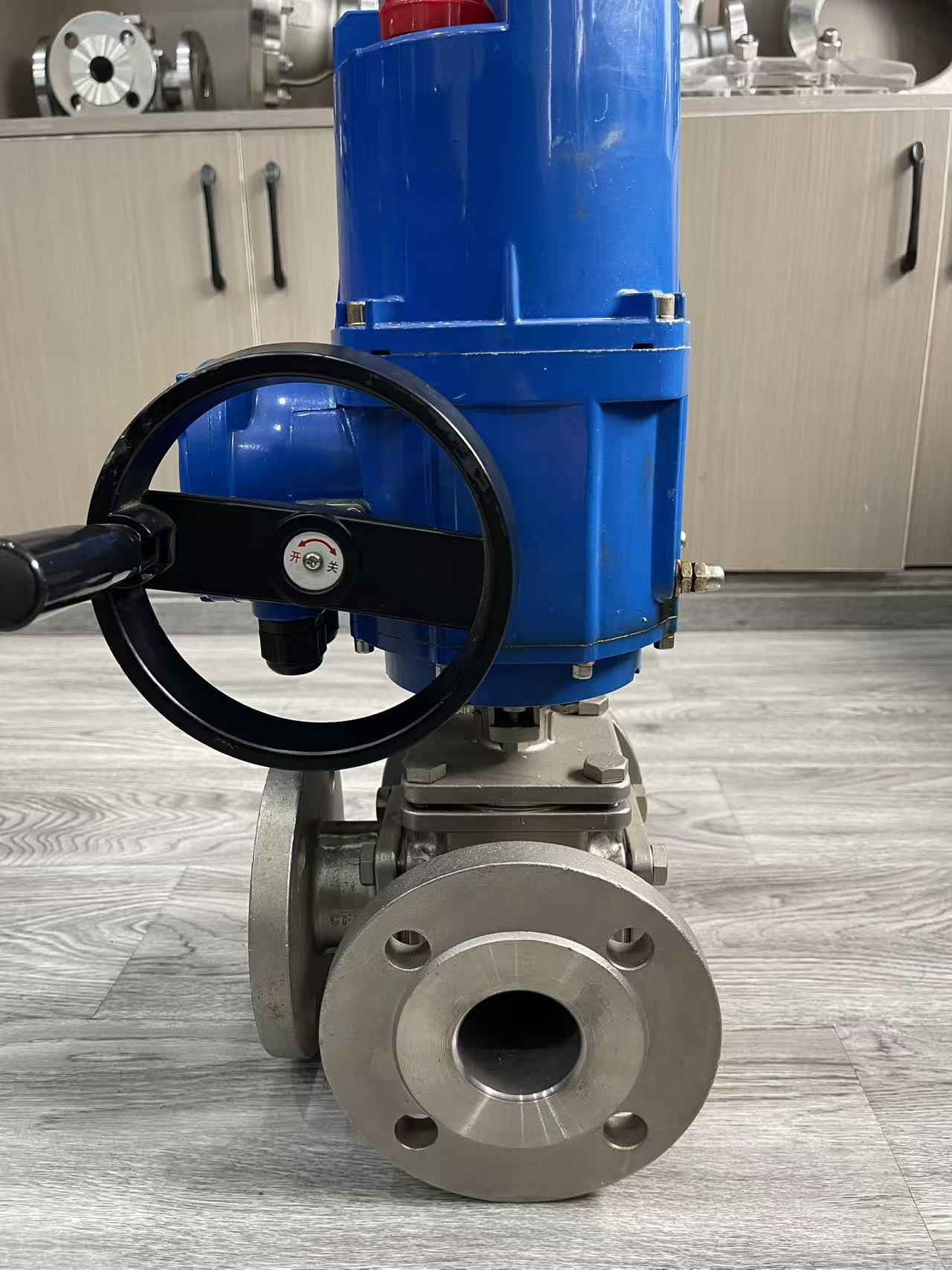

• Lockable handwheel for manual override
