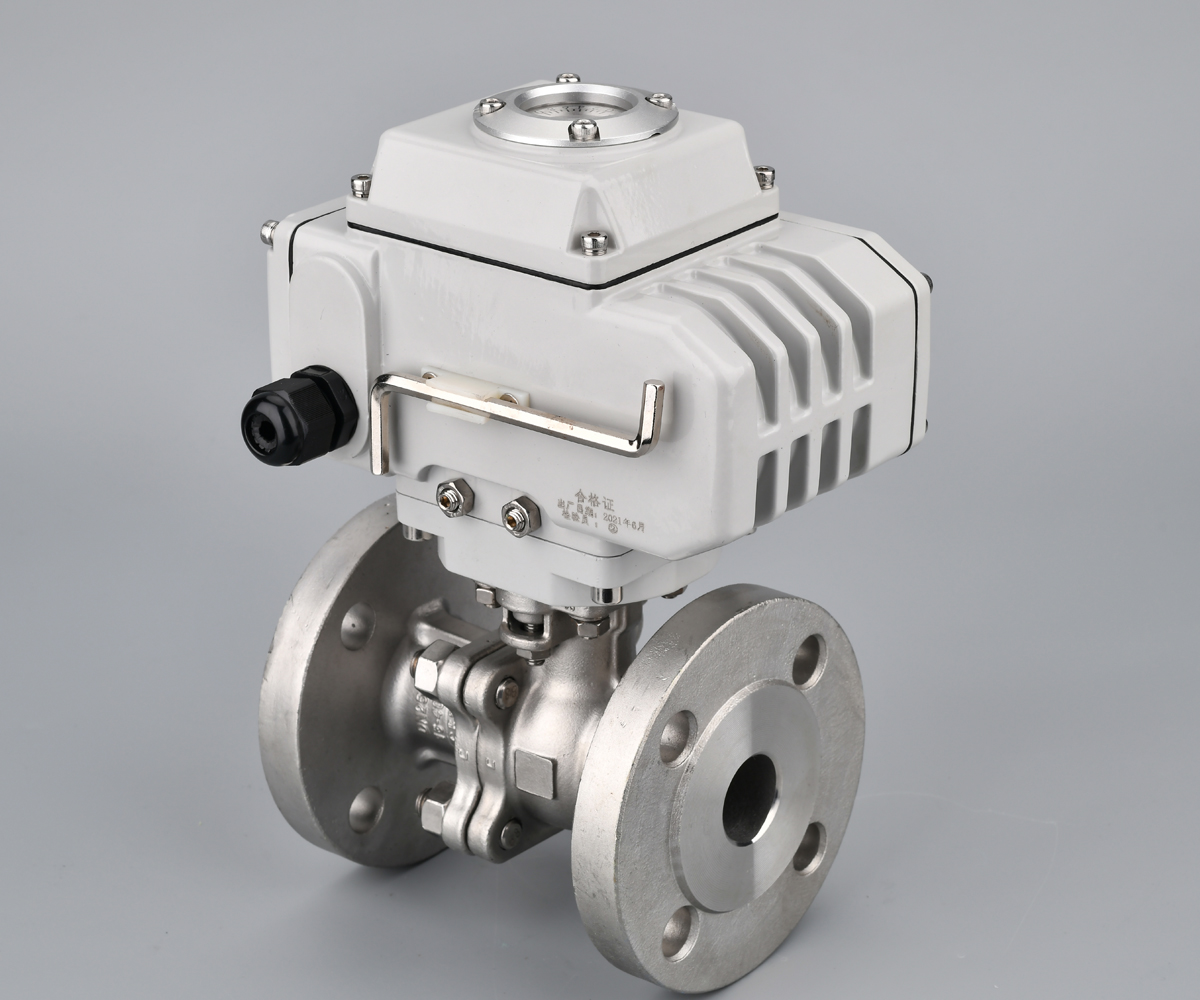

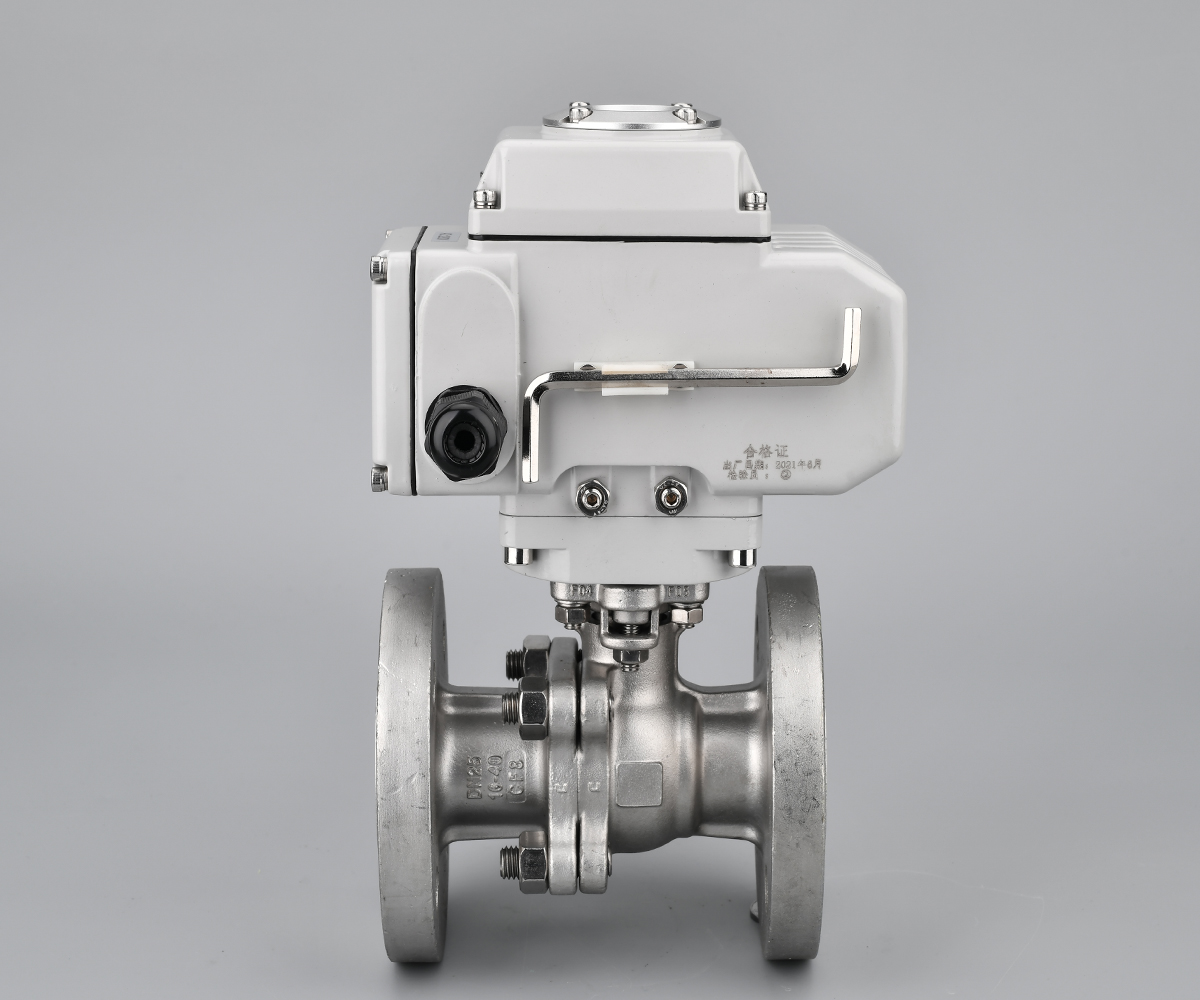

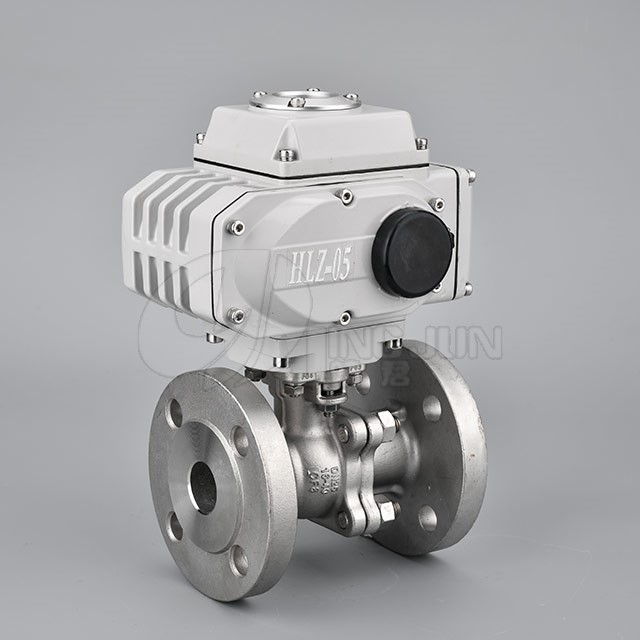

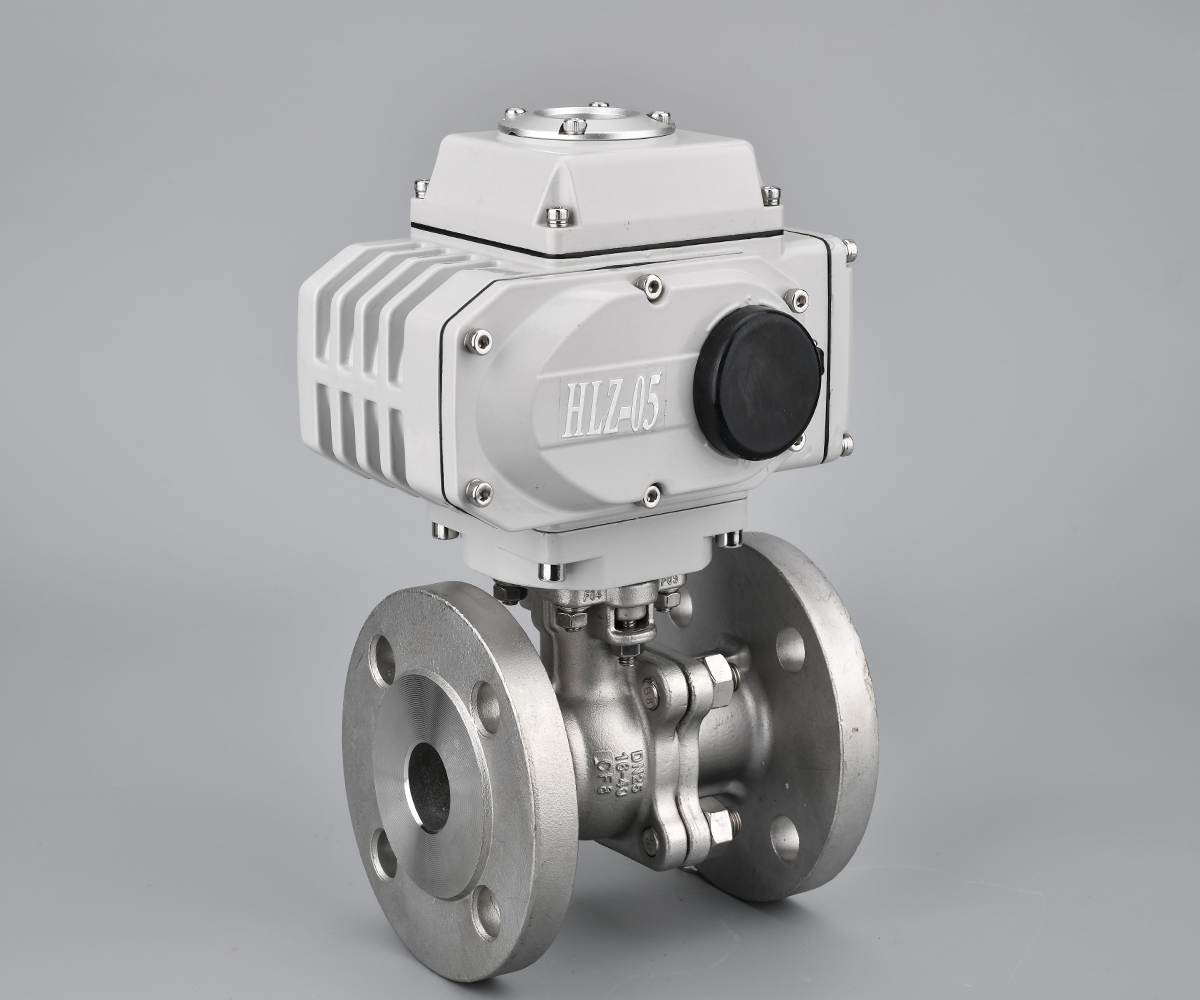

1. Product Features
• Electric Actuation: Enables automated, remote control with optional feedback signals (4–20mA, ON/OFF).
• Robust Construction: Available in 304/316 stainless steel or WCB for high pressure/temperature resistance.
• Bubble-Tight Seal: PTFE seats ensure zero leakage, even after prolonged use.
• Flanged Connection: ANSI/EN/DIN standard flanges for secure piping integration.
• Fail-Safe Options: Spring-return or battery backup actuators for emergency shutoff.
2. Key Advantages
• Fast Response Time: Electric actuators provide swift opening/closing (e.g., 5–30 seconds).
• Low Maintenance: Stem seals and self-lubricating bearings minimize wear.
• Energy Efficient: Consumes power only during operation, unlike pneumatic alternatives.
• Versatile Compatibility: Suitable for liquids, gases, and corrosive media.
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | 304/316 Stainless Steel, WCB |
| Ball Material | Chrome-plated SS316/PTFE-coated |
| Pressure Rating | PN16/PN25 (150#/300# ANSI) |
| Temperature Range | -20°C to 180°C (PTFE seats) |
| Actuator Voltage | 24V DC, 110V/220V AC, 380V AC |
| Size Range | DN15–DN300 (½"–12") |
| Seat Material | PTFE, RPTFE, PPL |
4. Applications
• Oil & gas pipelines (refineries, storage tanks)
• Chemical and pharmaceutical processing
• Water treatment plants and irrigation systems
• HVAC and district heating/cooling networks
• Food and beverage industry (sanitary models available)
5. Certifications
• ISO 9001: Quality assurance for manufacturing processes.
• SIL 2/3: Functional safety certification for critical systems.
6. Additional Notes
• Optional Features: Explosion-proof actuators, manual overrides, position indicators.
• Packaging: Anti-rust coating + wooden crates for export.
• Lead Time: Standard 15–30 days; expedited orders negotiable.
