1. Key Features
• Full/Reduced Port Design – Optimized for high flow capacity (full bore) or space-saving installation (standard bore)
• Bubble-Tight Shutoff – PTFE or metal-seated options (ANSI Class VI/IV)
• Fire-Safe Construction – Complies with API 607/ISO 10497 (optional graphite seals)
• Anti-Static & Blowout-Proof Stem – Ensures safety in flammable media applications

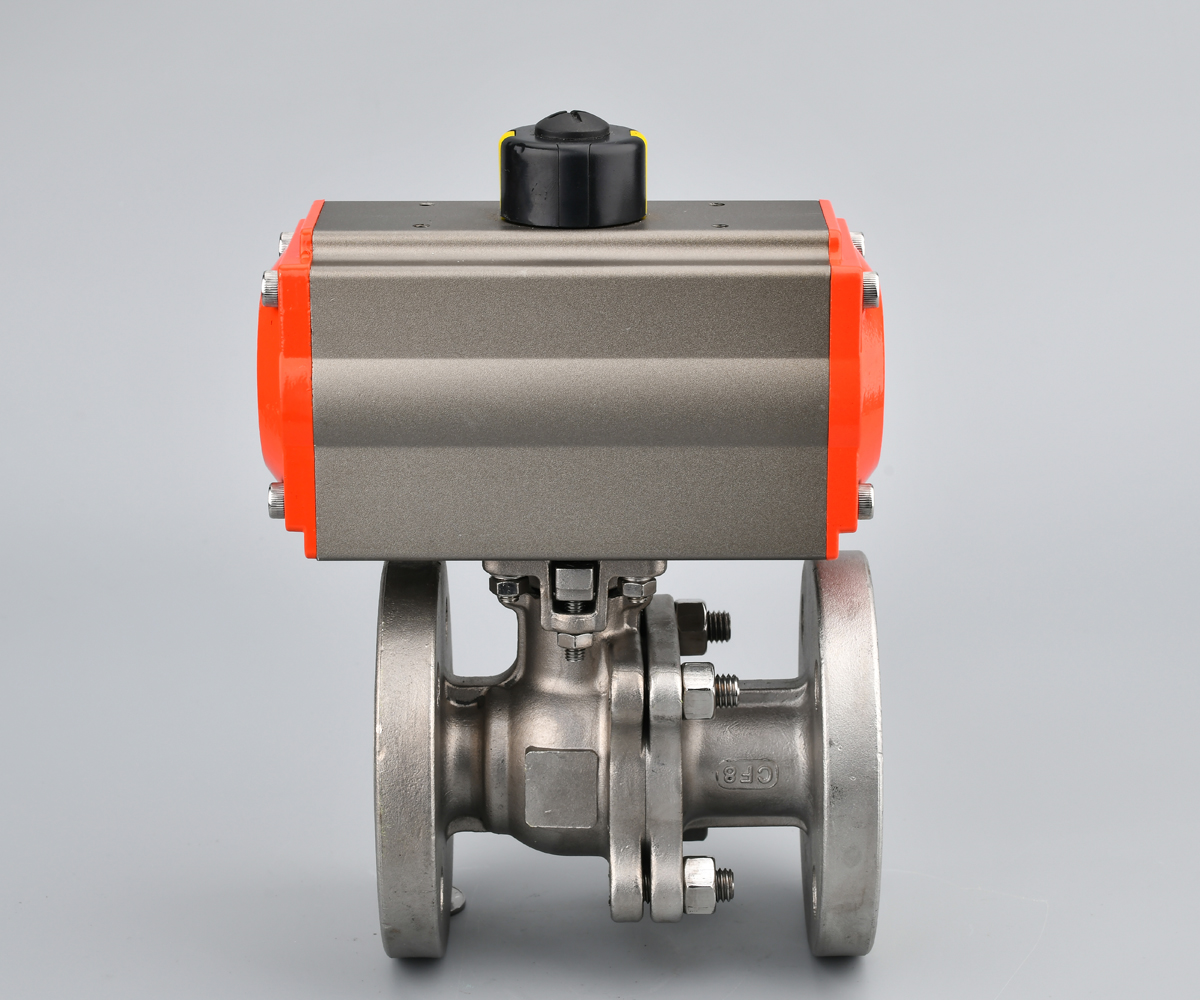

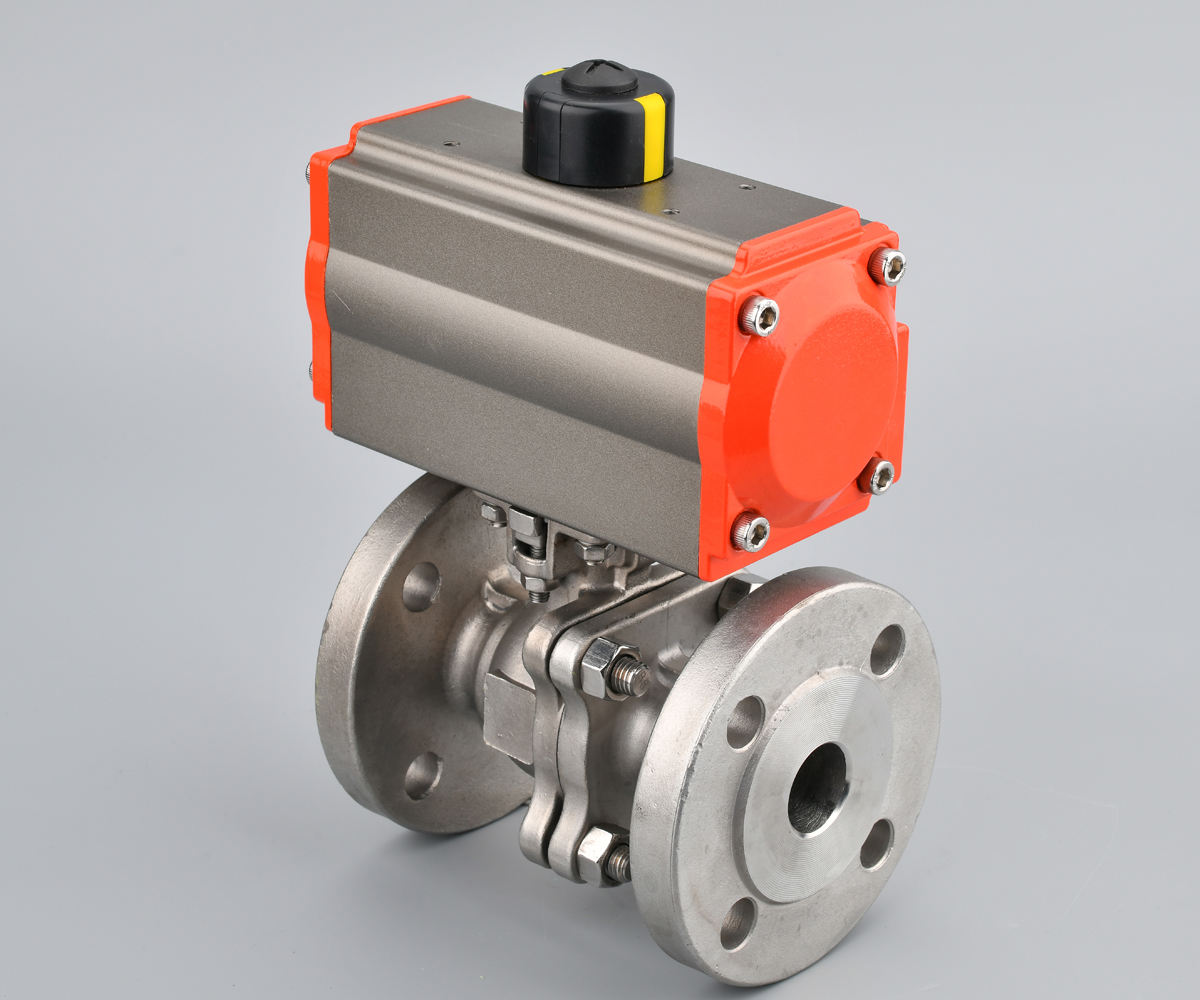

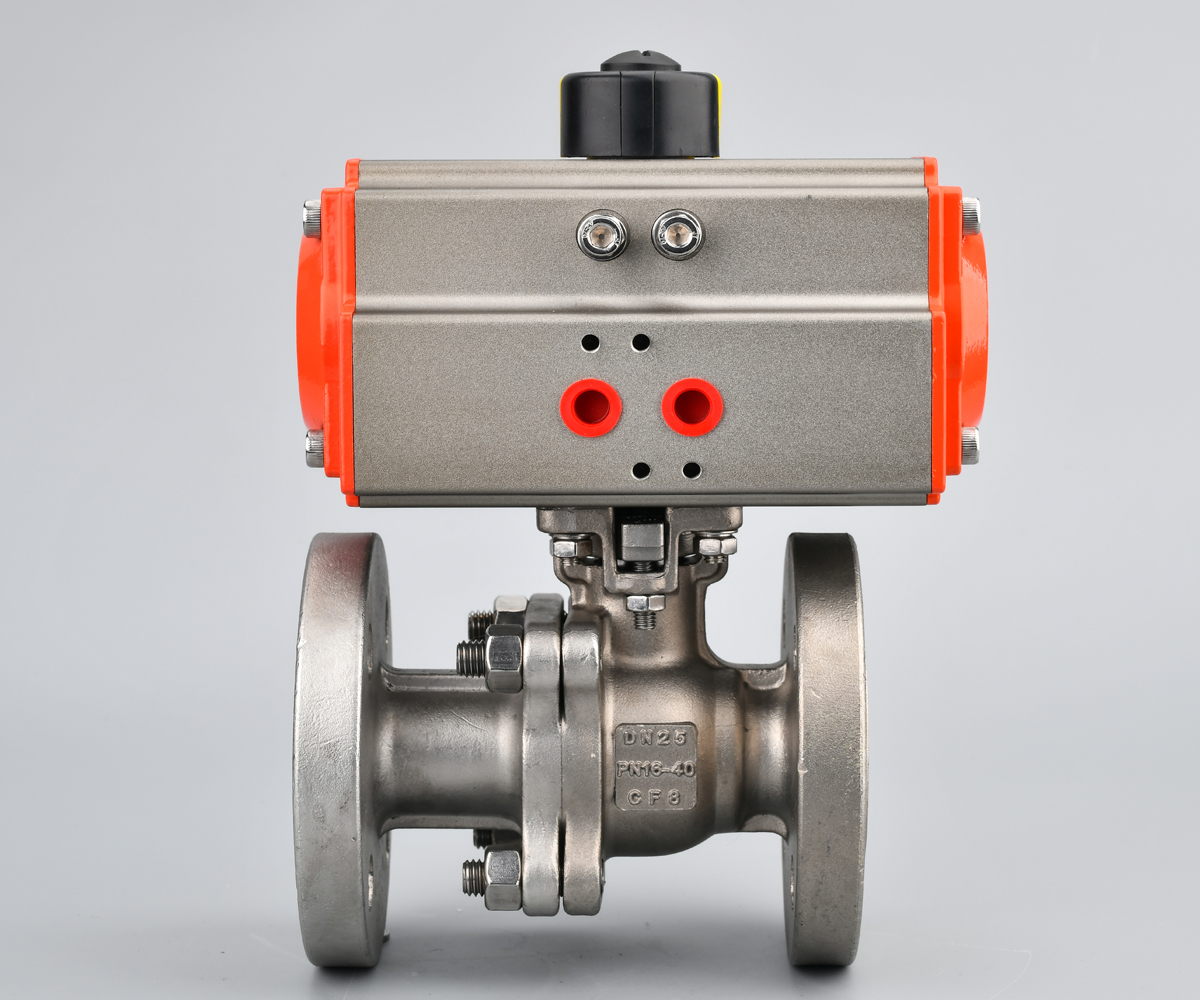

• Pneumatic Actuation – Double-acting or spring-return (fail-safe), with 4-20mA position feedback
2. Performance Advantages
• High Pressure & Temperature Rating – PN16-PN100 (ANSI 150-600), -29°C to 450°C
• Low Torque Operation – Reduces actuator load for energy efficiency
• Corrosion & Wear Resistance – 304/316 stainless steel, optional hard coatings (WC/Stellite)
• Quick 90° Operation – Fast response for process automation
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | WCB, CF8 (304 SS), CF8M (316 SS), LCB (Low Temp) |
| Pressure Rating | PN16-PN100 / ANSI 150-600 |
| Connection Type | RF Flange (ANSI B16.5, DIN EN 1092-1, JIS) |
| Port Type | Full port (FB) or reduced port (RB) |
| Actuator Type | Double-acting / Spring-return (ATEX optional) |
| Flow Coefficient | CV: 20-500 (depending on size & design) |
| Leakage Standard | ANSI Class VI (soft seat) / Class IV (metal) |
4. Typical Applications
• Oil & Gas – Pipeline isolation, wellhead control
• Chemical Processing – Acid/alkali handling, reactor feed systems
• Power Plants – Steam, cooling water, and fuel control
• Water/Wastewater – Pump protection, filtration systems
5. Compliance & Certificates
• ISO 9001:2015 – Quality Management System
• SIL 2/3 – Safety Integrity Level (upon request)
• Fire-Safe – API 607 / ISO 10497 (optional)
• Face-to-Face Dimensions – ISO 5752 / ASME B16.10
6. Optional Upgrades
• Explosion-Proof Actuator (ATEX, IECEx) for hazardous areas
• Positioner & Limit Switches (NAMUR, Profibus, Modbus)
• Extended Stem for high-temperature insulation
• Locking Handle for manual override
