1、Structural Advantages

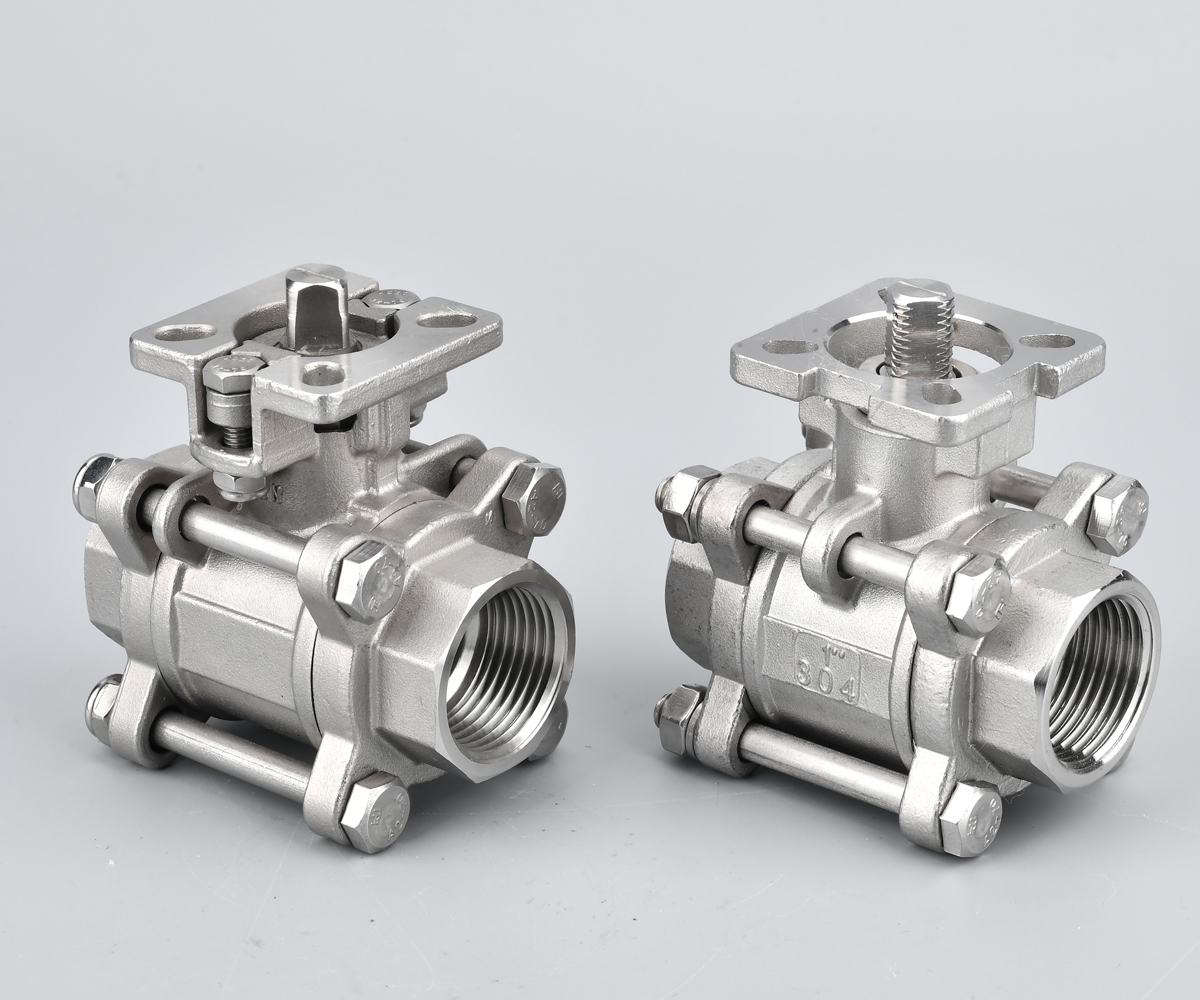

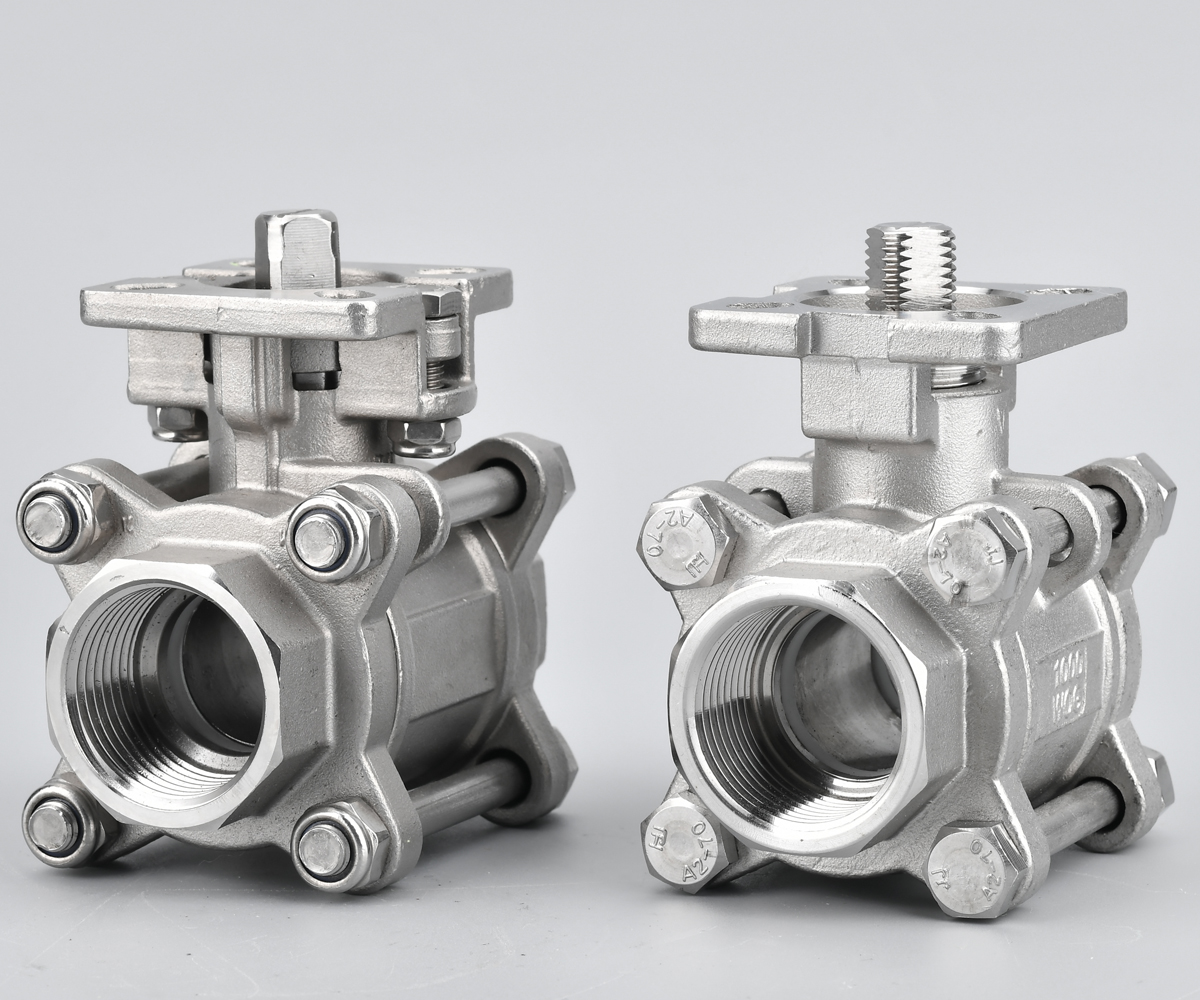

• Three-piece bolted body design for in-line maintenance
• High platform (ISO 5211 top flange) for direct actuator mounting
• Full-bore construction maintains pipeline flow efficiency
• Internal threads (NPT/BSPP/BSPT) with PTFE tape grooves
• Double-sealed stem with anti-blowout protection
2、Performance Features
• 40% easier maintenance than standard ball valves
• Bubble-tight shutoff (ANSI Class VI seat leakage)
• Reduced operating torque through low-friction seats
• Fire-safe design compliant with API 607 standards
• Anti-static continuity per IEC 60079-0
3、Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | 304SS / 316SS / WCB / CF8M |
| Pressure Rating | ANSI 150# - 600# (PN16-PN100) |
| Size Range | 1/2" - 4" (DN15-DN100) |
| Thread Standard | NPT / BSPP / BSPT |
| Temperature Range | -29°C to 232°C (-20°F to 450°F) |
| Seat Material | PTFE / RPTFE / Metal Seated (OPT) |
| Stem Design | One-piece forged with O-ring seals |
| End Connections | Female Threaded (FF/FM available) |
4、Industrial Applications
• Chemical processing plants (corrosive media transfer)
• LNG and cryogenic fluid handling systems
• Pharmaceutical CIP/SIP processes
• High-pressure steam distribution
• Marine and offshore piping systems
5、Quality Assurance
• ISO 9001:2015 certified production facility
• SIL 2 compliance documentation available
• 100% pressure testing per API 598
• Material traceability with EN 10204 3.1 certificates
• Optional NACE MR0175 compliance for sour service
6、Value-Added Services
• Custom stem extensions for insulated lines
• Electropolished interiors for ultra-pure applications
• Locking handle or gear operator configurations
