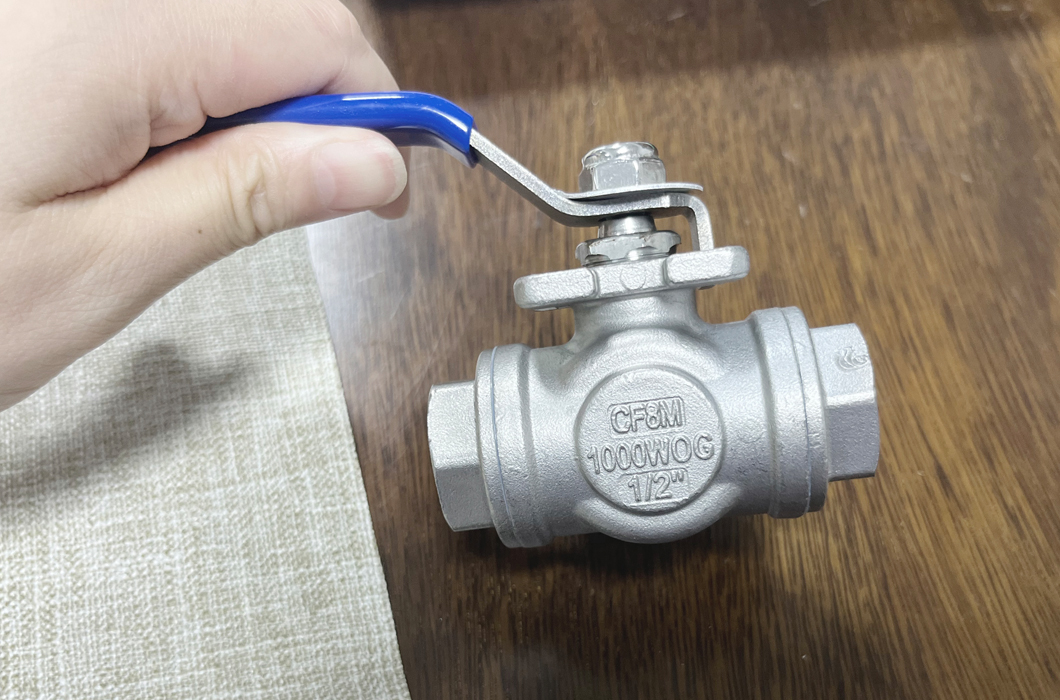

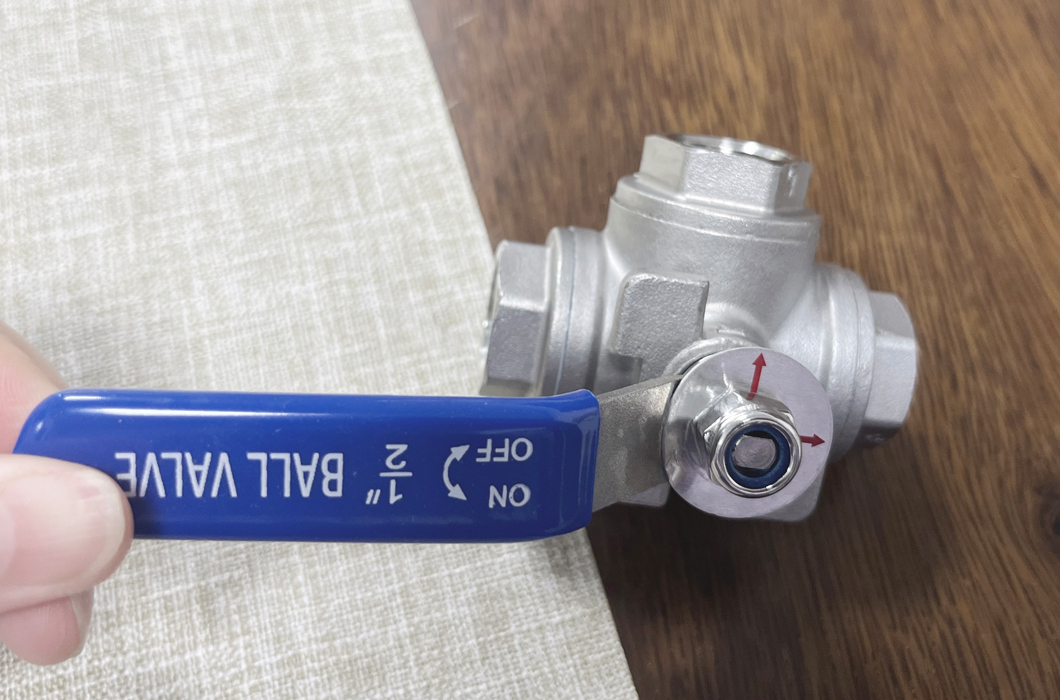

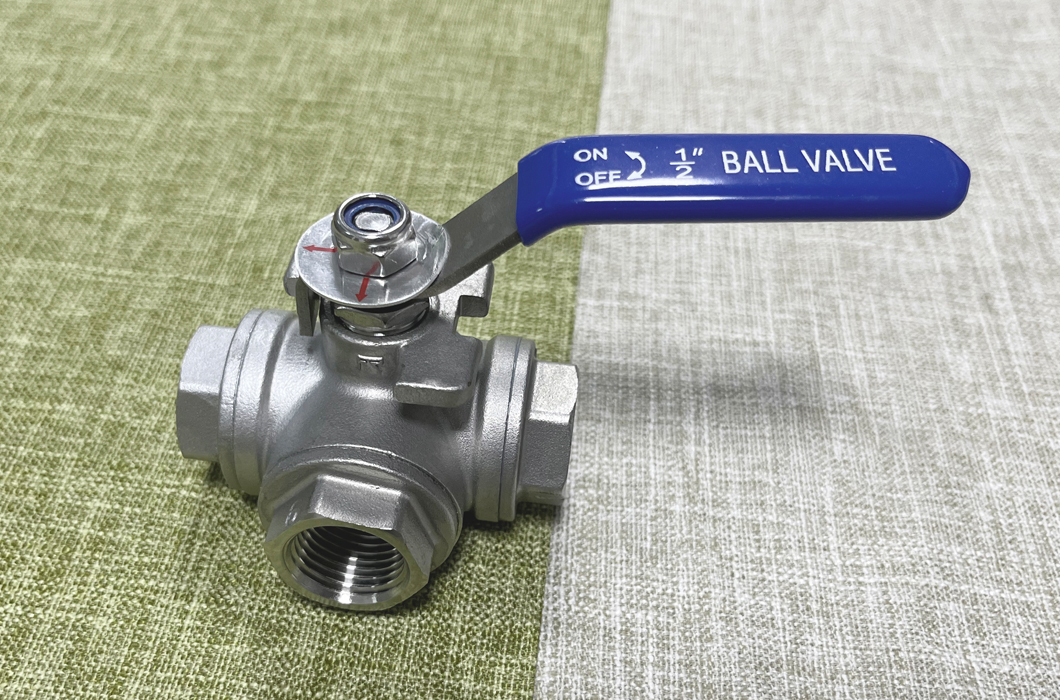

1. Key Features
• Three-way design (L-port/T-port) for flow diversion, mixing, or shut-off.
• Internal threaded ends (NPT/BSP) for leak-proof pipe connections.
• Stainless steel body (304/316) for corrosion resistance.
• PTFE seats ensure tight sealing and low torque operation.
• Locking handle (optional) for secure position control.
2. Advantages
• Space-saving design replaces multiple valves in complex systems.
• Smooth 90° operation for quick flow direction changes.
• Low maintenance with self-lubricating seals.
• Wide compatibility with water, oil, gas, and mild chemicals.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | 304/316 Stainless Steel |
| Port Type | L-Port (90° diversion) / T-Port (mixing) |
| Connection Type | NPT / BSP Internal Threads |
| Pressure Rating | 1000 PSI (Stainless) |
| Temperature Range | -29°C to 200°C (Stainless) |
| Seat Material | PTFE / RPTFE (Optional Metal Seats) |
4. Applications
• Chemical processing (acid/alkali flow control).
• HVAC systems (chilled/heated water distribution).
• Water treatment plants (filter backwashing, dosing).
• Industrial machinery (hydraulic/pneumatic systems).
5. Certifications
• ISO 9001:2015 – Quality management certified.
• SIL Certified – Safety Integrity Level compliance.
