1、Innovative Design Features
• Quick-load cartridge system for tool-free maintenance

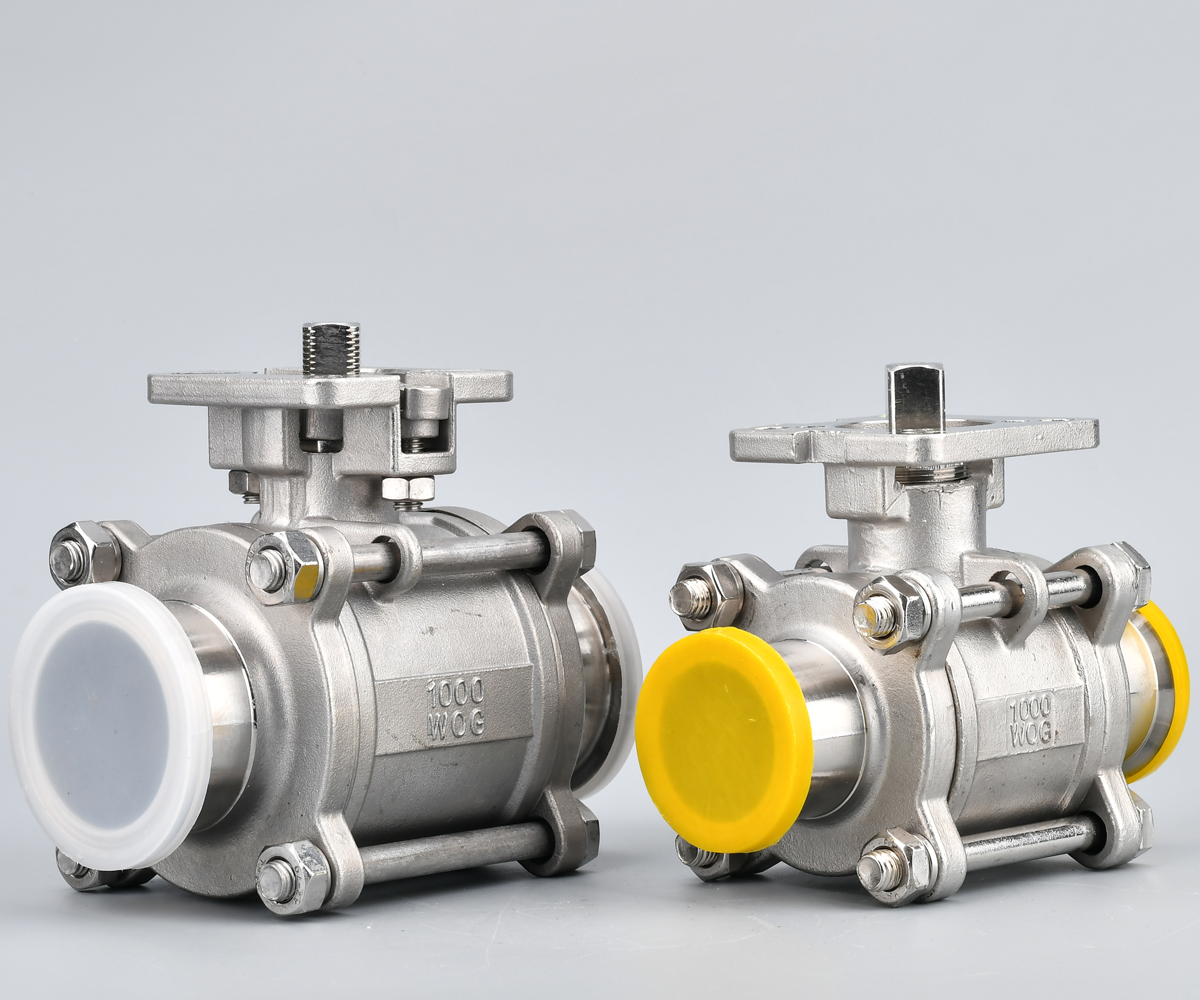

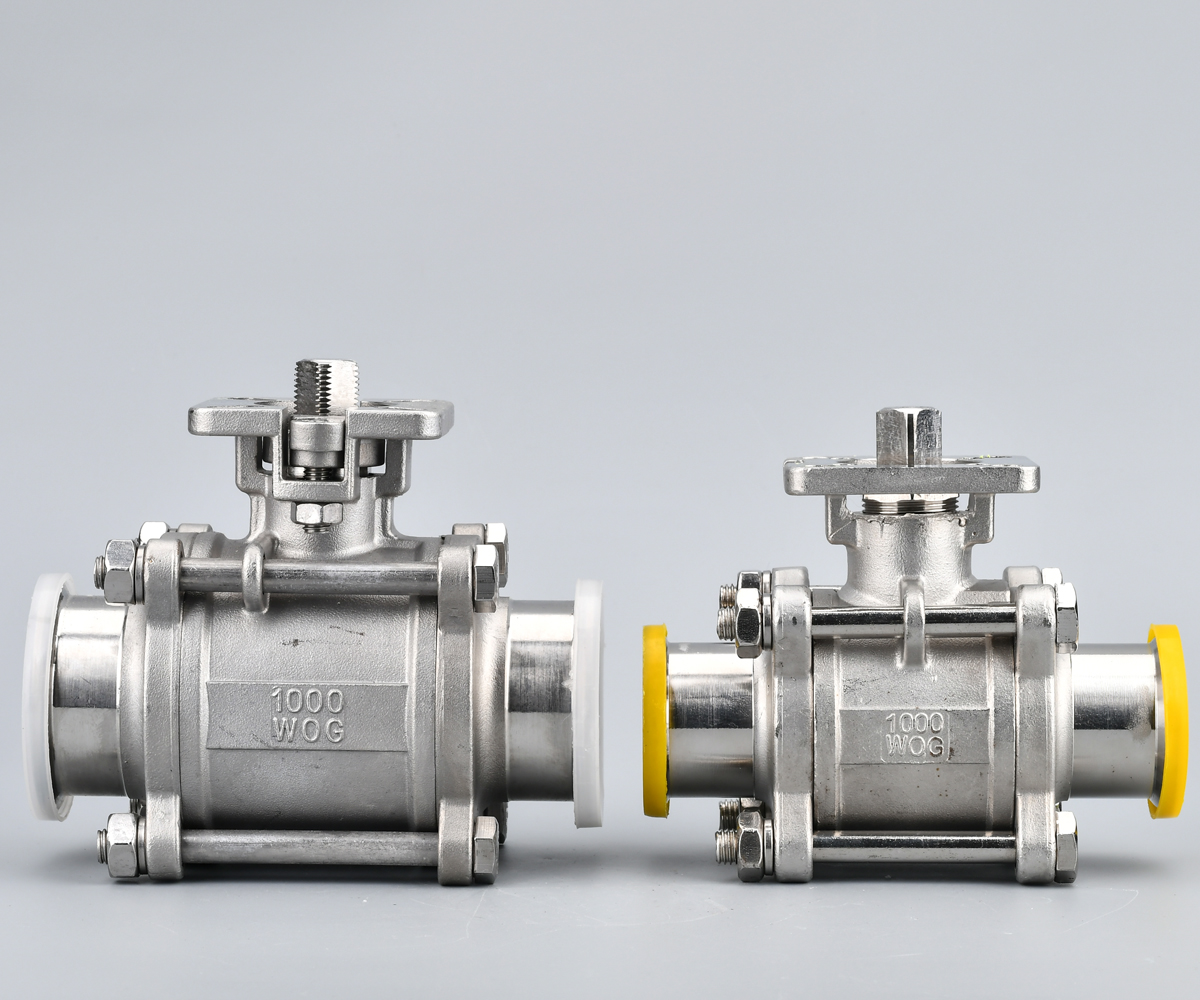

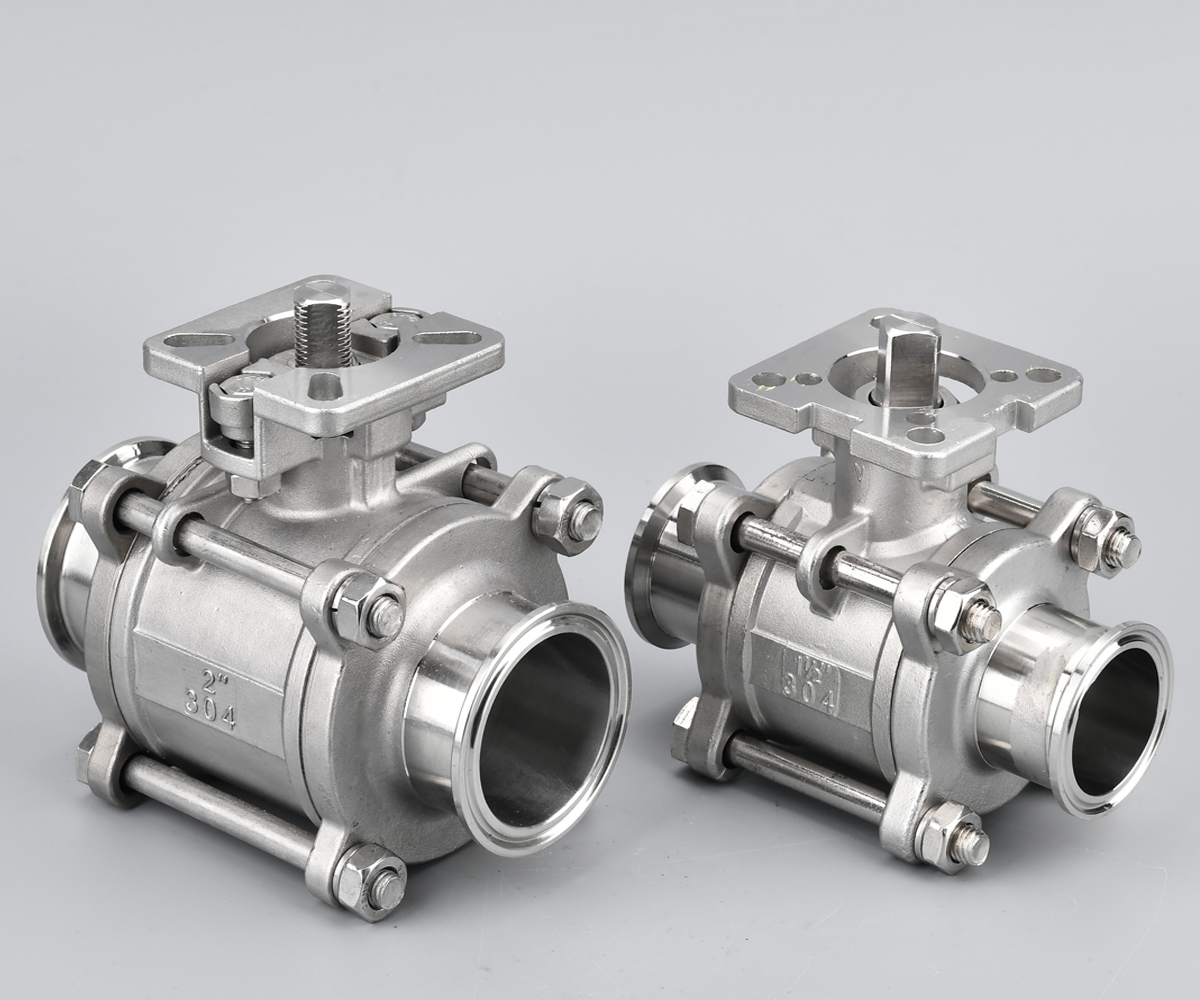

• Three-piece body with alignment lugs for perfect reassembly
• High platform meets ISO 5211 actuator mounting standard
• Visible stem position indicator with dual-scale markings
• Anti-blowout stem with triple-seal protection
2、Performance Advantages
• 5-minute seat replacement capability
• 1000,000+ cycle durability (certified per MSS SP-118)
• Fire-safe to API 607 (entire cartridge assembly)
• 50% lower operating torque than competitive models
• Full 100% port design maintains flow efficiency
3、Technical Parameters
| Parameter | Standard Model | High-Performance Option |
|---|---|---|
| Body Material | 316SS | Alloy 20 |
| Pressure Rating | 600 PSI (41 bar) | 1500 PSI (103 bar) |
| Temperature Range | -40°F to 450°F | -325°F to 650°F |
| Port Size | Full port | Venturi reduced port |
| Seat Material | PTFE | PEEK/Kel-F composite |
| Stem Seal | Graphite-filled | Live-loaded packing |
| Actuator Mount | ISO 5211 F05 | ISO 5211 F07 |
4、Industry-Specific Applications
• Pharmaceutical CIP/SIP systems requiring frequent sterilization
• Petrochemical batch processes with rapid changeover needs
• Power plant chemical injection systems
• Food & beverage processing with 3-A sanitary requirements
• Semiconductor UPW/HP gas delivery
5、Certifications & Compliance
• ISO 9001:2015 certified manufacturing
• SIL 2/3 capable with full documentation package
• NACE MR0175 compliant for sour service
• Cleanroom assembled (Class 100 available)
• Material certificates per EN 10204 3.2
6、Unique Service Benefits
• Field-upgradable to metal seats
• Cartridge exchange program available
• Laser-etched maintenance QR codes
