1. Structural Features

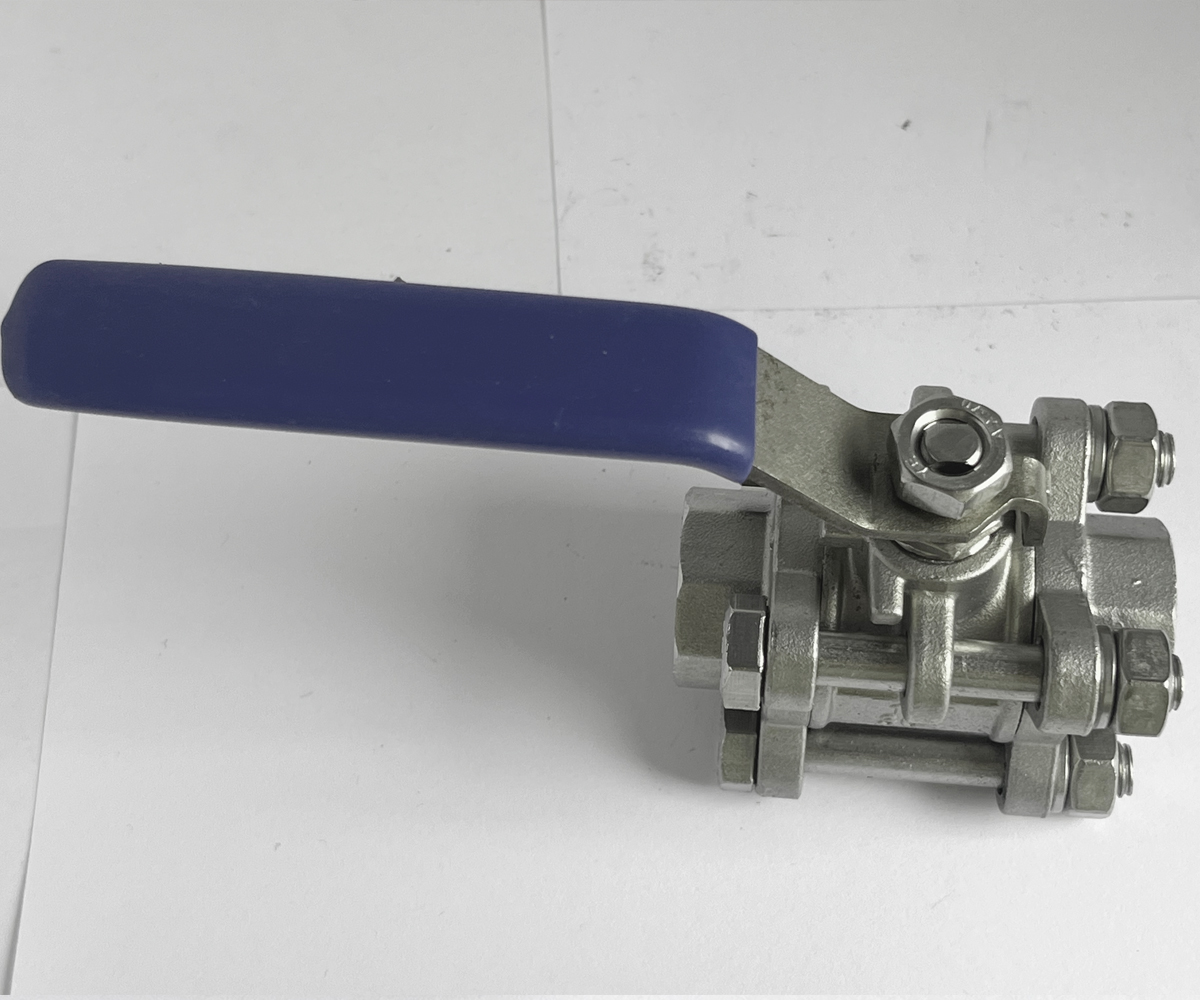

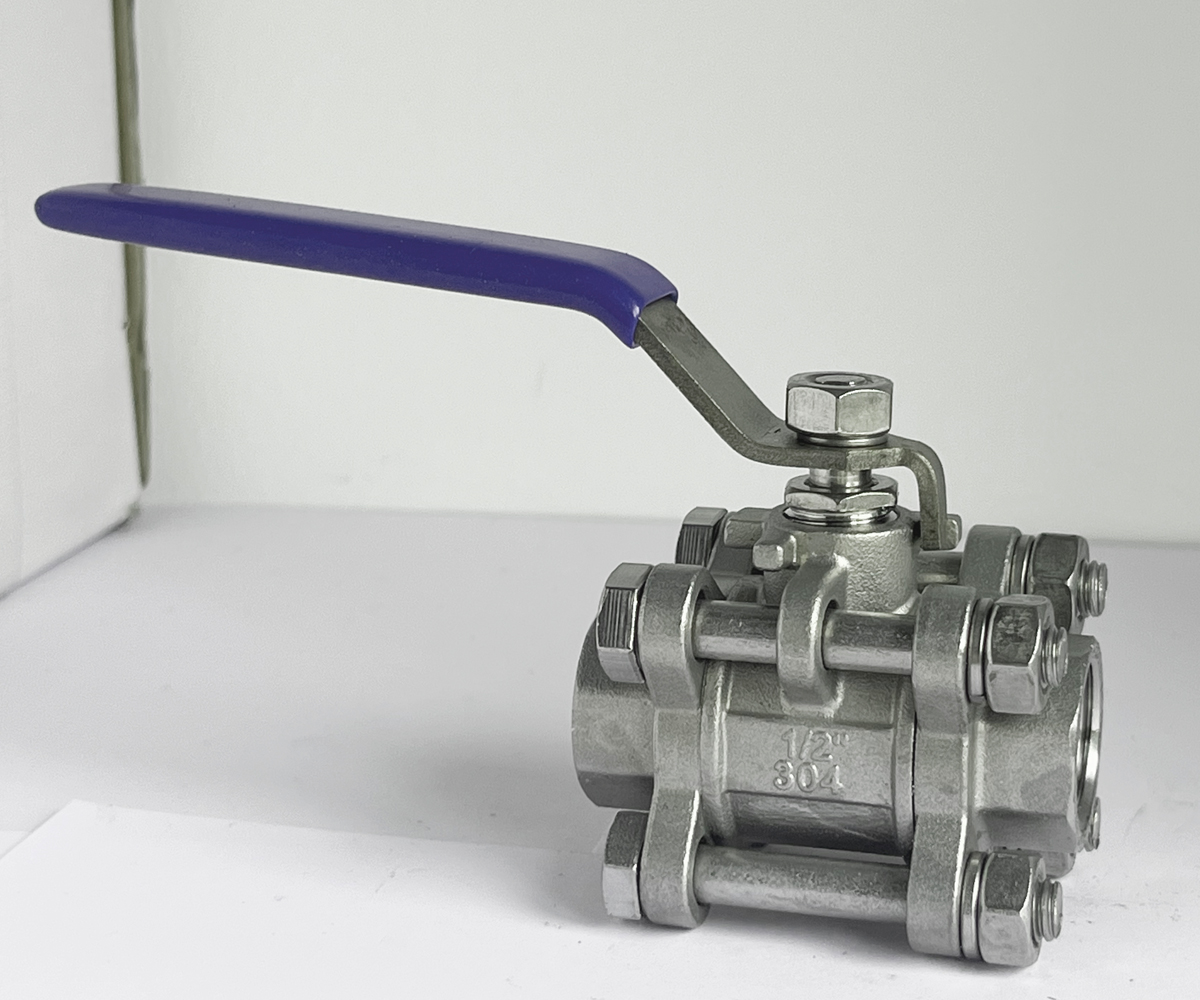

• Three-piece body design for easy maintenance and repair

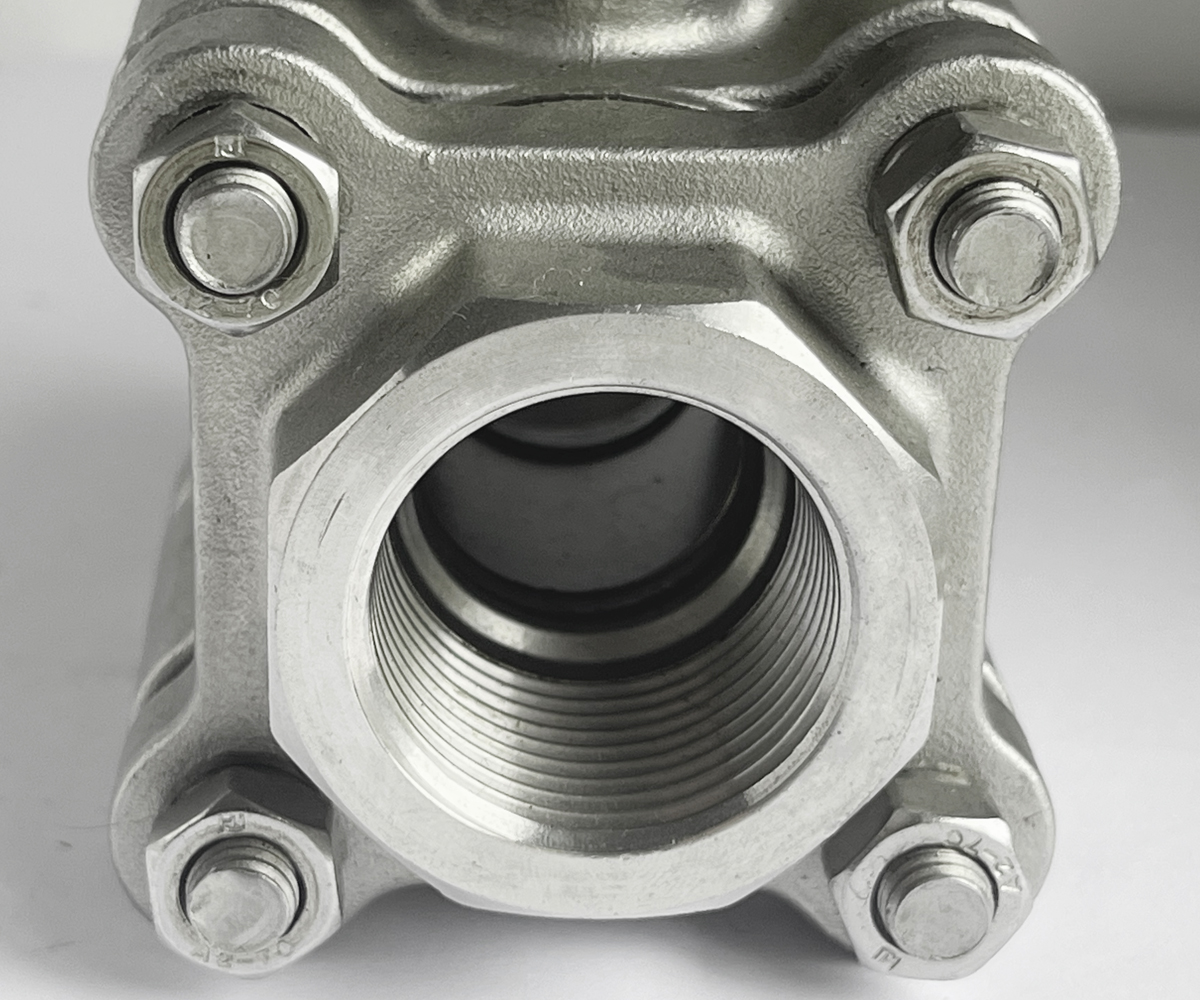

• Internal threaded (FxF) connections for secure piping integration
• Blow-out proof stem for enhanced safety
• Fire-safe design available (upon request)
• Low torque operation for effortless control
2. Performance Advantages
• Zero-leakage performance with PTFE/RPTFE seats
• High pressure rating up to 1000 PSI (69 BAR)
• Wide temperature range from -29°C to 200°C
• Corrosion-resistant material options (SS304/316, WCB)
• Full-port design for minimal pressure drop
3. Technical Parameters
| Specification | Details |
|---|---|
| Body Material | SS304/SS316/WCB |
| Pressure Rating | 1000 PSI (69 BAR) |
| Temperature Range | -29°C to 200°C |
| Connection Type | BSPT/NPT Internal Thread |
| Port Type | Full Port/Reduced Port |
| Seat Material | PTFE/RPTFE/Metal |
| Operation | Manual Lever |
| Size Range | 1/4" to 4" (DN8-DN100) |
4. Industry Applications
• Oil & gas processing and transportation
• Chemical and pharmaceutical manufacturing
• Food & beverage processing systems
• Water treatment and distribution networks
• Power generation and HVAC systems
5. Quality Certifications
• ISO 9001 Certified Manufacturing
• SIL Safety Certified
6. Additional Options
• Locking handle for safety control
• Stem extension for difficult-to-access installations
• Anti-static device for hazardous environments
