1、Structural Advantages

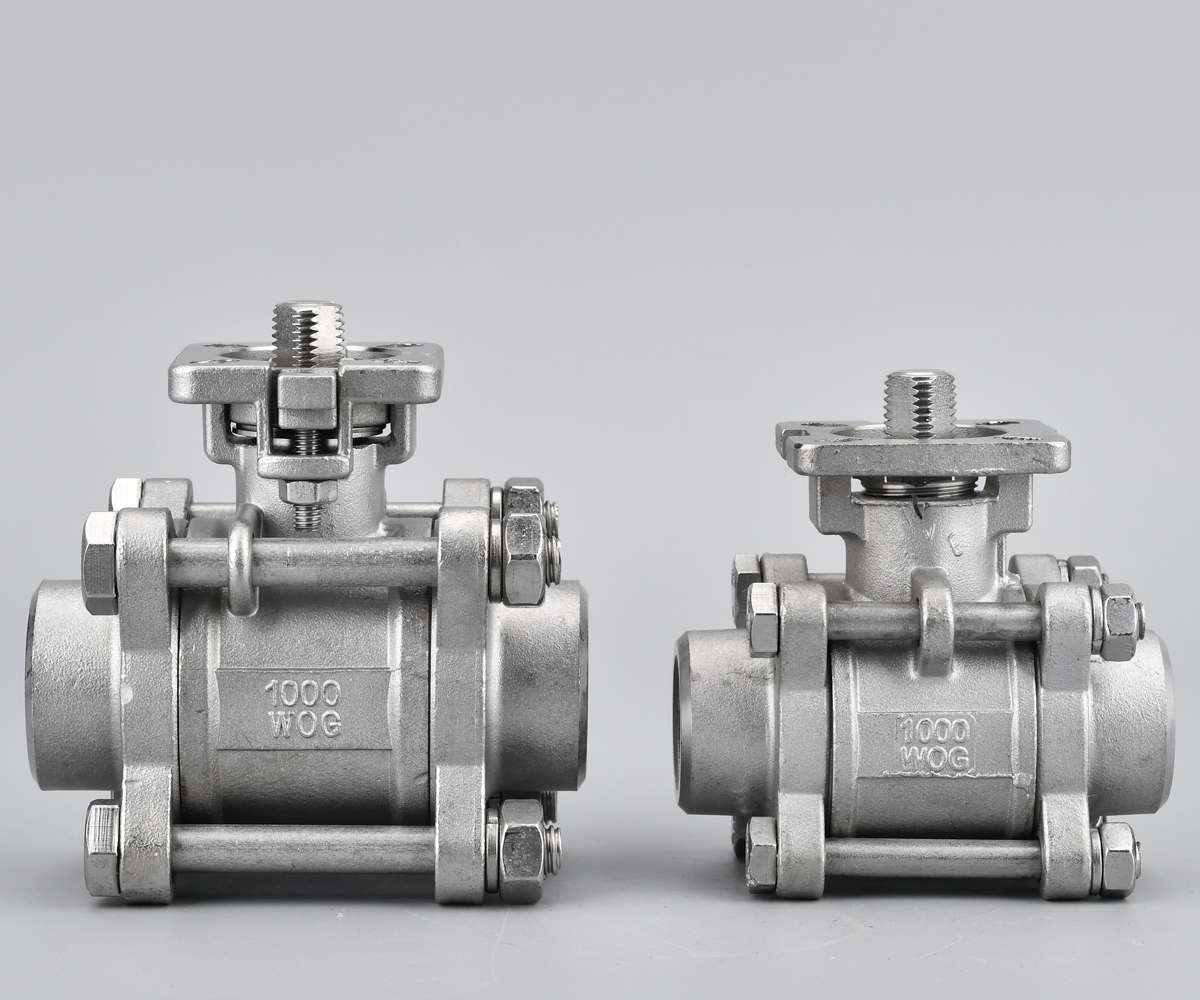

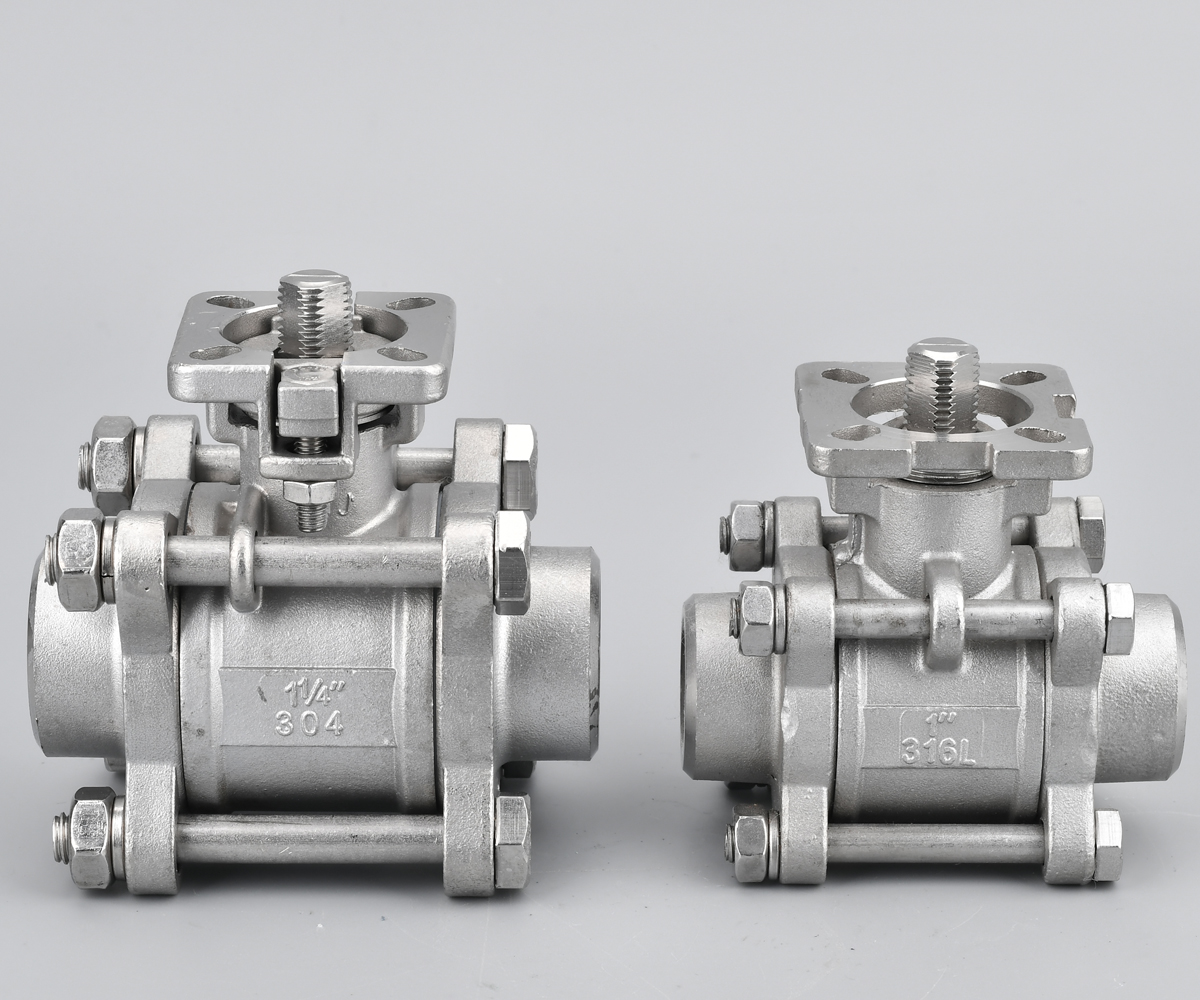

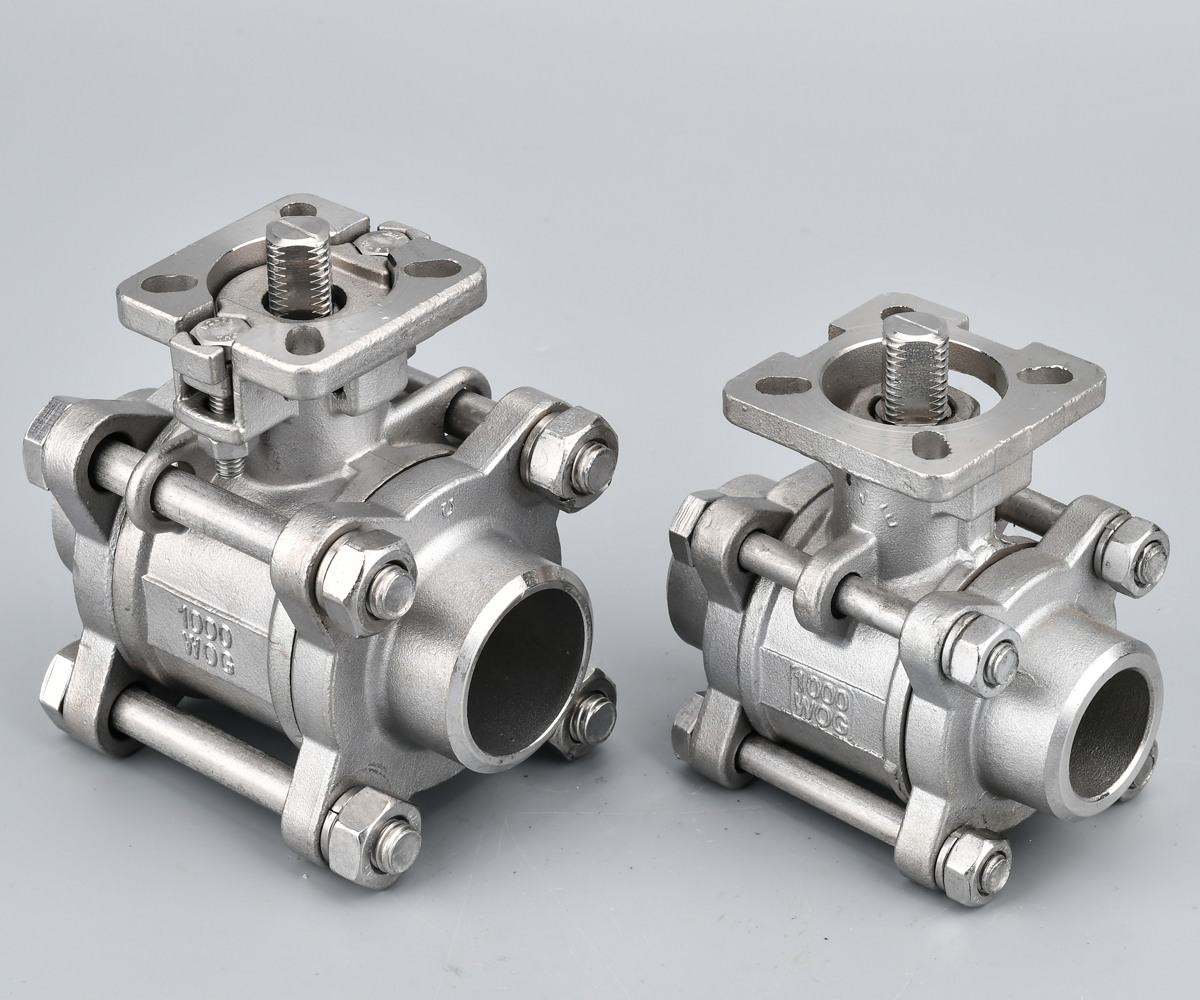

• Three-piece bolted body for in-line maintenance access
• Flat welding ends (BW) for seamless pipeline integration
• Full-bore design maintains 100% flow efficiency
• Fire-safe construction per API 607 standards
• Double-sealed stem with anti-blowout protection
2、Performance Benefits
• 30% stronger weld joints than standard designs
• Bubble-tight shutoff (ANSI Class VI seat leakage)
• Reduced operating torque through precision bearings
• High-cycle durability (200,000+ operations tested)
• Zero cavity design prevents media entrapment
3、Technical Parameters
| Parameter | Standard Model | High-Purity Option |
|---|---|---|
| Body Material | 316SS | 316L SS Electropolished |
| Pressure Rating | 1000 PSI (69 bar) | 1500 PSI (103 bar) |
| Size Range | ½" – 12" | ½" – 8" |
| End Connection | Butt Weld (BW) | Orbital Welding Ready |
| Temperature Range | -40°F to 450°F | -60°F to 600°F |
| Seat Material | RPTFE | UHMWPE |
| Ball Finish | 32 Ra μm | 16 Ra μm Mirror Finish |
4、Industry Applications
• Pharmaceutical – CIP/SIP processes
• Semiconductor – ultra-high purity gas systems
• Oil & Gas – pipeline isolation and blending
• Chemical Processing – corrosive media handling
• Power Generation – steam and coolant control
5、Quality Certifications
• ISO 9001:2015 certified manufacturing
• SIL 2/3 compliance documentation available
• ASME B16.34 pressure testing compliance
• Material Traceability (EN 10204 3.2 certificates)
6、Specialized Services
• X-ray weld inspection reports available
• Cleanroom packaging (Class 100 optional)
• Actuator pre-assembly with ISO 5211 platform
