1、Key Features

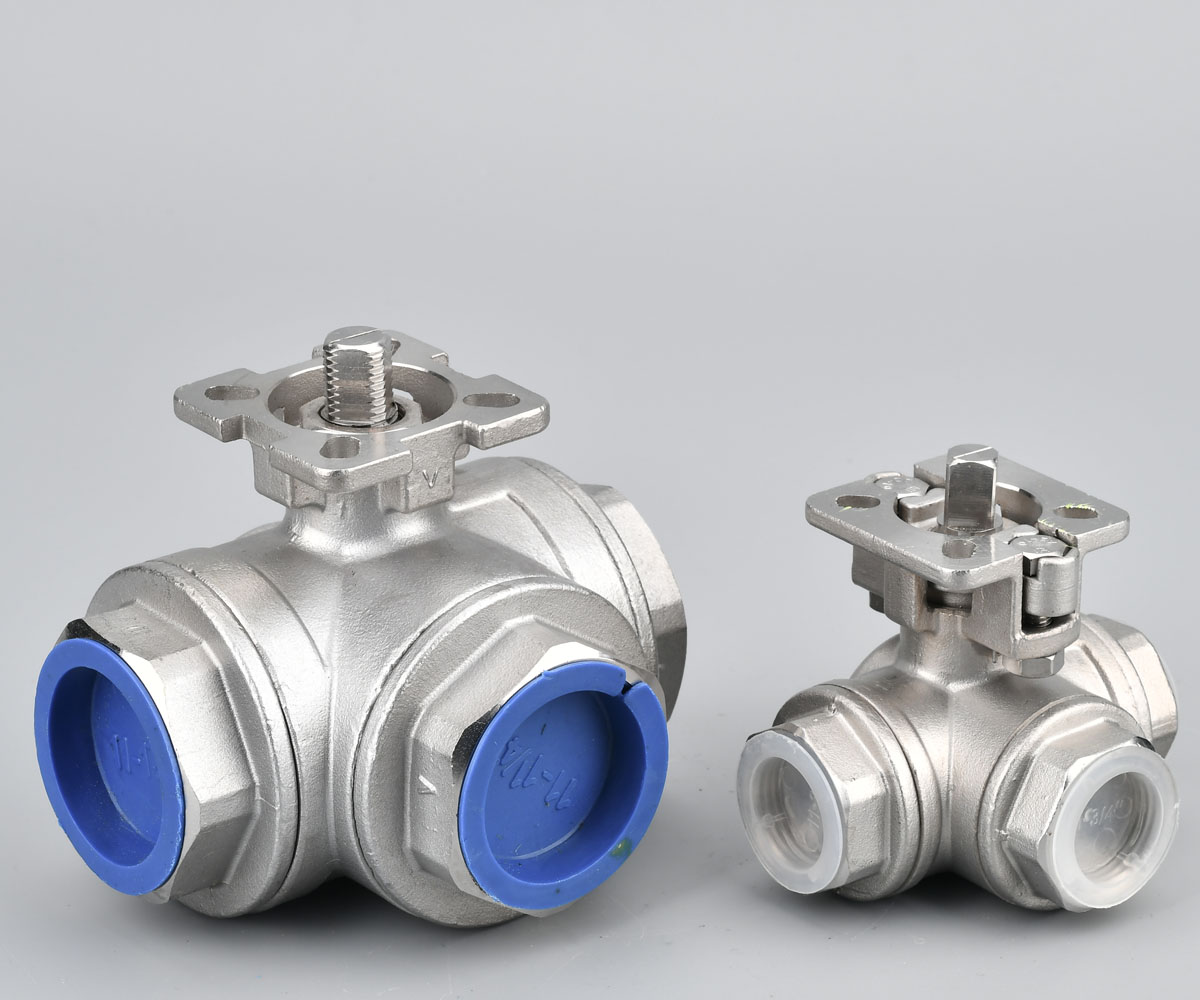

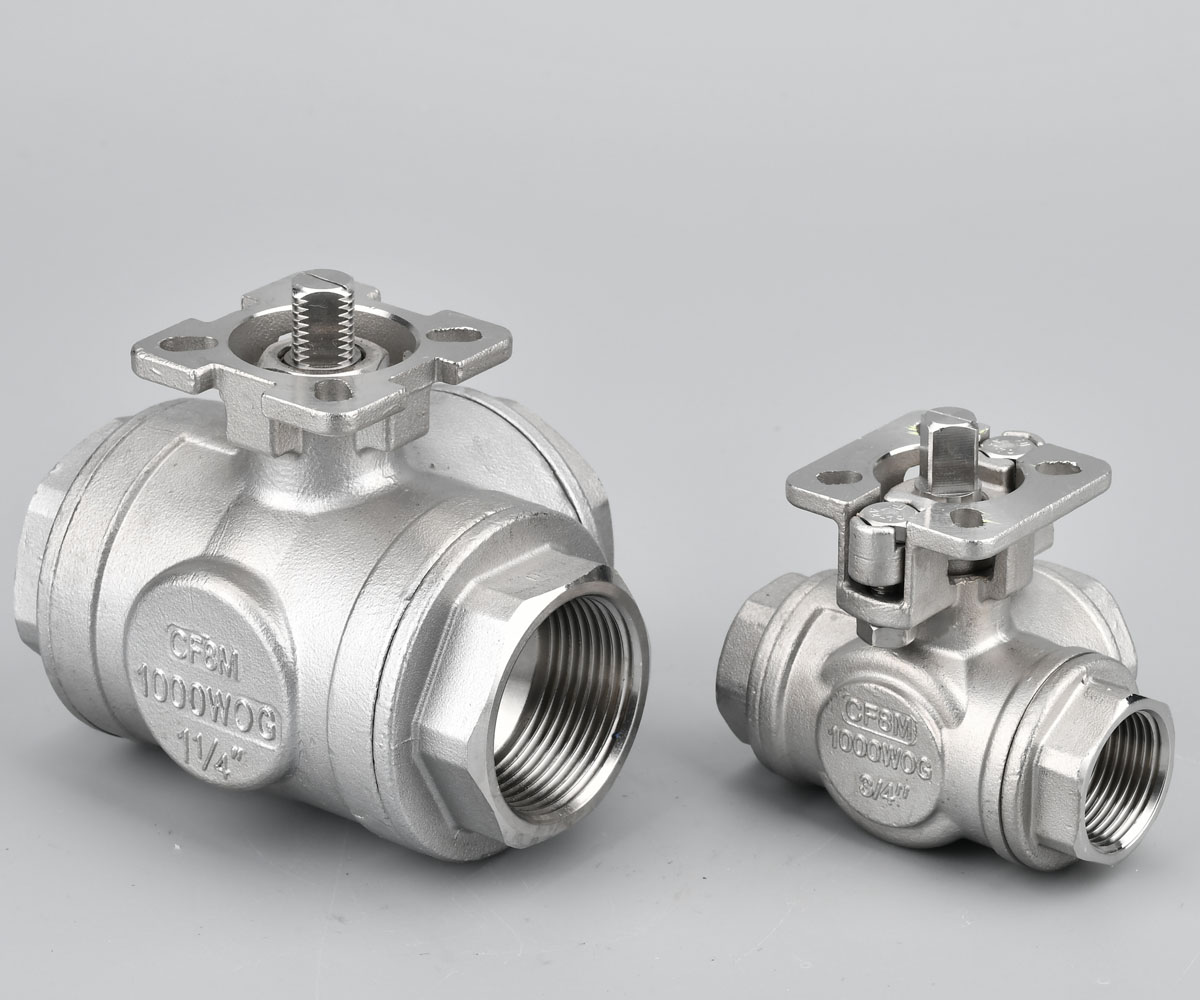

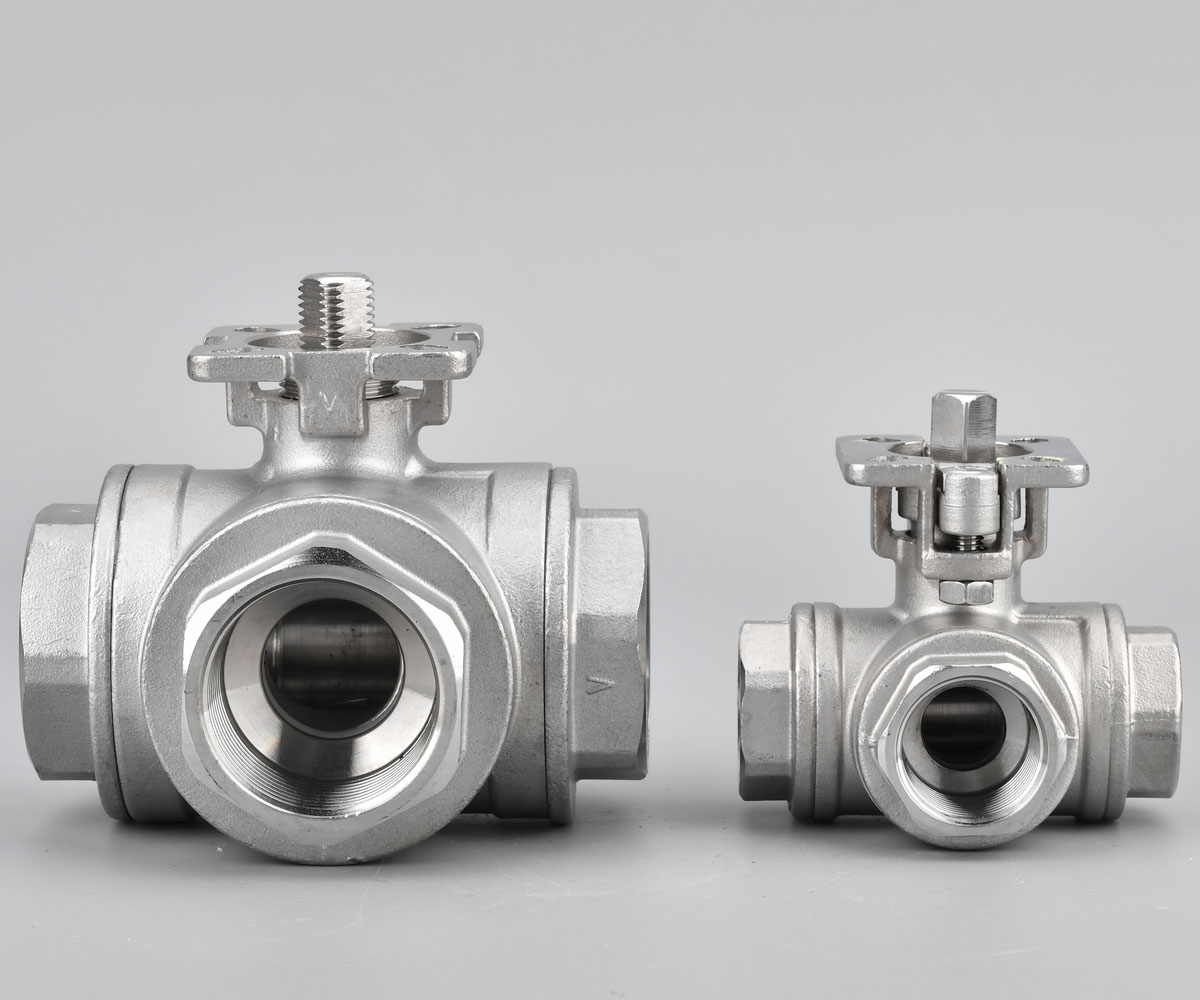

• Three-way flow control (L-port or T-port configurations)
• High platform design (ISO 5211) for direct actuator mounting
• Full-bore or reduced-port options for optimal flow efficiency
• Threaded (NPT/BSP) or flanged end connections
• Anti-static & fire-safe design (API 607 compliant)
• Blowout-proof stem with triple O-ring sealing
2、Performance Advantages
• 50% faster flow switching compared to gate valves
• Zero-leakage sealing (ANSI Class VI shutoff)
• Low operating torque for smooth manual or automated operation
• Interchangeable seats & seals for easy maintenance
• High-cycle durability (100,000+ operations)
3、Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | 304SS / 316SS / CF8M |
| Port Type | L-Port (diverting) / T-Port (mixing) |
| Pressure Rating | 1000 PSI (69 bar) at 100°C |
| Size Range | ½" – 4" (DN15 – DN100) |
| Connection Type | NPT / BSPP / BSPT / RF Flange |
| Temperature Range | -40°F to 450°F (-40°C to 232°C) |
| Seat Material | PTFE / RPTFE / Metal (optional) |
| Handle Options | Lever / Gearbox / Actuator-ready |
4、Application Scenarios
• Chemical processing – reagent mixing & distribution
• HVAC systems – heating/cooling line switching
• Water treatment – multi-tank diversion
• Oil & gas – bypass and blending systems
• Pharmaceutical – CIP/SIP flow control
5、Certifications & Compliance
• ISO 9001:2015 certified manufacturing
• SIL 2/3 capable with full validation docs
• Fire-safe tested per API 607
• Material traceability (EN 10204 3.1 certs)
6、Customization & Support
• Electric/pneumatic actuator pre-assembly
• Extended stems for insulated pipelines
