1、Key Features

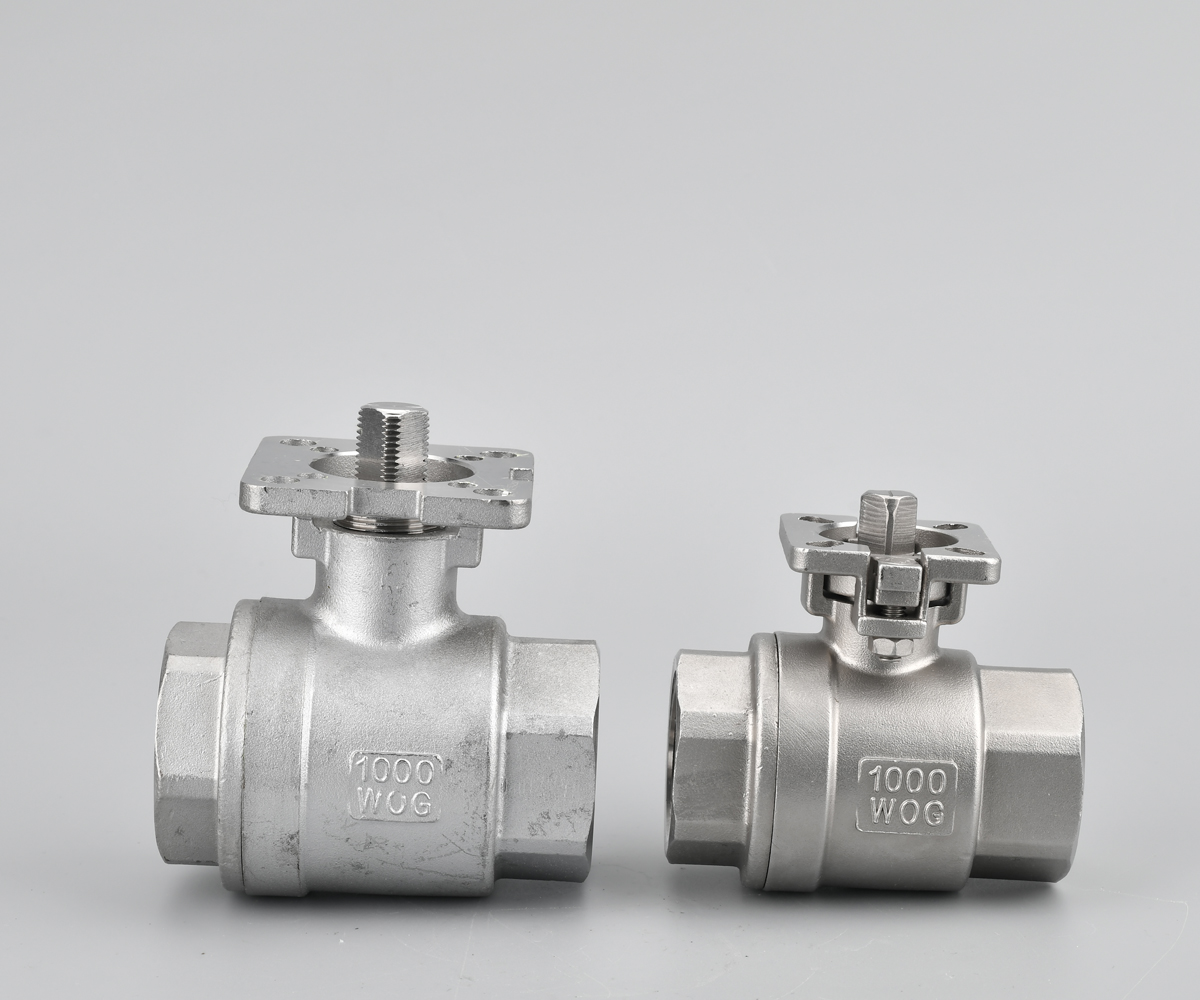

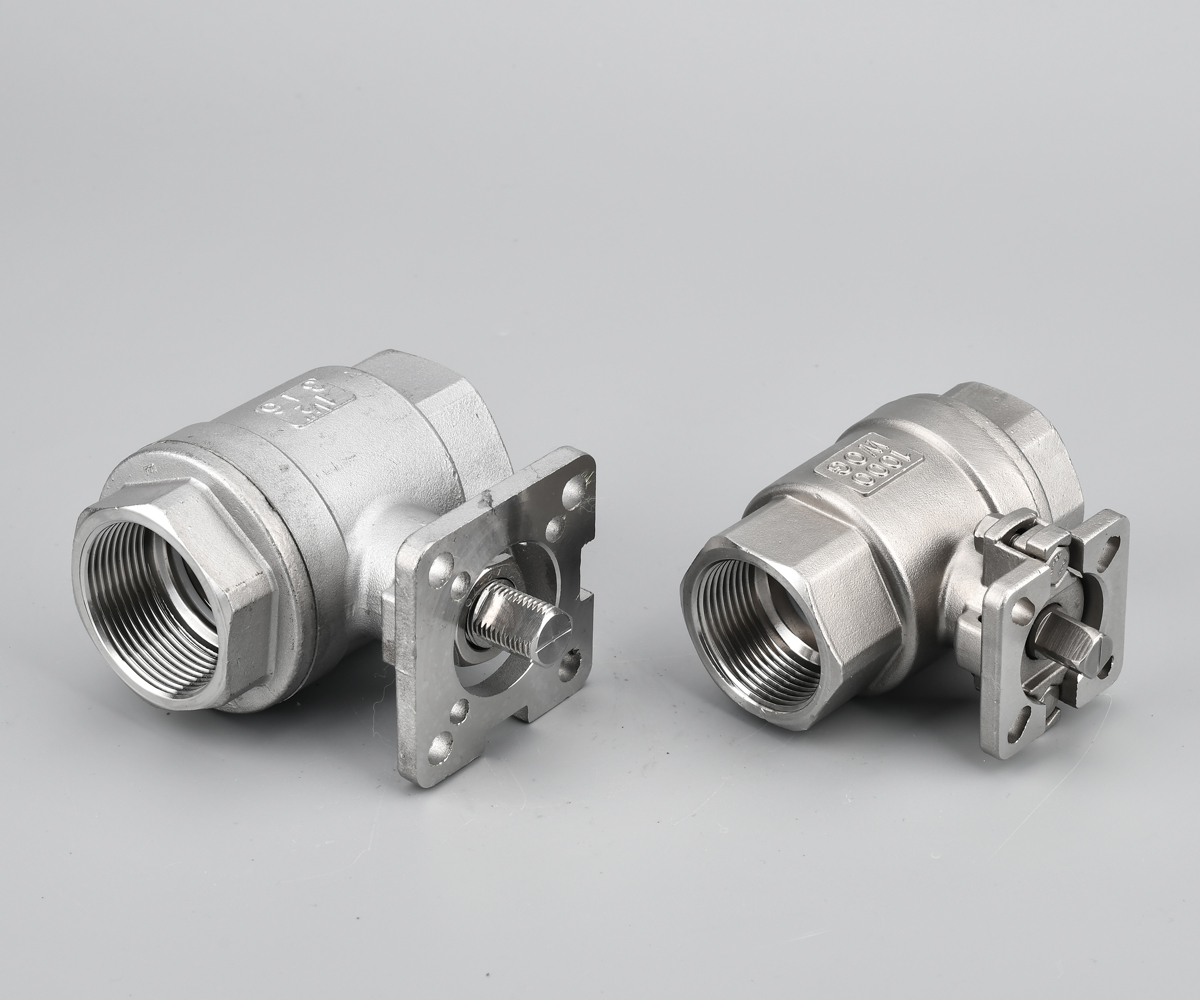

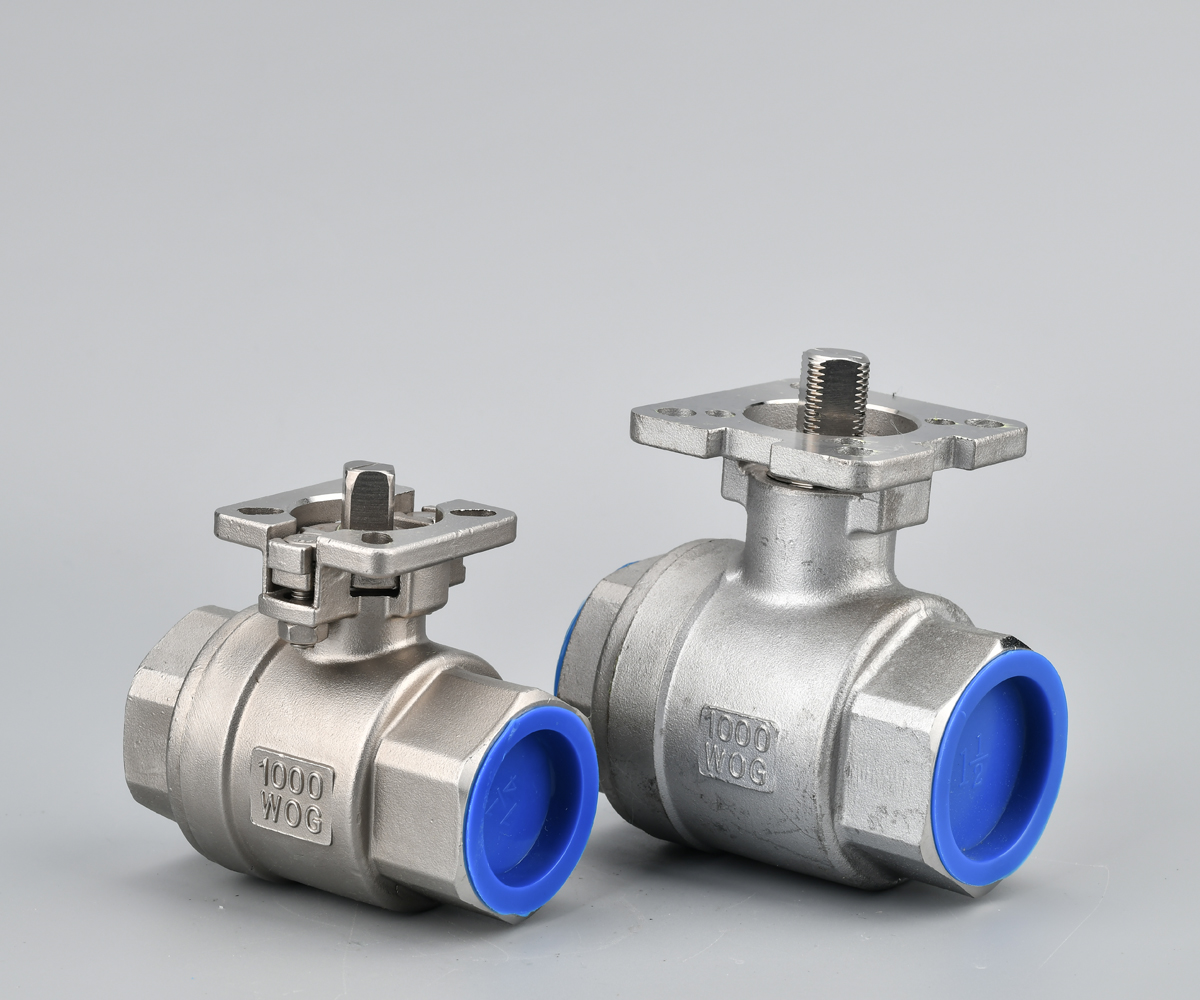

• Two-piece body for easy maintenance and stem access
• High platform design supports pneumatic/electrical actuators
• Full-port bore (100% flow area) for minimal pressure drop
• Internal threads (NPT/BSPP/BSPT) for secure piping connections
• Anti-static device ensures safe operation with flammable media
• Fire-safe stem seal (API 607 compliant, optional)
2、Performance Advantages
• 30% higher pressure rating vs. standard threaded ball valves
• Zero-leakage sealing (ANSI Class VI seat leakage standard)
• Reduced operating torque due to PTFE-encapsulated ball
• Interchangeable trim parts for cost-effective repairs
• Visual position indicator on handle for quick status checks
3、Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | 304 SS / 316 SS / WCB |
| Pressure Rating | 1000 PSI (69 BAR) at 100°C |
| Temperature Range | -29°C to 200°C (-20°F to 392°F) |
| Thread Standards | NPT / BSPP / BSPT (Female) |
| Port Type | Full port |
| Seat Material | RPTFE / PEEK (High-Temp Option) |
| Stem Seal | Graphite-filled PTFE |
| Handle Options | Lever / Lockable Handle / Gearbox |
4、Application Scenarios
• Oil & gas pipeline isolation
• Chemical processing (acid/alkali transfer)
• Power plants (coolant control)
• Shipbuilding (marine fuel lines)
• Water treatment (high-pressure dosing)
5、Certifications & Compliance
• ISO 9001:2015 certified manufacturing
• SIL 2 safety compliance (documentation available)
• Material Test Reports (MTR) per EN 10204 3.1
• Hydrostatic tested per API 598
6、Service & Customization
• Actuator-ready platform (ISO 5211 mounting pad)
• Electropolished 316SS for ultra-clean applications
• Extended stem options for insulated pipelines
