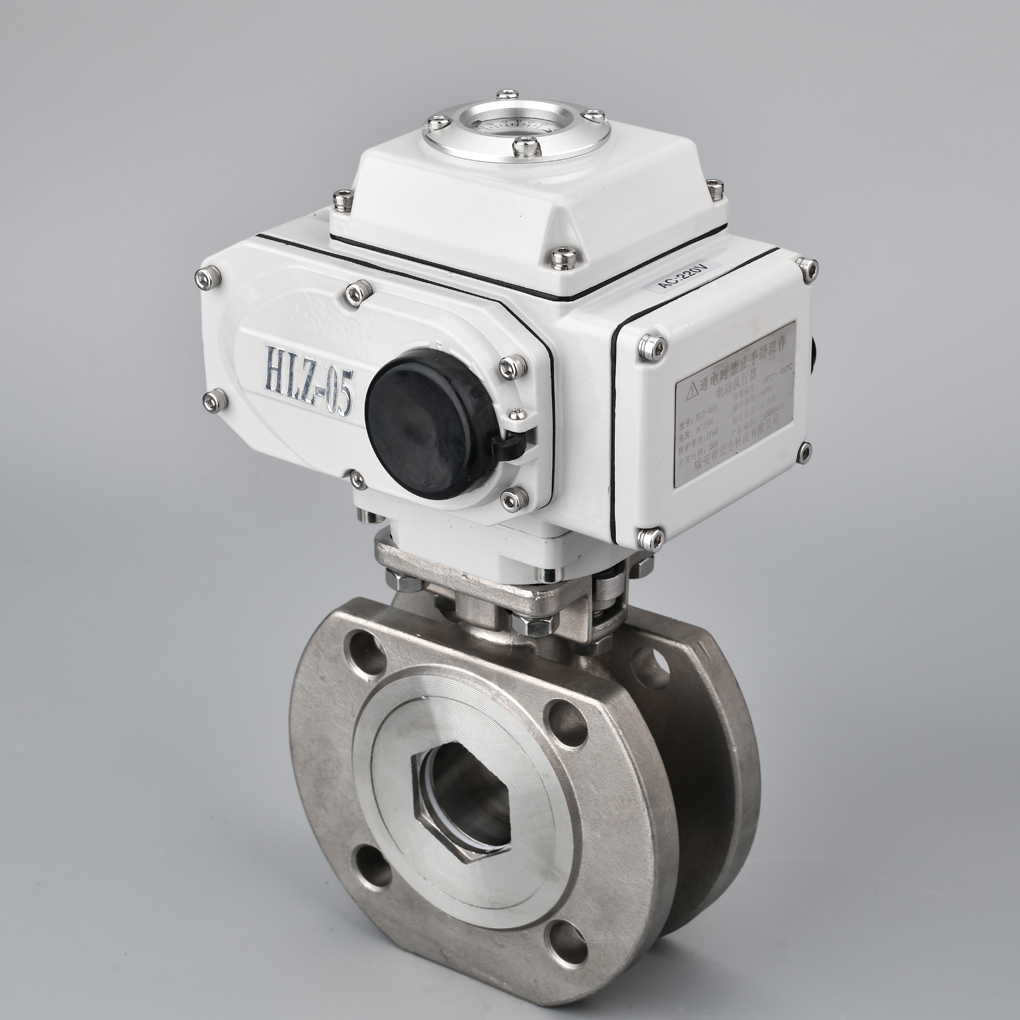

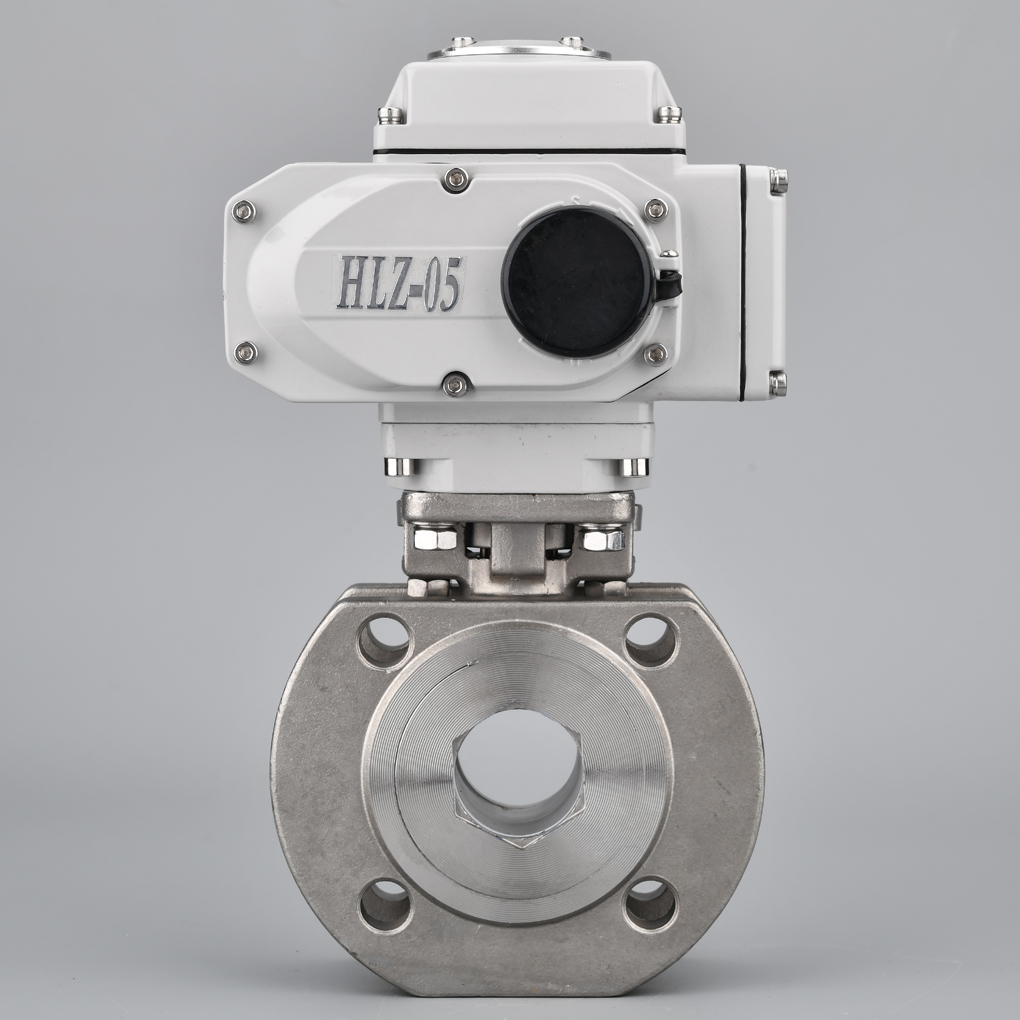

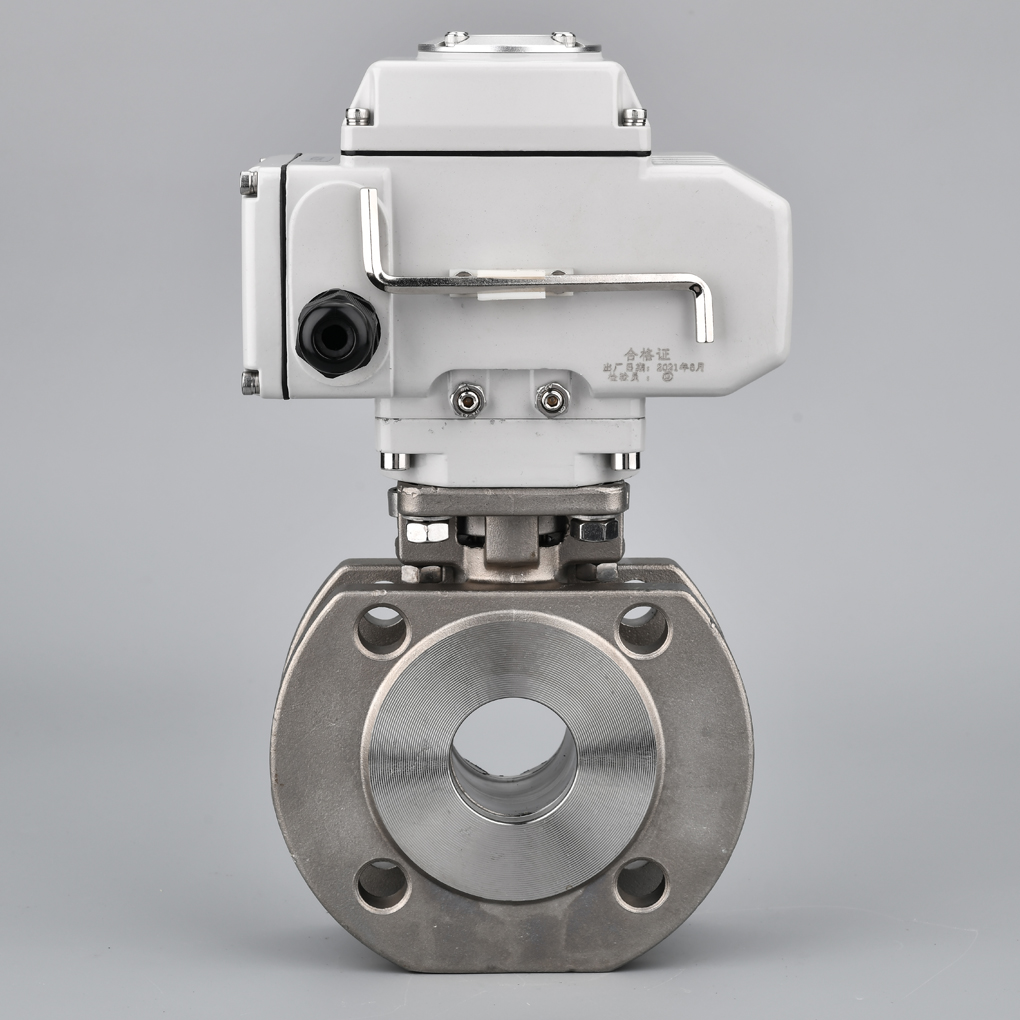

1. Product Features
• Ultra-Thin Profile: 50-60% thinner than standard ball valves for tight spaces
• Full-Bore Design: Maintains 100% pipe ID for minimal pressure drop
• Electric Actuation: Smooth quarter-turn operation with position feedback
• Bi-Directional Sealing: Reliable performance in either flow direction
• Low Torque Design: Reduces actuator size and energy consumption
2. Key Advantages
• Space Optimization: Ideal for compact piping arrangements
• Easy Installation: Fits between standard ANSI/DIN flanges
• Maintenance-Free: Permanent lubrication for long service life
• Lightweight Construction: 30-40% lighter than conventional valves
• Cost Effective: Reduces structural support requirements
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Body Material | CF8M (316SS), WCB, Alloy 20 |
| Face-to-Face | ANSI B16.10 Short Pattern |
| Pressure Class | 150# / PN16 (300# / PN25 optional) |
| Temperature | -20°C to 180°C (PTFE seats) |
| Size Range | DN50 to DN300 (2" to 12") |
| Actuator Type | On/Off or Modulating |
| Voltage | 24VDC, 110V/220V/380VAC |
| Seat Material | PTFE, RPTFE, PEEK (high-temp option) |
4. Applications
• Compact HVAC and district energy systems
• Water and wastewater treatment plants
• Shipboard piping systems
• Mobile equipment and skid-mounted systems
• Food & beverage processing lines
• Pharmaceutical and chemical transfer
5. Certifications
• ISO 9001: Quality Management System
• SIL 2/3: Functional Safety Certification
• Fire Safe: API 607/6FA compliant (optional)
6. Special Options
• Anti-blowout stem design
• Locking handle for manual override
• Position indicator and limit switches
• Explosion-proof actuator (ATEX available)
• Special coatings for corrosive service
