1. Structural Design
4. Application Scenarios

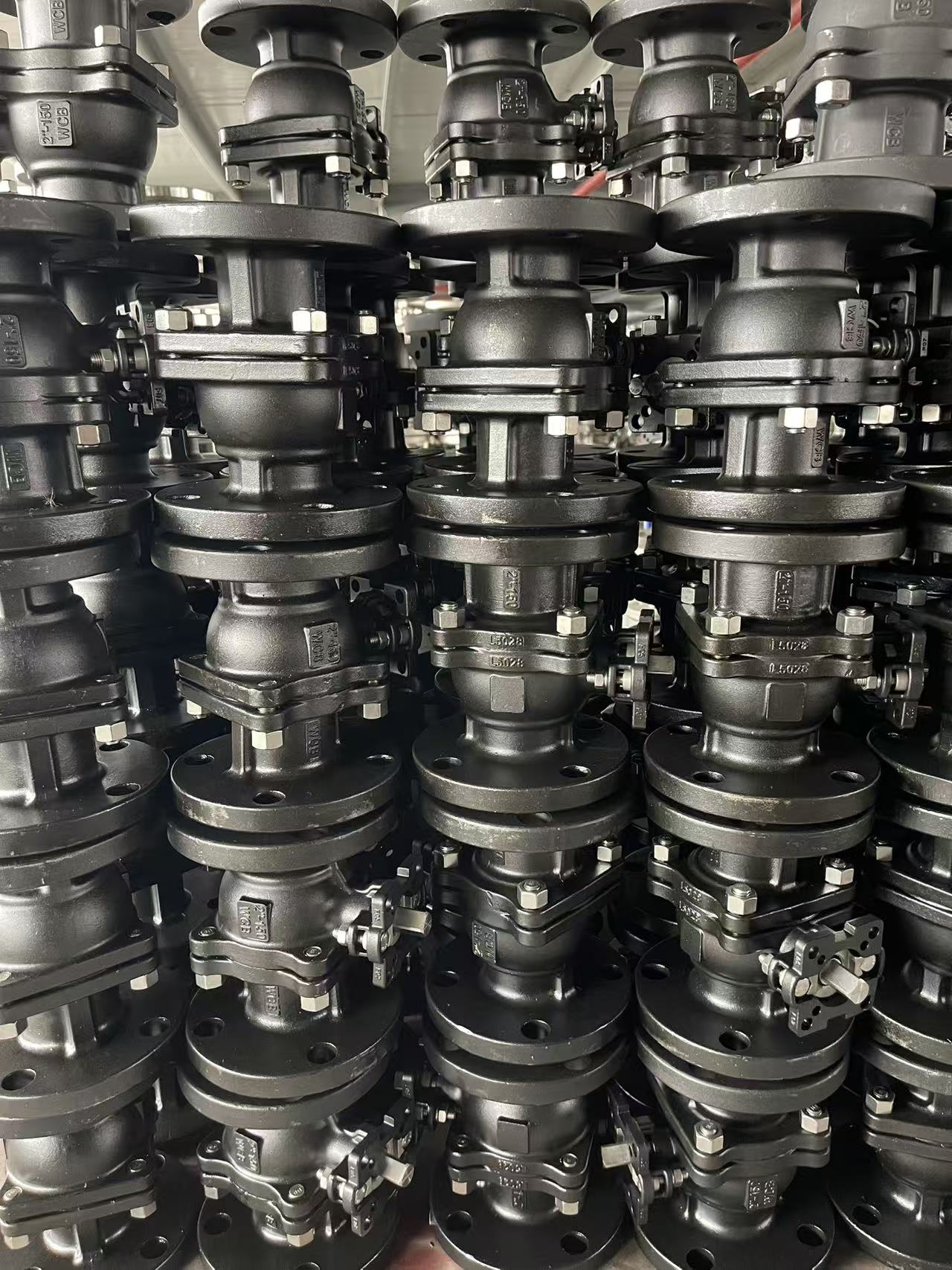

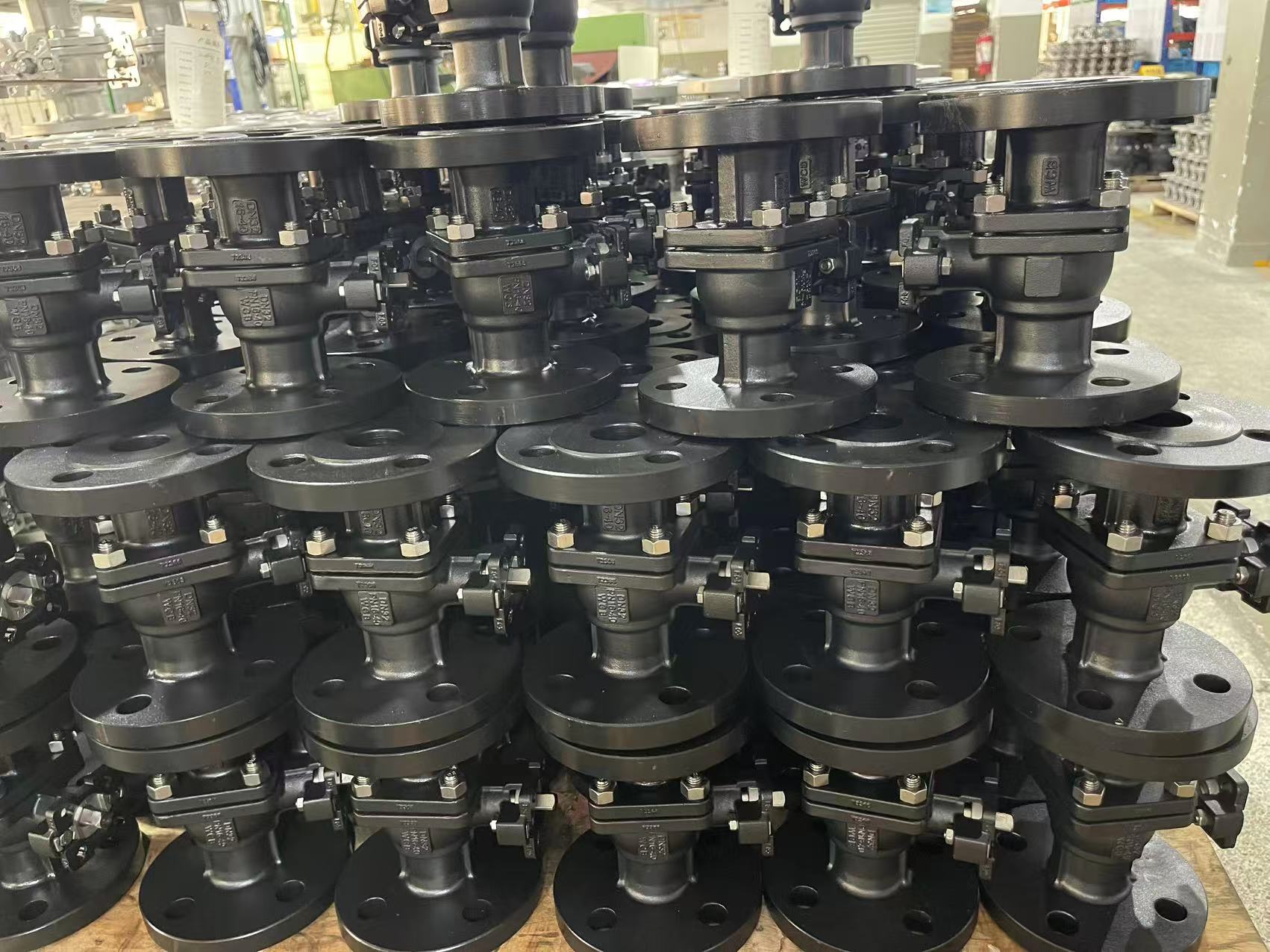

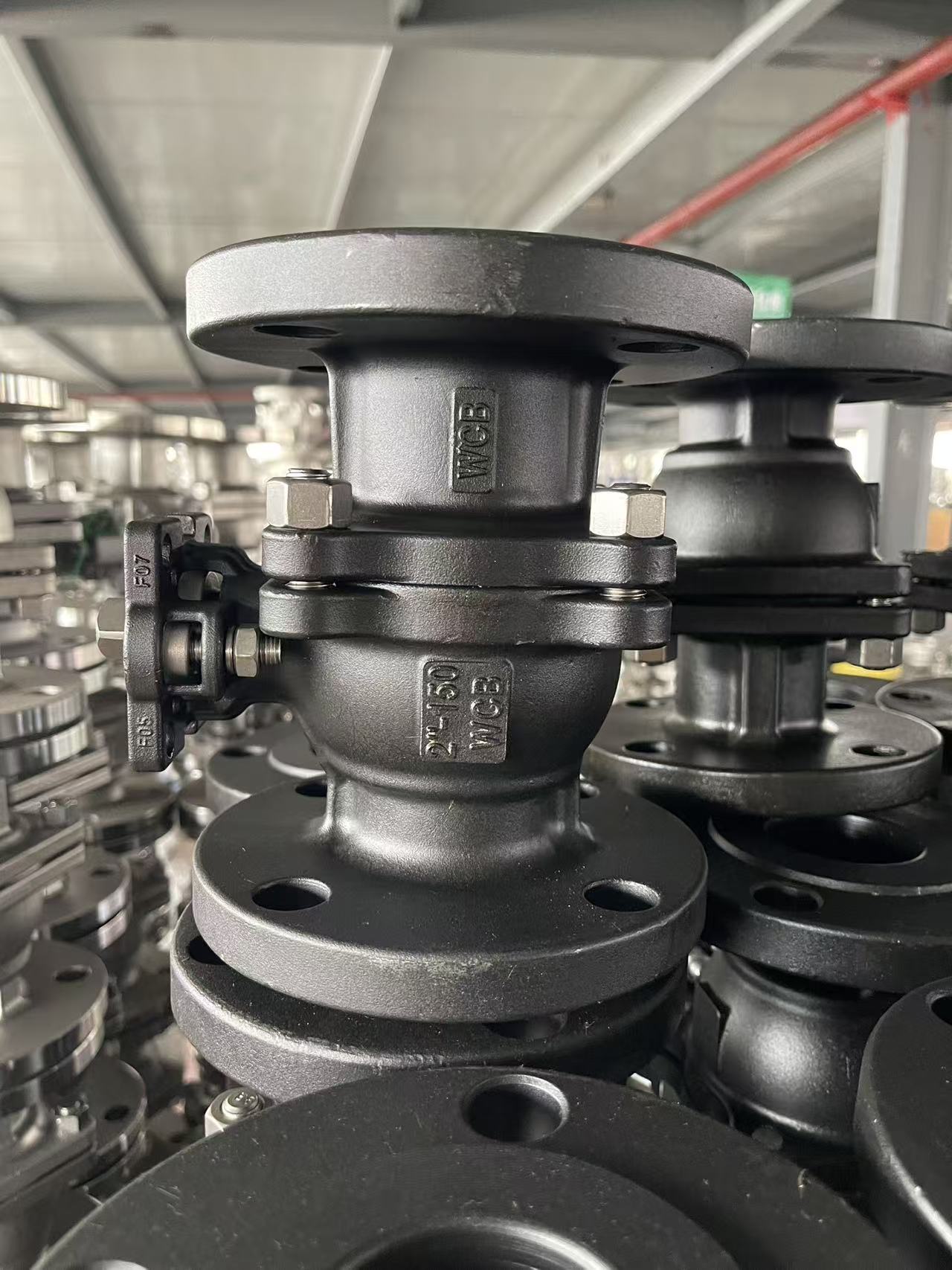

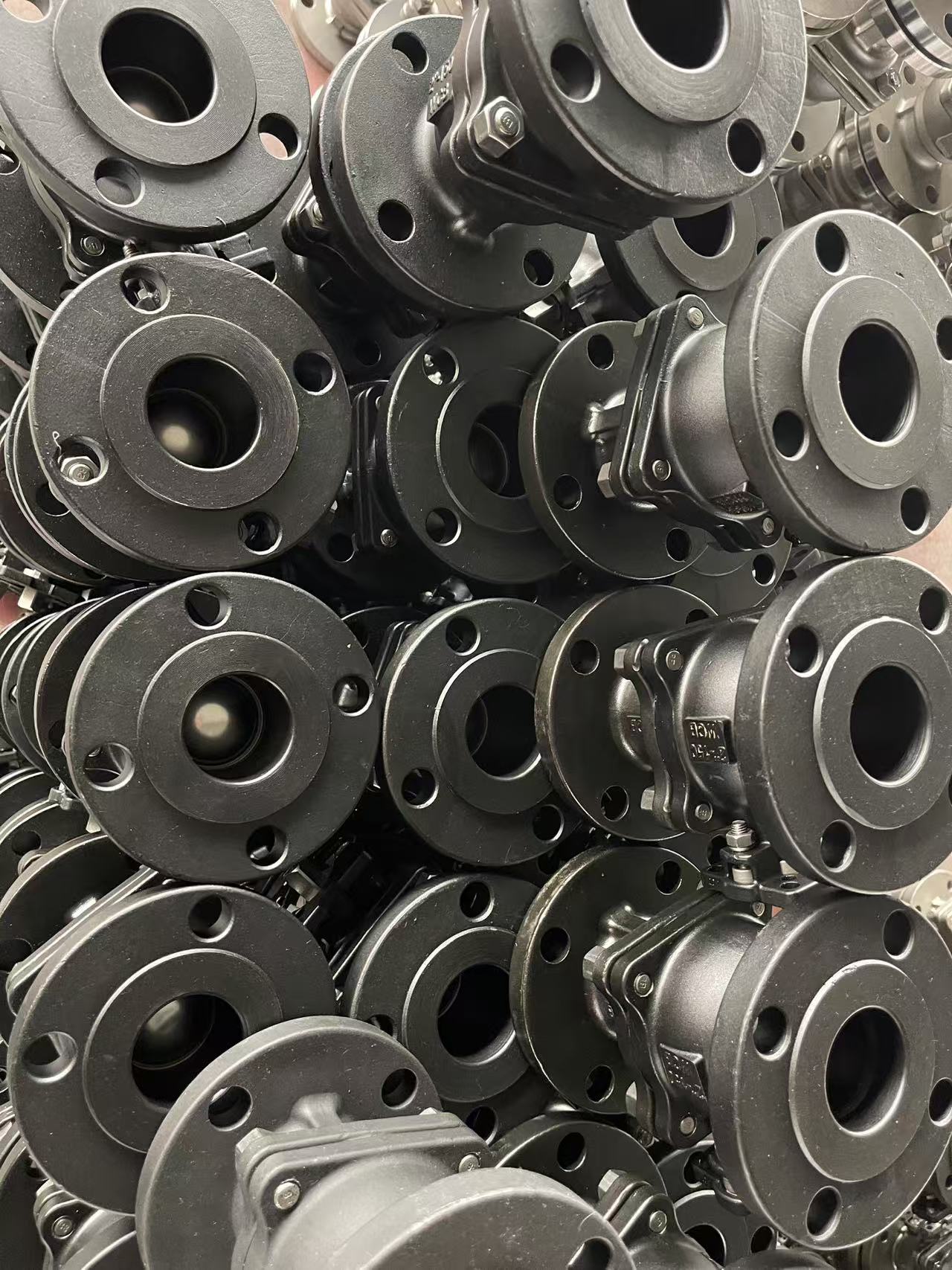

Features a high - platform structure, conforming to Chinese domestic standards for the chemical industry. The platform enables easy actuator installation (if needed later) and maintenance. The valve body is robust, with flanged connections meeting relevant domestic flange standards, ensuring stable pipeline integration.
2. Core Function
Primarily used for on - off control of media in chemical pipelines. With a simple 90° handle rotation, it quickly switches media flow, suitable for common chemical media like water, steam, and general chemicals, ensuring efficient process control.
3. Technical Specifications
| Item | Details |
|---|---|
| Body Material | WCB (carbon steel, common for chemical use) |
| Nominal Diameter | DN15 - DN300 (typical industrial sizes) |
| Pressure Rating | PN16 - PN40 (adapting to chemical pipeline pressures) |
| Temperature Range | - 29℃ - 200℃ (suitable for most chemical medium temps) |
| Seal Standard | Complies with domestic chemical valve leakage & sealing norms |
Widely used in chemical production lines, such as in pipelines for chemical liquid transfer, reaction tank feeding/discharging, and steam heating systems. It meets the chemical industry’s requirements for medium control reliability and corrosion resistance (material can be upgraded for harsher media).
5. Compliance & Quality
Designed and manufactured to comply with Chinese domestic chemical industry valve standards (e.g., related GB/T standards for ball valves). Undergoes strict factory tests (pressure, leakage) to ensure safety and durability in chemical environments, with quality traceability for materials and production.
