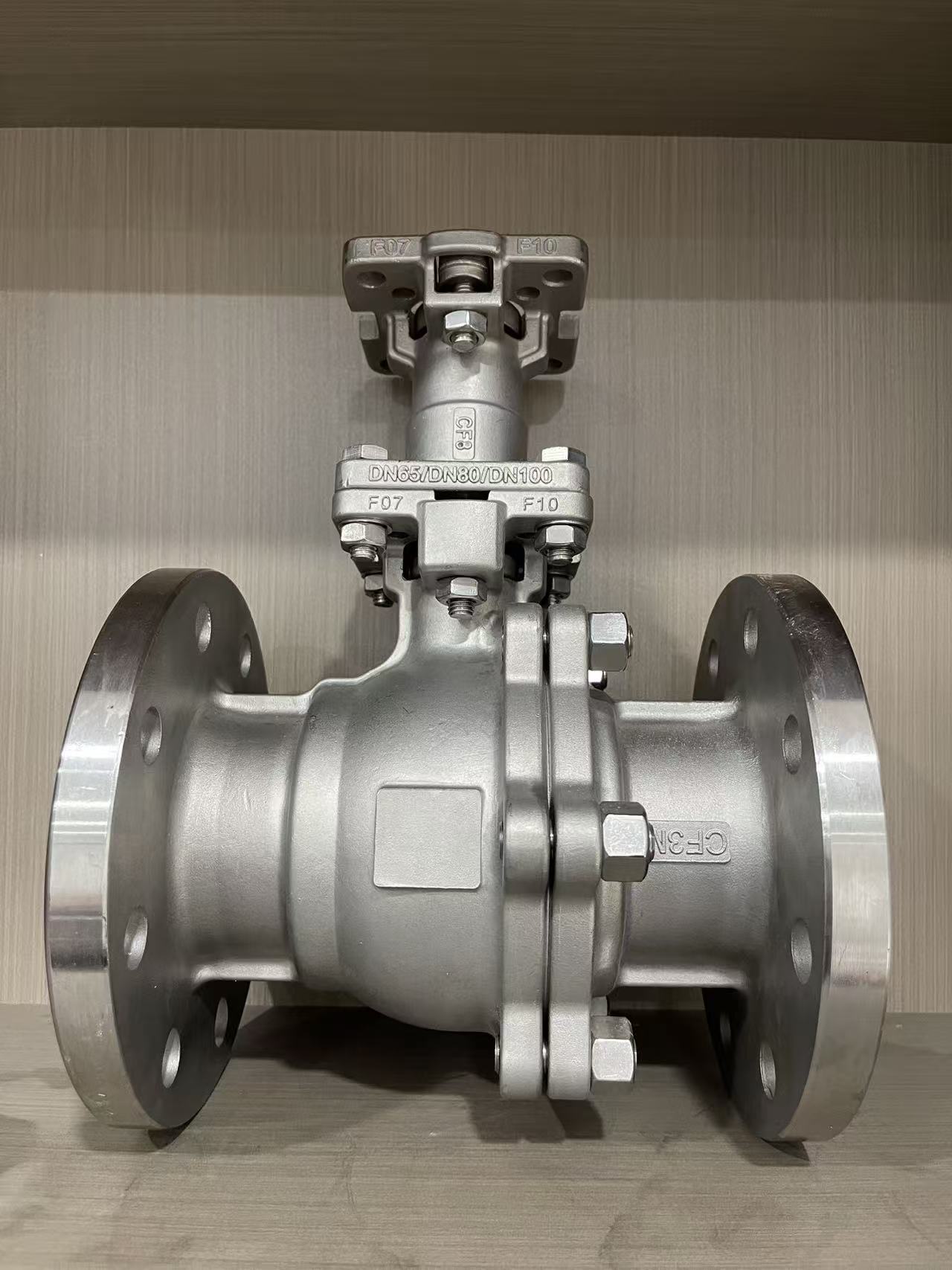

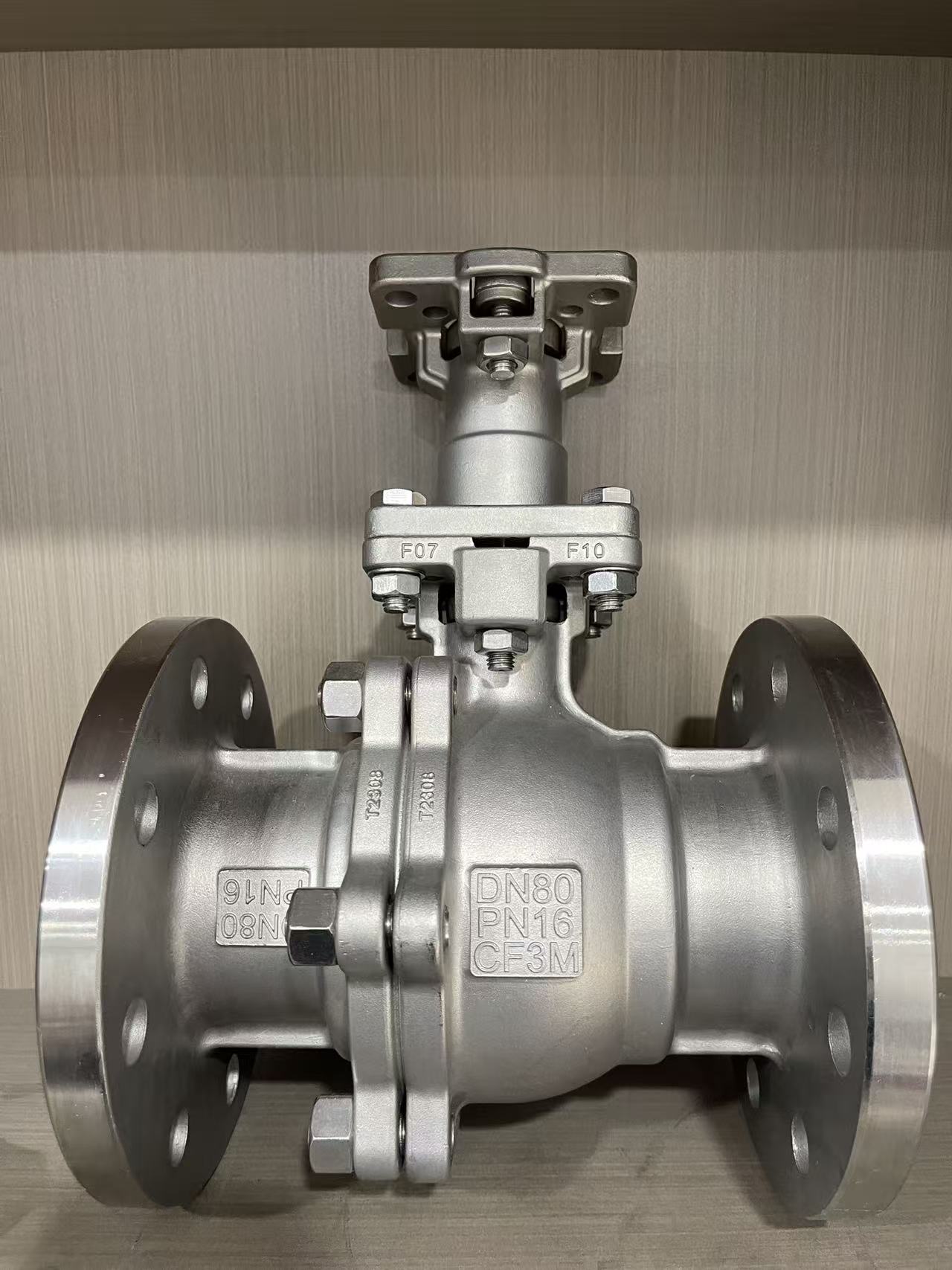

high-platform cast steel support flanged ball valve

Key components and features of a high-platform cast steel support flanged ball valve include:

1. Ball: The ball is the sealing element that controls the flow of the medium. When the ball is aligned with the flow, the valve is open, and when the ball is perpendicular to the flow, the valve is closed.

2. Seats: The seats are the rings on which the ball rests when the valve is closed, ensuring a tight seal. Seats are typically made from materials that can withstand the operating conditions of the fluid, such as polymers or metals.

3. Stem: The stem connects the ball to the actuator, allowing for the rotation of the ball to open or close the valve.

4. Actuator: The actuator is the mechanism used to operate the valve. This can be manual, such as a handwheel or lever, or automated, such as electric or pneumatic actuators.

5. Cast Steel Support Structure: The support structure is made from cast steel, providing a strong and stable platform for the valve body, which is particularly useful in large diameter or high-pressure applications.

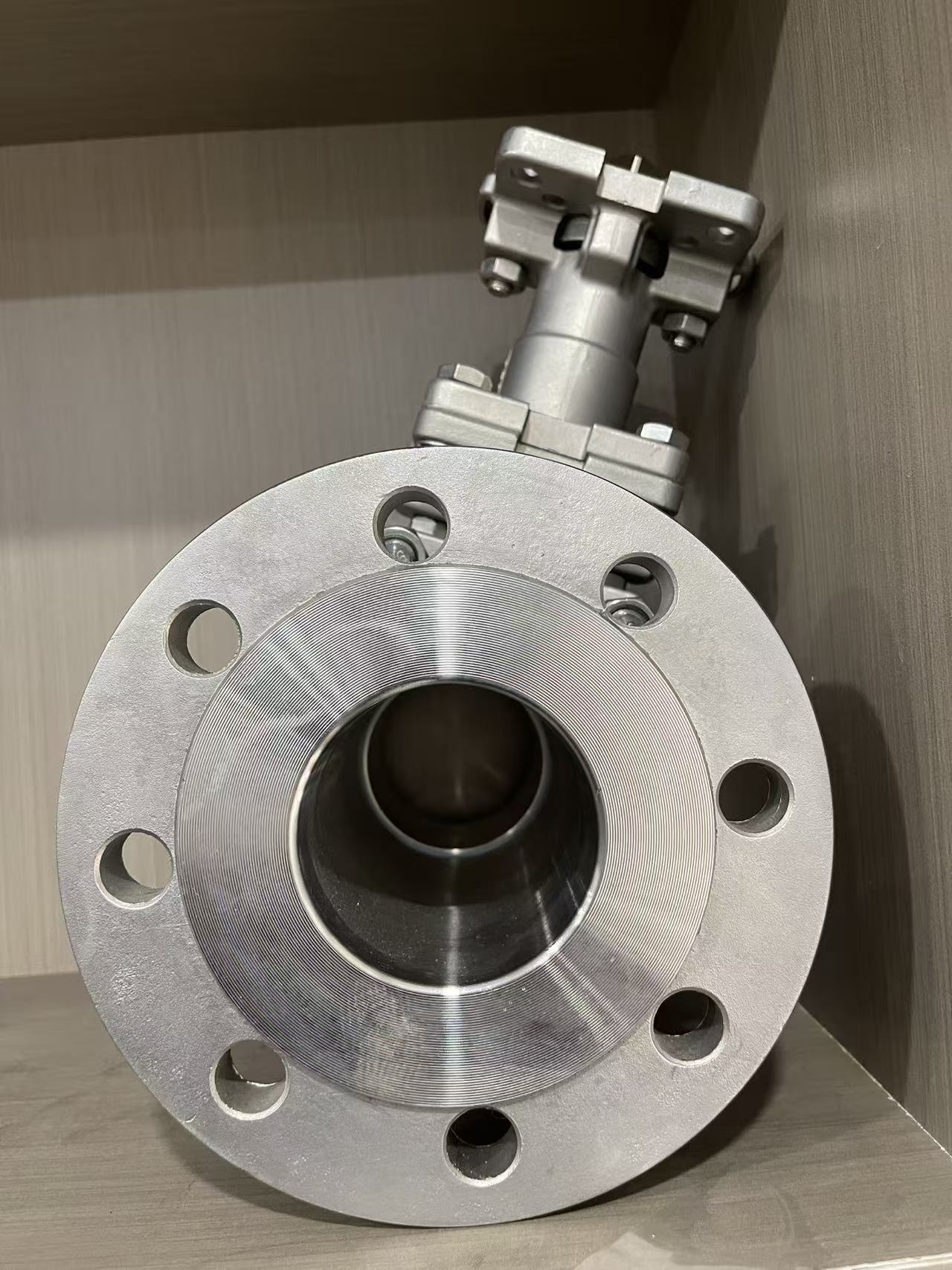

6. Flanges: The flanges are the connecting pieces that are bolted to the valve and the pipeline, providing a secure and leak-proof connection.

High-platform cast steel support flanged ball valves offer several advantages:

• Elevated Mounting: The high platform design allows for improved accessibility, making it easier to operate and maintain the valve.

• Robust Construction: The cast steel support structure ensures the valve can withstand high pressures and temperatures, as well as harsh operating conditions.

• Reliable Sealing: The design of the ball and seats ensures a reliable seal, preventing leakage and ensuring the integrity of the system.

• Reduced Installation Time: The flanged connections can simplify the installation process, reducing the time and cost associated with valve installation.

When selecting a high-platform cast steel support flanged ball valve, it is important to consider the pressure class, material compatibility, and size to ensure the valve is appropriate for the intended application. Proper installation and periodic maintenance are essential to ensure the valve operates effectively and reliably over its lifespan.
